Offshore Pipeline Counterweight Welded Mesh

Large Image : Offshore Pipeline Counterweight Welded Mesh

Product Details:

Place of Origin:	China
Brand Name:	Qijie
Certification:	pipeline reinforcement mesh
Model Number:	pipeline reinforcement mesh

Payment & Shipping Terms:

Minimum Order Quantity:	1000m2
Packaging Details:	paper carton
Delivery Time:	15-18days
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	1000m2/days

Chat Now

Detailed Product Description

Material:	Carbon Steel	Wire Diameter:	2 Or 2.5 Mm
Finish:	Galvanized	Standard:	ASTM 185, A82 Standard
Width:	180 Mm
Highlight:	Offshore Pipeline Welded Mesh , Offshore Pipeline Counterweight Welded Mesh , Pipeline Counterweight Welded Mesh

Offshore Pipeline Counterweight Welded Mesh

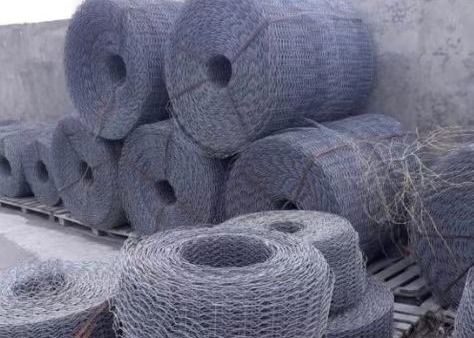

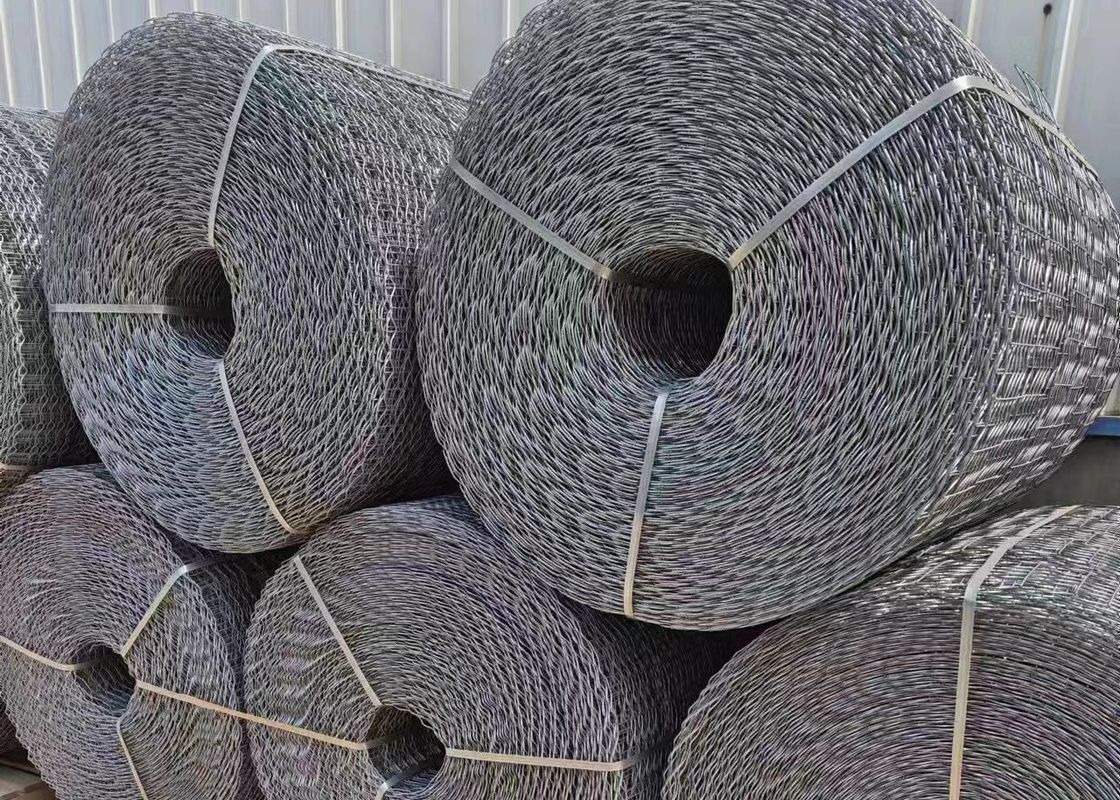

Offshore pipeline counterweight welded wire mesh is also called concrete weight coating mesh, Pipeline reinforced mesh, is a line wire crimped special welded mesh. It plays the role of reinforcement, counterweight and protection for offshore oil and gas pipelines.

Our most commonly used line wire crimped special welded mesh specifications are mainly divided into 4 types: CT-N, CT-T, CT-L and CT-W.

Offshore Pipeline Counterweight Welded Mesh 0

CT-N pipeline counterweight welded mesh

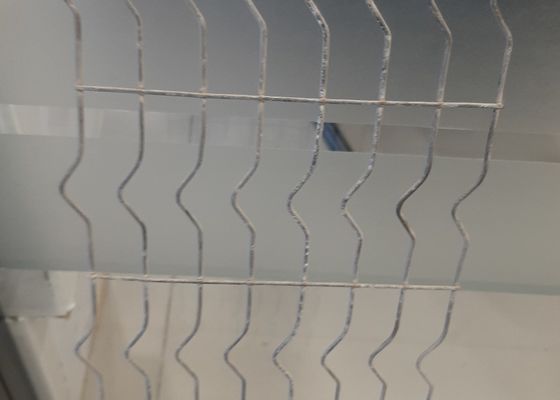

It is a low carbon steel wire for the reinforcement of concrete weight coated pipelines. The mesh includes 6 line wires that are deeply crimped between the cross wires. The 2-inch mesh with both sides between the line wires is intended for coating with an overlap of 1 inch.

Offshore Pipeline Counterweight Welded Mesh 1

CT-T pipeline counterweight welded mesh

It is a spot welded mesh made of galvanized low carbon steel wire for the reinforcement of concrete weight coated pipelines. The mesh includes 8 line wires that are deeply crimped between the cross wires.

Offshore Pipeline Counterweight Welded Mesh 2

CT-L pipeline counterweight welded mesh

It is a spot welded mesh made of galvanized low carbon steel wire for the reinforcement of concrete weight coated pipelines. The mesh is 92.4 mm instead of 67 mm between the cross wires.

Offshore Pipeline Counterweight Welded Mesh 3

CT-W pipeline counterweight welded mesh

It is a spot welded mesh made of galvanized low carbon steel wire for the reinforcement of concrete weight coated pipelines. The mesh includes 10 line wires that are deeply crimped between the cross wires.
