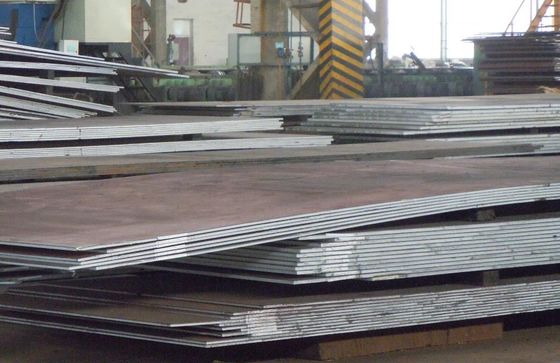

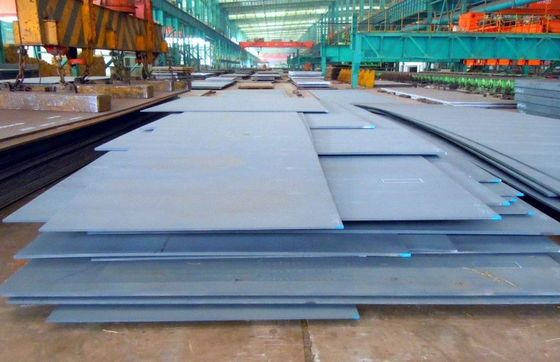

Weathering Metal Sheet Resistant Bridge ASTM A242 09cup A588 Corten Steel Plate

Large Image : Weathering Metal Sheet Resistant Bridge ASTM A242 09cup A588 Corten Steel Plate

Product Details:

Place of Origin:	China
Brand Name:	mild steel plate
Certification:	mild steel plate
Model Number:	mild steel plate

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Packaging Details:	pallets
Delivery Time:	15-18days
Payment Terms:	30%TT in advance, Balance before loading
Supply Ability:	100pcs

Contact Now

Detailed Product Description

Material:

Mild Steel Plate

Color:

MILD STEEL

Width:

1m/1.22m

Thickness:

0.5mm-6mm

Highlight:

Weathering Metal Sheet

Bridge Metal Sheet

ASTM A242 Metal Sheet

Weathering Metal Sheet Resistant Bridge ASTM A242 09cup A588 Corten Steel Plate

Our main products cover corten plate, wear resistant steel plate, boiler plate and ship plate. We can also offer the services of cutting and punching.

"15 years of steel production experience! Because professional, trustworthy!

Products	Corten Steel Plate
Standard grade	ASTM: Corten A; Corten B; A588Gr.A/Gr.B/Gr.C/ Gr.K; A242; A606 Type 4; A709 Gr 50W;

	EN10025: S235J0W; S235J2W; S355J0W; S355J2W; S355K2W; S355J0WP; S355J2WP; S355J2G1W; S355J2G2W; S355K2G1W, S355K2G2W;


	JIS G3114: SMA400AW; SMA400BW; SMA400CW; SMA490AW; SMA490BW; SMA490CW; SMA570W; SMA570P;


	JIS G3125: SPA-H; SPA-C;
	GB/T 4171: Q235NH; Q265GNH; Q310GNH; Q295NH; Q295GNH; Q355NH;Q355GNH; Q415NH; Q460NH; 1500NH; Q550NH;

	TB/T 1979: 09CuPCrNi-A; 09CuCrNi-B; 05CuPCrNi;
	Q/BQB 340: B460NQR; B490NQR; B480GNQR; B600GNQR;
Thickness	Cold Rolled 0.5-2mm Hot Rolled 2-300mm (2-100mm usually used)
Width	1000-3000mm (1000-2200mm usually used)
Length	1000-12000mm or as your request
Surface	Clean, finishing,blasting and painting according to customer requirement
Process	Hot-rolled, Controlled rolling, Normalizing, Annealing, Tempering, Quenching, N+T, Q+T, and other delivery states are available as required
Process
Certificate	API,ISO,SGS,BV,CE etc
Quality	MTC will be provided with goods, third part inspection is acceptable, for example BV,SGS.
Quality
Package	Standard export seaworthy package,suit for all kinds of transport,or as required.
Container Size	20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High)
Container Size	40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High)
Trade term	Ex-Work,FOB,CNF,CFR,CIF,etc
Application	Widely used in a variety of architectural and engineering structures,such as
	1.) metal constructions such as buildings,bridges,ships;
	2.) transmission tower, reaction tower;
	3.) lifting transportation machinery;
	4.) industrial furnace;boilers
	5.) container frame, warehouse goods shelves, etc

Corten Steel Plate Chemical Composition and Mechanical Properties
Grade	C	Si	Mn	P	S	Cr	Ni	Cu
CORTEN A	≤0.12	0.25-0.75	0.20-0.50	0.07-0.15	≤0.030	0.50-1.25	≤0.65	0.25-0.55
CORTEN B	≤0.16	0.30-0.50	0.80-1.25	0.03	≤0.030	0.40-0.65	0.4	0.25-0.40
	Yield Strength MPA			Tensile Strength MPA			Elongation %
Grade	Yield Strength MPA			Tensile Strength MPA			Elongation %
CORTEN A	≥355			470-630			≥20
CORTEN B	≥345			470-630			≥20

Grade	C	Mn	Cr	Si	N	S	Cu	P	Ni	V
A588GrA	≤0.19	0.80-1.25	0.40-0.65	0.30-0.65	≤0.010	0.05	0.25-0.40	0.04	≤0.40	0.01-0.10
A588GrB	≤0.20	0.75-1.35	0.40-0.70	0.15-0.50	≤0.010	0.05	0.20-0.40	0.04	≤0.50	0.01-0.10
A588GrC	≤0.15	0.80-1.35	0.30-0.50	0.15-0.30	≤0.010	0.05	0.20-0.50	0.04	0.25-0.50	0.01-0.10

Weathering Metal Sheet Resistant Bridge ASTM A242 09cup A588 Corten Steel Plate 0
