Doors And Windows Mosquito Net/Insect Net 18*16 Aluminum Alloy Window Screen

Large Image : Doors And Windows Mosquito Net/Insect Net 18*16 Aluminum Alloy Window Screen

Product Details:

Place of Origin:	china
Brand Name:	qijie
Certification:	ce
Model Number:	18x16mesh

Payment & Shipping Terms:

Minimum Order Quantity:	100rolls
Packaging Details:	paper carton
Delivery Time:	15-18days
Payment Terms:	30%TT in advance, Balance before loading
Supply Ability:	10000m2 per month

Contact Now

Detailed Product Description

Application:	Window Or Door	Place Of Origin:	Hebei, China
Screen Netting Material:	Aluminum	Material:	Aluminum
Hole Size:	13-24mesh	Length:	Normal 30-100m
Width:	Normal 0.6-2.5m	Feature:	Light Weight, Good Toughness
Sample:	Avaliable	Function:	Insect Resistant
Highlight:	18*16 Aluminum Alloy Window Screen , Mosquito Net Aluminum Alloy Window Screen , Insect Net Aluminum Alloy Window Screen

Doors and Windows Mosquito Net/Insect Net 18*16 Aluminum Alloy Window Screen

Aluminum window screen is woven from aluminum wire or aluminum-magnesium alloy wire with square opening mesh. So, aluminum insect screen is also called magnalium wire screen. Its natural color is silver white. And our aluminum window screen can be coated with epoxy coating to green, silver gray, yellow and blue, or with charcoal coated in black color.

Aluminum window screening has many advantages, such as at room temperature does not fall off, high temperature 120°C does not fade, anti-acid and anti-alkali, corrosion resistance, not react with oxidants, suitable for humid environment, not rust or mildew, light weight, good air and light flow, has good toughness and high strength.

Square opening aluminum insect screen is the most popular material used for window or door screening mesh, and screen enclosures against bugs and insects in hotel, restaurant, communal building and residential houses.

Specification of Aluminum Insect Screening:

**Al-Mg alloy and pure Al windows screens**
SWG	Wire Diameter (mm)	Mesh	Surface Treatment
29	0.345	14 × 14	Natural bright surface. Black epoxy coating. Black charcoal coated. PVC coated in different color.
30	0.315	14 × 14
31	0.295	14 × 14
32	0.274	14 × 14
32	0.274	16 × 14
33	0.254	16 × 16
34	0.234	18 × 14
35	0.213	18 × 16
36	0.193	18 × 18
36	0.193	20 × 20
37	0.173	22 × 22
38	0.152	24 × 24

Weave: plain weave.
Width: 0.6 m, 0.8 m, 1.0 m, 1.2 m, 1.5 m, 1.8 m, 2.0 m.
Roll length: 25 m, 30 m, 50 m.
Packing: each roll wrapped in plastic film and waterproof paper, 6/8/10 rolls wrapped in weaving bag, then put in cartons.

Aluminum insect screen mainly refers to magnesium insect screen, one of the most popular aluminum alloy materials we use for insect screening mesh. Aluminum alloy insect screen is durable screening, for wood window screens, fly screen doors and wood screen enclosures.

Aluminum insect screen mesh specification.

	Meshes Per Linear Inch	Diameter		Width of Opening
	Meshes Per Linear Inch	Inches	mm	Inches	mm
1	10 Mesh	0.02	0.508	0.08	2.03
2	14 Mesh	0.02	0.508	0.051	1.3
3	20 Mesh	0.016	0.406	0.034	0.86

Aluminum insect screen weave type and weave standard.

Weave Type	Plain Weave	Plain Weave
Standard weaving	ANSI / AWCI-01, 1992	ANSI / AWCI-01, 1992

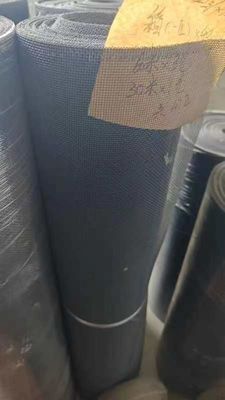

Doors And Windows Mosquito Net/Insect Net 18*16 Aluminum Alloy Window Screen 0

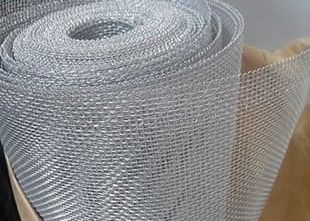

Doors And Windows Mosquito Net/Insect Net 18*16 Aluminum Alloy Window Screen 1
