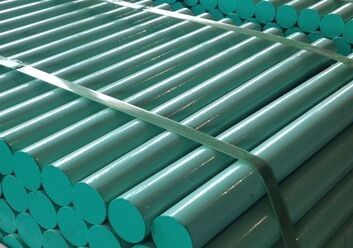

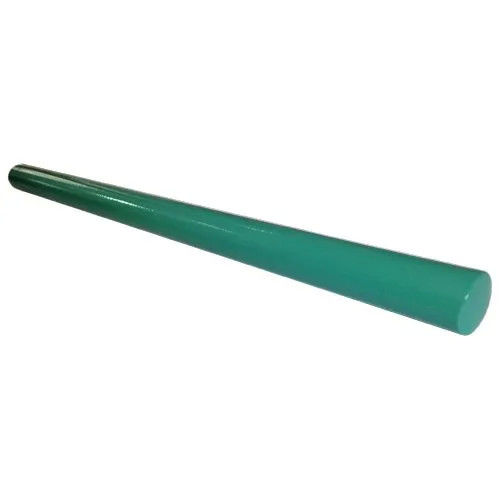

ASTM A615 Grade 60 Epoxy Coated Smooth Round Dowels

ASTM A615 Grade 60 Epoxy Coated Smooth Round Dowels
ASTM A615 Grade 60 Epoxy Coated Smooth Round Dowels ASTM A615 Grade 60 Epoxy Coated Smooth Round Dowels

Large Image :  ASTM A615 Grade 60 Epoxy Coated Smooth Round Dowels

Product Details:
Place of Origin: China
Brand Name: Qijie
Certification: Dowel bar
Model Number: Dowel bar
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Packaging Details: paper carton
Delivery Time: 7-10days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1tons/day
Detailed Product Description
Material: Q345b Diameter: 25mm
Length: 500mm

ASTM A615 GRADE 60 STEEL DOWEL BARS





we are  a leading manufacturer and exporter of Steel Dowel Bars that are being designed as per the national and international standard quality of raw materials. These ASTM A615 Grade 60 Steel Dowel Bars are used to carry out the transmission of load from one block to another, at the same time letting the axial thermal development alongside with the axis of dowel. These BS 4449 Epoxy Coated Dowel Bars are by and large made from plain round material, where they offer a hard-wearing and corrosion resisting elucidation to connections in tangible or other operational applications.



DOWEL BARS ARE USES / APPLICATIONS

  1. To transfer the load from one slab to its adjaacent slab such that two consecutive slabs move together and reduce impact loading developed by the slabs by their independent movement.
  2. To reduce joint faulting and corner cracking.
  3. To improve the performance of pavement joints.

ADVANTAGES OF DOWEL BARS:

  1. Reduce deflection and stresses.
  2. It increases the load-carrying capacity of slabs.
  3. It increases the initial pavement life.

dowel bar



Our Dowel Bars has number of benefits to offer such as they are available in galvanised, Epoxy Coated, Hot Rolled Plain, Epoxy Coated ASTM A1078 and BS 4449 Epoxy Coated as Per AASHTO M254 has wide-ranging and emergent sizes, durable and exclusive packing, etc. Meanwhile, these Bars can further be customized in terms of thicknesses and sizes as per the specific requirements given by our clients. Dowel bars are coated to be corrosion-resistant with fusion bonded Epoxy powder which is applied by electrostatic spray conforming to ASTM A775 / 775M and AASHTO M254. (all American standard)

dowel bar

Steel Dowel Bars Specification :

Standard : ASTM A615, ASTM A1078, ASTM A775, BS4449, AASHTO M254

Epoxy Coating Standard : ASTM A775 / A775M

Ends : Chamfering & Plain

Grade : ASTM A615 Grade 60, Grade 250

Length : 100mm to 6000mm



Mild Carbon Steel Dowel Bar
Product Coating Steel Grade Coated Standard Diameter (mm) Diameter (inches)
Dowel Bar Black(uncoated) BS4449-grade250, ASTM A615/A615M, A615 Gr60, Gr40, Grade500N, Q235B, SS400, S275JR, etc AISI, ASTM, BS, DIN, GB, JIS 16 ~ 50 5/8″~ 2″
Epoxy coated dowel bar Epoxy coated ASTM A1078 16 ~ 50 5/8“~ 2“
Galvanized dowel bar Galvanized BS EN ISO 1461:2009; AS/NZS 4680 16 ~ 50 5/8“~ 2“
