| Hole Shape: | Square, Rectangle | Width: | 1-3m |
|---|---|---|---|
| Hole Size: | 2.5cm-150cm | Material: | Black Or Galvanized Wire |
| Operation: | Fully Automatic | Control System: | PLC Touch Screen |
| Voltage: | 220V/380V/415V/440V | Welding Head Material: | High Chromium Copper |
GWC3300 straight bar steel mesh welding and forming machine
Technical Proposal and Quotation
Technical Proposal for GWC3300 Straight Bar Mesh Welding and Forming Machine
Purpose
The GWC3300 straight bar CNC steel welding mesh forming machine is a specialized equipment for building steel welding mesh. This machine utilizes multiple electrodes
The principle of resistance spot welding is to weld the longitudinal and transverse bars of the steel bars into a solid mesh according to the set requirements. Applicable steel bars for this machine
The raw materials can be cold-rolled ribbed steel bars, cold-rolled smooth steel bars, or hot-rolled ribbed steel bars.
This machine consists of a welding mechanism, a longitudinal and transverse reinforcement feeding mechanism, a mesh stepper mechanism, a net falling and conveying mechanism, and a pneumatic system

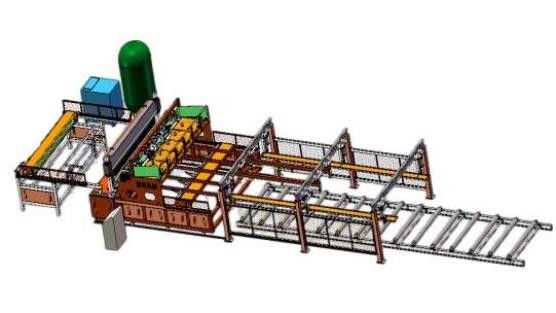

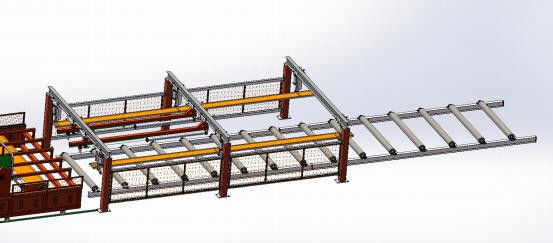

Steel bar welded mesh production line (products are constantly being updated, pictures are for reference only, subject to the actual product)
2, Selection criteria
JG/T5115-1999 "Steel Fabric Forming Machine"
GB/T1499-2002 "Welded Steel Fabric for Reinforced Concrete"
3, Main technical performance parameters
| Parameter Name | Unit | data | note | |
| Welding steel bar diameter | mm | Ф5- Ф 12 | ||
| Maximum width of mesh | mm | 3300 | ||
|
mesh size
|
Longitudinal bar spacing | mm | 100 ,150 ,200… (No need to change machines) | |
| Cross bar spacing | mm |
400 Stepless adjustable (30 different options for a single screen) |
||
| Number of solder joints | joints | 30 | Cylinder pressurization | |
| Welding frequency | times/min | 50--90 | ||
| Maximum welding capacity | mm | ￠ 12+￠ 12 | ||
| Welding transformer capacity | KVA | 160×16 | ||
| Mother transformer capacity | KVA | 400 | ||
| Temporary load rate of welding transformer | 30% | |||
| supply voltage | V | 380 | ||
| Current frequency | Hz | 50 | ||
| Pneumatic system working pressure | Mpa | ≥0.8 | ||
2
|
cooling water pressure P |
Mpa | 0.2≤P<0.3 | |
| Compressed air consumption | M3/min | ≥3 | |
| Loading method of longitudinal reinforcement |
Straightness and straightness
≤3mm/ 1000mm |
||
| Horizontal bar material cutting method |
Straightness and straightness
≤3mm/ 1000mm |
||
| Overall dimensions (length × wide × High) | m | 43×5. 1 ×2.3 | |
| Total weight of equipment | T | ~22 |
