Wire 10.5 2350mm Length EN 10138-2 R1 Profile With Thread For Optimal Strength And Durability

Large Image : Wire 10.5 2350mm Length EN 10138-2 R1 Profile With Thread For Optimal Strength And Durability

Product Details:

Place of Origin:	China
Brand Name:	Qijie
Certification:	CE
Model Number:	10.5mm

Payment & Shipping Terms:

Minimum Order Quantity:	10tons
Packaging Details:	bulk
Delivery Time:	15-18days
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	100tons

Contact Now

Detailed Product Description

Material:	Steel	Wire Diameter:	10.5mm
Length:	2350 Mm	Breaking Load:	136 KN
Elongation At Maximum Load:	3.50%	Modulus Of Elasticity:	205 KN/mm² +/- KN/mm²
Tensile Strength:	1570 N/mm²	Email:	Devin@industrialmetalmesh.com
Whatsapp:	+8615369013183
Highlight:	Thread Wire , 2350mm Length Wire , EN 10138-2 R1 Wire

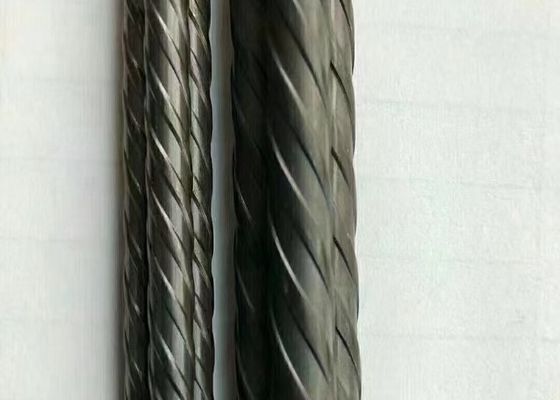

Wire Ø10.5 - 1570 R1 profile with thread (EN 10138-2)

Wire Ø10.5 - 1570 R1 profile with thread (EN 10138-2)

 Diameter: 10.5 mm

 Length: 2350 mm (+/- 2 mm)

 Characteristic Tensile Strength: 1570 N/mm²

 Nominal Cross-sectional Area: 86.6 mm² +/-2%

 Characteristic Breaking Load: 136 kN

 Characteristic Maximum Tensile Load: 118 kN

 Fp 0.2/Fm: 0.86 (min)

 Total Elongation at Maximum Load: 3.50%

 Relaxation Level: 2.50%

 Modulus of Elasticity: 205 kN/mm² +/- kN/mm²

 Profile : 0.16 — 022 mm

 Thread : two (02) sides
