| Width: | 2500mm | Punching Times/Min: | 55 |
|---|---|---|---|
| Motor Power( KW): | 15 |

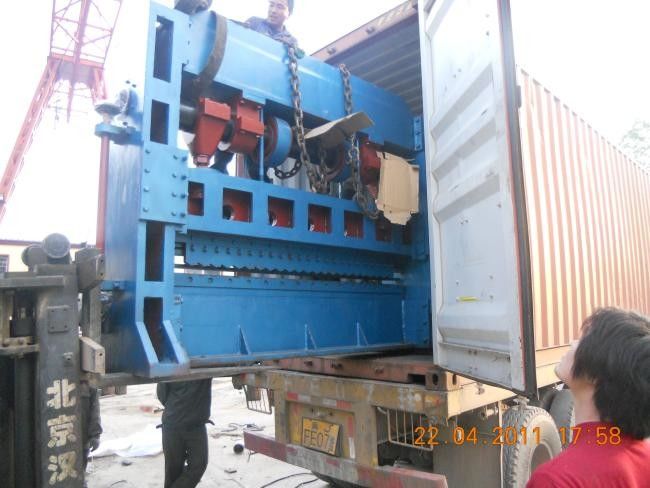

Expanded metal mesh making machine by sheet thickness 2.0 mm model DZ-JQ25-45
Expanded metal mesh machine can produce expanded metal mesh which is widely used in construction, hardware, window and door, machine protection etc. Used with concrete in buildings and construction, maintenance of equipments, making of arts and crafts, covering screen for first class sound case. Also fencing for super highway, studio, highway. Heavy expanded metal can be used as step mesh of oil tanks, working platform, corridor and walking road for heavy model equipment, boiler, petroleum and mine well, automobile vehicles, big ships.
Techincal parameter
| Type | JQ25-6.2T | JQ25-16T | JQ25-25T | JQ25-40T | JQ25-63T | JQ25-100T |
| Material thickness(mm) | Max1.0 | Max1.0 | Max1.5 | Max3.0 | Max4.0 | Max6.0 |
| Net Width(mm) | Max600 | Max1000 | Max1250 | Max1500 | Max1500 | Max2500 |
| Punching Times/Min | 300 | 160 | 160 | 80 | 67 | 55 |
| Feeding Distance(mm) | 0-10 | 0-10 | 0-10 | 0-10 | 0-20 | 0-20 |
| Length of Mesh(mm) | Max20 | Max25 | Max40 | Max80 | Max200 | Max200 |
| Motor Power( KW) | 2.2 | 3.2 | 4.0 | 11 | 11 | 15 |
| Weight( T) | 0.95 | 2 | 3 | 6 | 10 | 12 |
| Overal Dimension(mm) | 950x570x1780 | 1800x1320x1550 | 1940x1600x2010 | 2870x990x2140 | 2400x3500x2300 | 3600x2500x3000 |
we also can make the machine according to the client's requirment
