MZP Putanka Wire Mesh Barrier Defense Network 10x10x1.4m

Barrier Defence Network Putanka Mzp Complete Set of Mzp Mesh

Use: This is a kind of volume fence. It is made of 0.5-0.9 mm metal wire wound into a loop (steel wire according to GOST 7372-79).
The wire mesh can effectively block the path of infantry and vehicles (wheeled and tracked). You can't get out of a metal ring on your own.
The enemy could not enter his territory, as if he were trapped. The wire is wrapped around the wheel or track base to prevent the chassis from rotating.

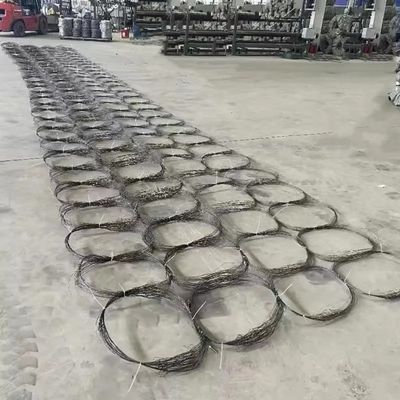

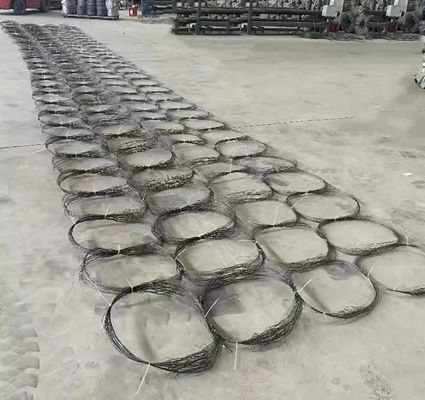

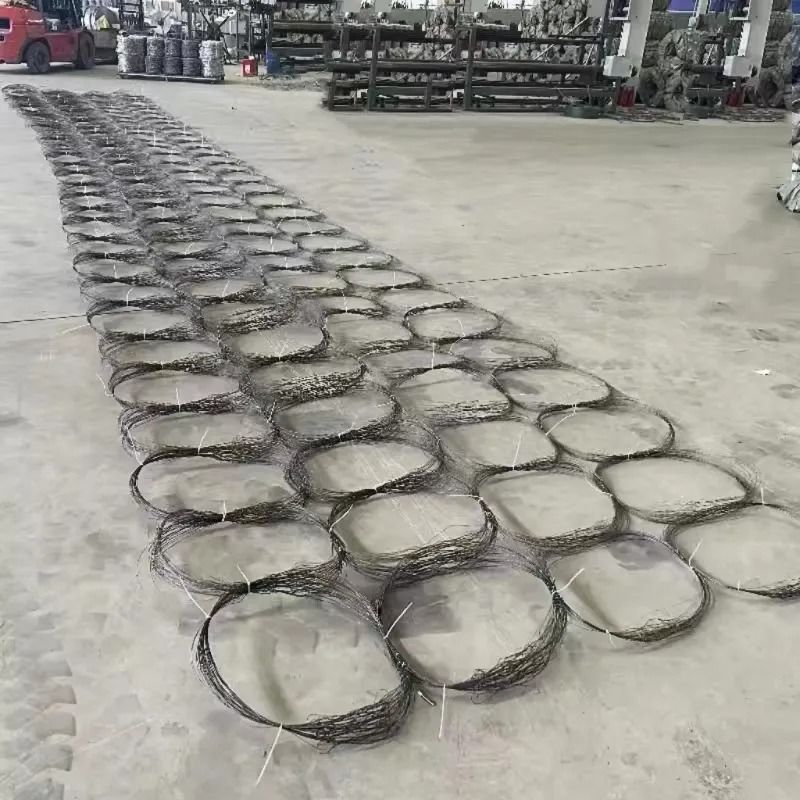

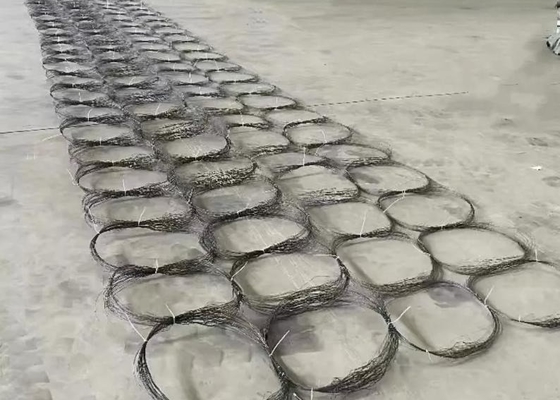

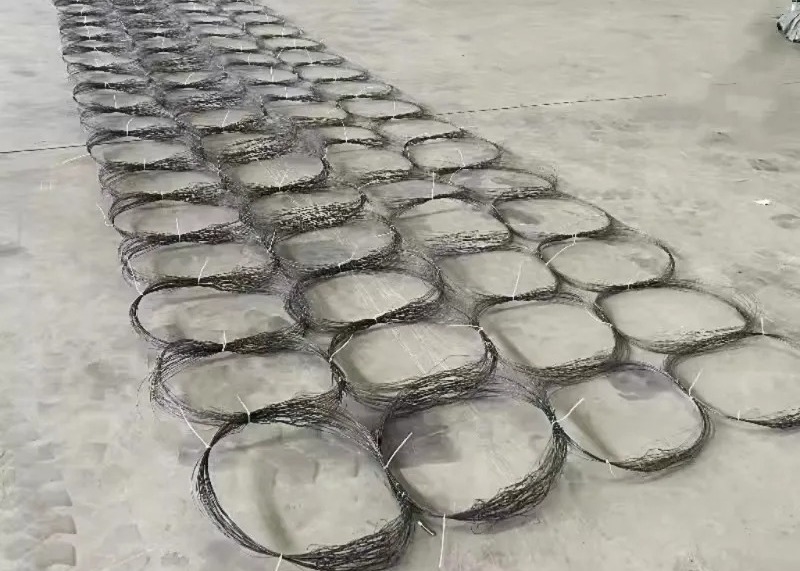

Style: The wire ring connection will form a four-layer space grid with a height of 1.4 meters, a length of 10 meters and a width of 10 meters. The kit consists of 40 connecting rings with a diameter of 0.8 mm annealing wire manufactured as standard GOST 3282-74 and 40 metal posts (25 cm long). The folding size is 1.2 x 0.6K 0.12m. The bottom end of the net is fixed to the ground with metal piles, which are driven into the net every 2 meters on all sides. The wire mesh is spliced together at the top and bottom every 1 meter with connecting rings or smooth wire.

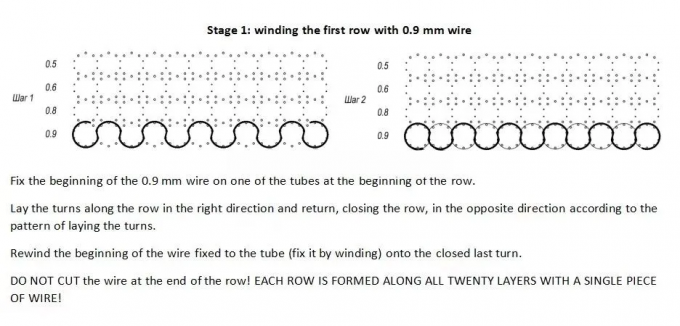

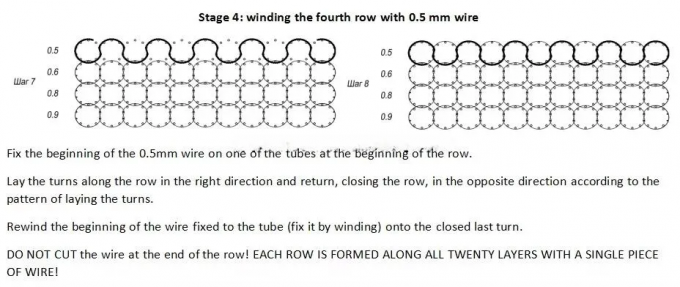

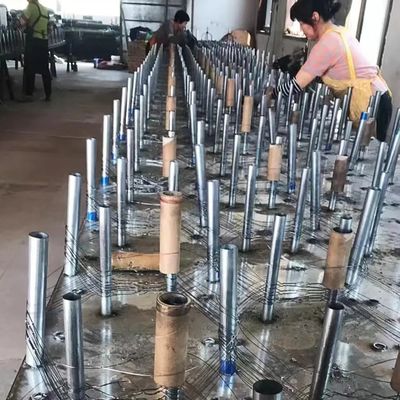

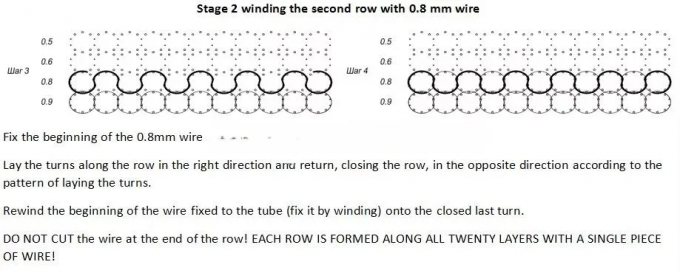

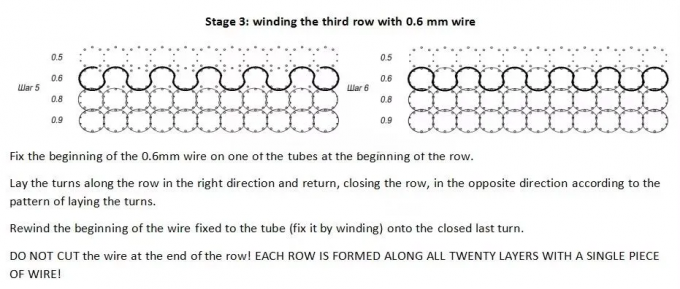

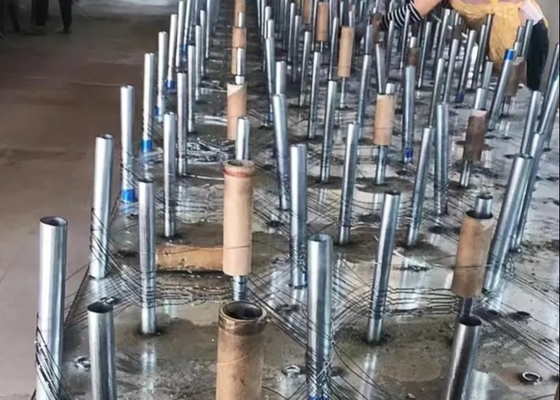

-MZP is formed from twenty layers -each layer consists of four rows of rings -each row is formed from wire of a certain section, all twenty layers -wire from the spools is fed to each row, fed continuously throughout all layers!



Technical barriers are designed for

※ Stopping the advance of the attacker;

※ Slowing down his maneuver;

※ Causing him losses in life and equipment;

※ Creating mainly good conditions for the security forces to detain or eliminate the violator.

How Putanka Wire Tangled Net Work ?

The rings of tangled wire are wrapped around the wheels, preventing them from spinning. If someone jumps over the fence, the MZP gets confused on its feet, preventing it from passing further. There is no way to free yourself.

The main task of the wire tangle is to immobilize people and transport on the site, and not to protect the fence from climbing. For better protection of the fence itself, we recommend additionally installing Egoza barbed wire or Jowa barbed wire on the fence.

What happens when you hit an inconspicuous obstacle ?

If a person tries to go through into the territory, he gets confused in it. There is no way to get out of the confusion without outside help. Therefore, the offender remains safely waiting for the guard on the spot.

When an armored vehicle or tank passes, the vehicle wraps around the wheels and turns into a pile of metal on the chassis, preventing it from moving further. And it’s difficult to remove such a gift from the wheels.

Installation of an inconspicuous wire network

The Putanki package is deployed by 3 people in less than 20 minutes. When it is installed in the path of a possible intruder, a volumetric inconspicuous network 5 meters wide and 1.4 meters high is formed. Each package protects at least 10 meters of perimeter.

MZP putanka is installed by 4-8 people on the ground, on a fence, wall, roof of a building or structure.

In the lower tier there are garlands with a larger wire diameter.

The lower rings of an inconspicuous obstacle are attached to the ground with brackets and other devices every 1-2 meters along the perimeter of the barrier.

The upper edge of an inconspicuous wire net must be fixed to stakes to add volume and improve barrier properties.

NOTE The tangle unfolds once. It is impossible to assemble the wire back into the rings, so it is important to perform all the steps correctly from the very beginning.

The main advantages of invisible wire obstacle:

※ Inconspicuous in the territory;

※ Several types of installation are possible: in the plane of the territory, in the fence, in the wall and also on the roof of the structure;

※ Considered an insurmountable obstacle in the line of movement of persons, wheeled as well as crawler and wheeled equipment;

※ Guarantees operational formation within the protection boundary;

※ Low cost of the package.
