Inconspicuous Wire Barrier MZP Putanka 10x5x1.4m Galvanized Carbon Wire

Large Image : Inconspicuous Wire Barrier MZP Putanka 10x5x1.4m Galvanized Carbon Wire

Product Details:

Place of Origin:	CHINA
Brand Name:	QIJIE
Certification:	sgs
Model Number:	putanka wire

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Packaging Details:	bulk, pallets
Delivery Time:	15-18days
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	1000pcs

Contact Now

Detailed Product Description

Material:

Steel

Wire Diameter:

0.5/0.6/0.8/0.9mm

Perimeter:

Highlight:

galvanized carbon wire mesh

inconspicuous wire barrier mesh

MZP putanka wire mesh

Inconspicuous Obstacles - Putanka MZP

Description of the minimum wage of confusion.

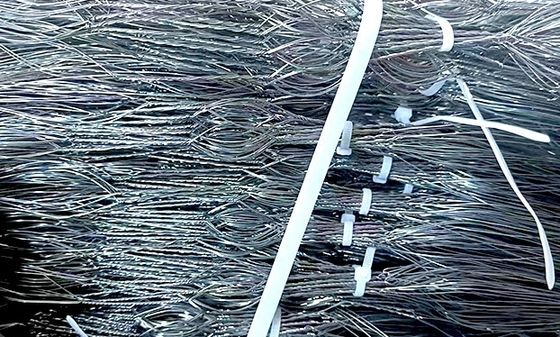

Inconspicuous Wire Barrier MZP Putanka 10x5x1.4m Galvanized Carbon Wire 0
Inconspicuous obstacle (inconspicuous wire net, MZP, MZP putanka, putanka ) - a three-dimensional barrier made of carbon wire rings. The wire is very thin, so it is almost invisible. Refers to engineering non-explosive containment barriers.
The task of the MZP of the muddle is to prevent it from approaching the object. A person falls into a trap of rings and, in most cases, will not be able to get out of it on their own. It takes a lot of time to cut a passage in the barrier.
An inconspicuous obstacle ( putanka ) is a serious obstacle for wheeled and tracked vehicles. Wire rings are wound around the wheels or tracks and stop the wheels from spinning.

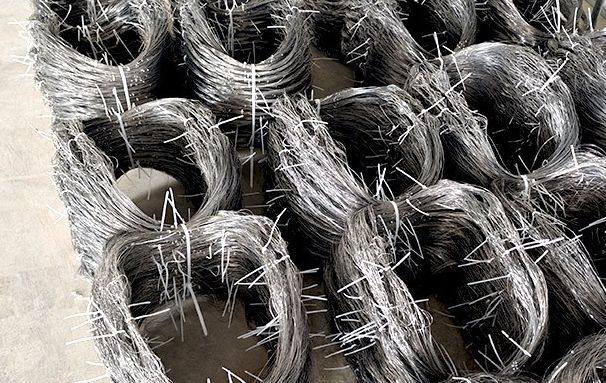

Inconspicuous Wire Barrier MZP Putanka 10x5x1.4m Galvanized Carbon Wire 1
MZP - a four-tiered network of ring garlands. It is installed in the form of a parallelepipped.
Rings are made from galvanized or non-galvanized carbon wire GOST 7372-79 with a diameter of 0.5; 0.6; 0.8 and 0.9 mm. Ring garlands are interconnected by wire twists of annealed wire with a diameter of 0.8 mm (GOST 3282-74). Pegs for fastening, rings for them are made from low-carbon wire .

Parameter	size
Unfolded dimensions	10101.4m
Wire diameter/number of garlands	0.9 mm / 20 pieces 0.8 mm / 20 pieces 0.6 mm / 20 pieces 0.5 mm / 20 pieces twist - 0.8 mm
Folded dimensions	1.2x0.6x0.8 m
Package weight without rings and peg	28kg
Complete set of the MZP package with rings and pegs	40 pieces

Technical characteristics of an inconspicuous wire network (mess):

Parameter	Meaning
Unfolded dimensions	10x5x1.4 m
Wire diameter / number of garlands;	0.9 mm / 20 pieces 0.8 mm / 20 pieces 0.6 mm / 20 pieces 0.5 mm / 20 pieces twist - 0.8 mm
Folded dimensions	1.2x0.6x0.8 m
Package weight without rings and peg	12 kg
Complete set of the MZP package with rings and pegs	40 pieces

How much space does PZP Putanka take in a car body?

Here are the measurements of the batch of MZP Putanka (20 sets):

	MZP 20 sets	Rings and pegs
Length, m	0.98	0.2
Width, m	0.68	0.4
Height, m	0.75	0.4
Volume, m 3	0.4998	0.032

20 sets will take up a volume of 0.5318 m3 (0.026 m3/set).
The appearance of the fence, pegs and rings may differ from that on the site, depending on the equipment on which this batch is produced.
If you need to buy an inconspicuous obstacle of a specific appearance, then give written requirements for the type of confusion.

Inconspicuous Wire Barrier MZP Putanka 10x5x1.4m Galvanized Carbon Wire 3
