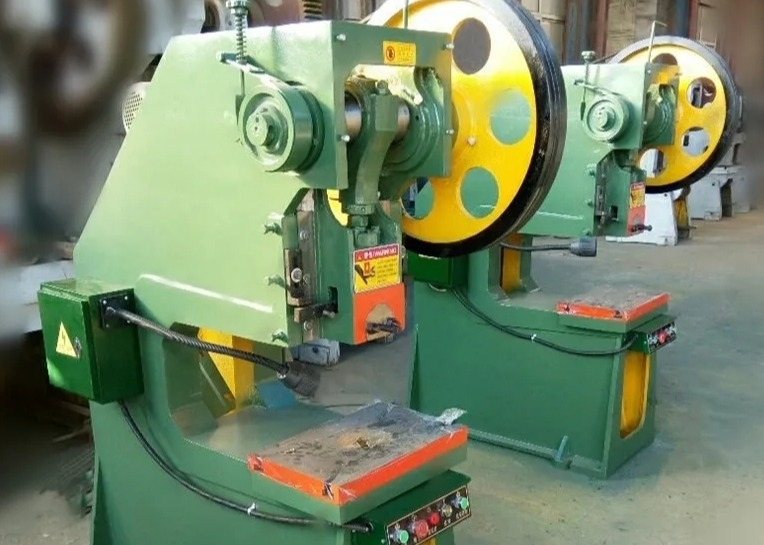

J23-40t Open Tilting Punching Power Press Machine

Standard Type Open Tilting J23-40t Punching Power Press Machine​

The Machine of Whole structure:
1. C- frame provides maximum rigidity and minimum deflection for accurate parts and long tool life.
Steel-welded frame, high rigidity and less deformation Compact. Thick plates and large columns provide
you with the stable platform you need for your demanding application.
2. Wide body frame eliminating vibration for improved IDE life and machine, which means economical
and practical. Operation space is wide, and the movable bolster could be moved out of frame to set the die. The structure is simple and
the appliance is also beautiful.
3. High accuracy, high efficiency, simple and convenient operation, good performance, favorable price and best service.

Transmission control and brake systems:
1. Use the combine of dry friction clutch and brake pneumatic, rigid interlocking, reliable piece of friction material semimetallic friction
material SMFM88, less pollution, long life. With the transfer torque, rotational inertia is small, smooth transmission, flexible operation,
convenient of installation and maintenance
2. Die height adjustment of slider with manual mode, the scale display. Extended by four
triangular rail, easy adjustment.
3. Use double safety valve to ensure the accurate implementation of the clutch instruction.
4. Electrical control is installed PLC, 8 group cam controller, reliable action.
5. Electrical control adopts Omron PLC for centralized control, improved machine reliability
6. Proximity switch with 8 groups consisting of Schneider cam controller, reliable synchronization detection and monitoring.
7. Machine is with both hands button and foot switch to achieve continuous, single and inching practices.
8. Can move the RAM up slowly, which allows the operator to control Mold adjustment conveniently.

RAM adjustment and Structure:
1. Adjustable stroke machine, slide stroke to achieve a certain level within the range of adjustable, body steel plate welded structure,
the whole body is tempered, use the secondary transmission, the transmission part of the crankshaft horizontal Placement, flywheel
and gear are the external open style, easy maintenance.
2. Slider is a cast box structure and rigid. Collapse of the sliderstyle installation of pressure overload protection device, simple struct
ure, if the slider overload,the fuse collapse is damaged, then protect the machine tool and die from damage.

Packing Detail:
Each mechanical punching machine with plastic film package first, then placed in a wooden case, wooden case with a foam filling.
We loaded the truck with heavy trucks for loading the cargo to the harbor terminal.At the dock we pack the goods in containers
and ship them abroad.
Delivery Detail:
Shipped in 30 days after payment
