Epoxy Coated FULL THREAD BAR 32MM PSB930

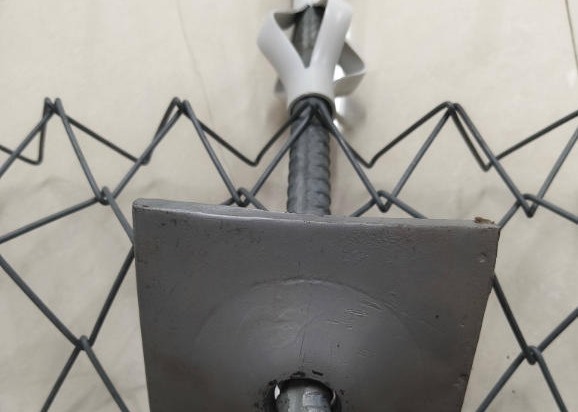

Large Image : Epoxy Coated FULL THREAD BAR 32MM PSB930

Product Details:

Place of Origin:	China
Brand Name:	Qijie
Certification:	Anchor Plate
Model Number:	Anchor Plate

Payment & Shipping Terms:

Minimum Order Quantity:	150pcs
Price:	Discuss
Packaging Details:	paper cartons
Delivery Time:	15-18days
Payment Terms:	L/C, T/T
Supply Ability:	150pcs

Contact Now

Detailed Product Description

Material:

Steel

Application:

Anchor Plate For Slope

Technique:

Perforated

Highlight:

epoxy coated full thread bar

32mm psb930 threaded bar

metal wire mesh threaded rod

epoxy coated Threadbar Anchor System

1 Specification:

Threadbars, which ensure ease of coupling and stressing. The wide range of capacities (up to 4500 kN) enable threadbar anchors to be used for many applications.

Typical section lengths range from 6 to 12 meters. Where multiple short sections are required, the Anchor System may be more suitable.

Steel Grade	Yield Strength ReL(RP0.2) MPa	Tensile Strength Rm, MPa	Elongation at failure A/%	Uniform Elongation Agt/%	Strssel Relaxation
Steel Grade	Yield Strength ReL(RP0.2) MPa	Tensile Strength Rm, MPa	Elongation at failure A/%	Uniform Elongation Agt/%	Original Stress	Relaxation Rate Afteer 1000h r/%
PSB785	≥785	≥980	≥7	≥3.5	0.8R	≤3
PSB830	≥830	≥1030	≥6
PSB930	≥930	≥1080	≥6
PSB1080	≥1080	≥1230	≥6
PSB500	≥500	≥≥630	≥10	≥2.5

Epoxy Coated FULL THREAD BAR 32MM PSB930 0

1)Quickly installed, easily grouted
Rock bolt is in many ways a typical combination mechanical bolt, installed as a temporary rock support and later grouted to become permanent. But there are important differences. It’s quick and easy to install, simple to grout even with varying consistency and the polypropylene sleeve seals the bolt against corrosion.

Epoxy Coated FULL THREAD BAR 32MM PSB930 1

Unique corrosion protection
The rock bolt surface can be hot dip galvanized with zinc thickness ≥80um.

Epoxy coated threaded bars , thickness ≥80um or higher 220um, 280um.

Full accessories are available: .

Bearing plates with angle compensation, different finishes, architectural features.
Borehole spacers : lantern or skid
Tubes for borehole grouting (bottom up)
Coupler forks for suspending sections within the borehole

Epoxy Coated FULL THREAD BAR 32MM PSB930 3

Epoxy Coated FULL THREAD BAR 32MM PSB930 4

Epoxy Coated FULL THREAD BAR 32MM PSB930 5

Epoxy Coated FULL THREAD BAR 32MM PSB930 6

Application

geotechnical, soil nailling,rock bolts,ground anchors,form work,reinforcement,post-tension system,bridge ,micro piles,mining and tunneling ect.
