Stainless Steel Flat Flex Wire Mesh Conveyor Belt

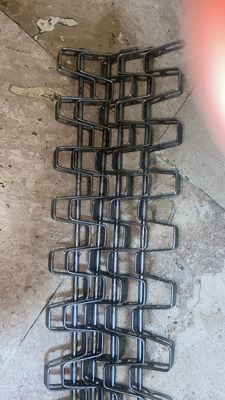

Large Image : Stainless Steel Flat Flex Wire Mesh Conveyor Belt

Product Details:

Place of Origin:	China
Brand Name:	Qijie
Certification:	sgs
Model Number:	flat flex conveyor belt

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	Discuss
Packaging Details:	paper cartons
Delivery Time:	15-18days
Payment Terms:	L/C, T/T
Supply Ability:	1500pcs

Contact Now

Detailed Product Description

Material:

Stainless Steel

Thickness:

1.0mm

Highlight:

stainless steel conveyor belt

flat flex wire mesh

metal wire mesh belt

Stainless Steel Flat Flex Wire Mesh Conveyor Belt

Flat wire conveyor belt, constructed of cross rods and flat metal strips, are made out of thousands of metal "U" shapes that are riveted together. They are best for situations that require a solid, flat surface that promotes maximum air circulation. Excellent fluid drainage as well as ease of cleaning. Meanwhile, they are easy to maintain just replacing the section that is damaged or worn down. They are used in some of the following applications: food processing, canning, baking, freezing, agricultural applications, as well as Parts washing, drying, cleaning, painting, transferring; also used as matting and drag mats.

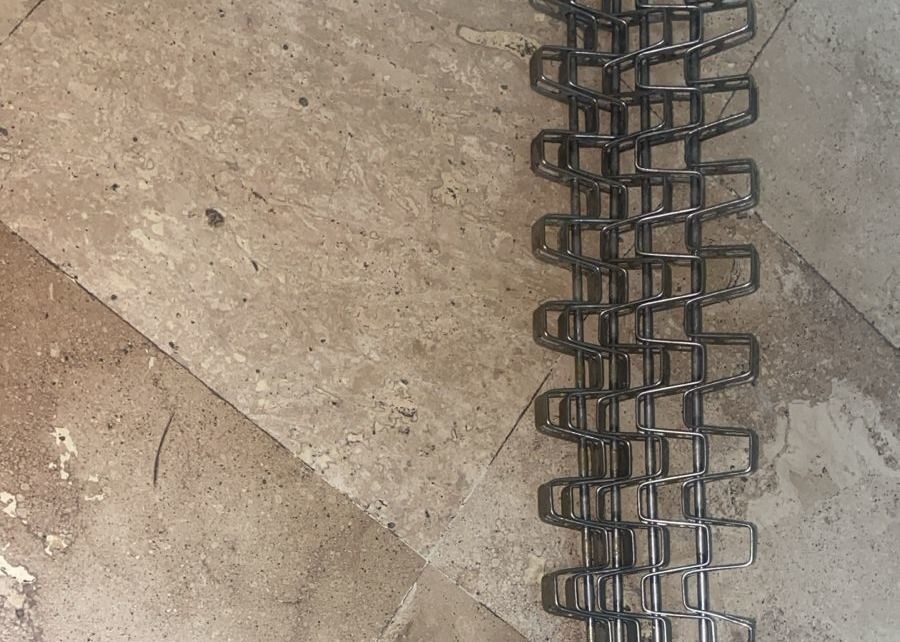

Stainless Steel Flat Flex Wire Mesh Conveyor Belt 0

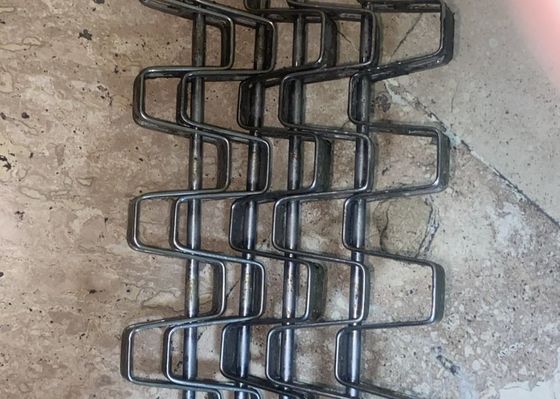

Stainless Steel Flat Flex Wire Mesh Conveyor Belt 1

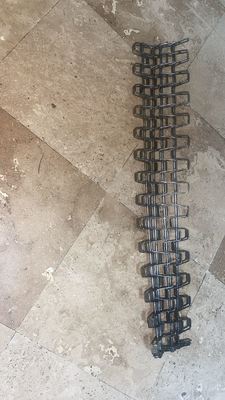

Stainless Steel Flat Flex Wire Mesh Conveyor Belt 2

Styles	Types	Mesh size	Belt width	Cross rod diameter	Flat strip (Height × Thickness)	Tension (max)	Approx. weight
Standard duty & clinched edge	CG-C1	1" × 1"	4.5" to 240"	0.105"	3/8" × .046"	480 lbs./ft	1.85 lbs./square feet
	CG-C2	½" × 1"	4.125" to 240"	0.105"	3/8" × .046"	660 lbs./ft	2.20 lbs./square feet
	CG-C3	½" × 1"	4.125" to 240"	0.105"	3/8" × .046"	660 lbs./ft	2.50 lbs./square feet
	CG-C4	¾" × 1"	4.5" to 240"	0.12"	3/8" × .046"	550 lbs./ft	2.00 lbs./square feet
Standard duty & welded edge	CG-W1	1" × 1"	3" to 240"	0.105"	3/8" × .046"	480 lbs./ft	1.85 lbs./square feet
	CG-W2	½" × 1"	3.25" to 240"	0.105"	3/8" × .046"	660 lbs./ft	2.20 lbs./square feet
	CG-W3	½" × ½"	3" to 240"	0.105"	3/8" × .046"	750 lbs./ft	3.25 lbs./square feet
	CG-W4	½" × 1"	3.25" to 240"	0.12"	3/8" × .046"	660 lbs./ft	2.50 lbs./square feet
Heavy duty & clinched edge	CG-C1	1" × 1"	10" to 192"	0.192"	1/2" × .062"	1350 lbs./ft	3.55 lbs./square feet
Heavy duty & clinched edge	CG-C2	½" × 1"	10" to 192"	0.192"	1/2" × .062"	1750 lbs./ft	3.55 lbs./square feet

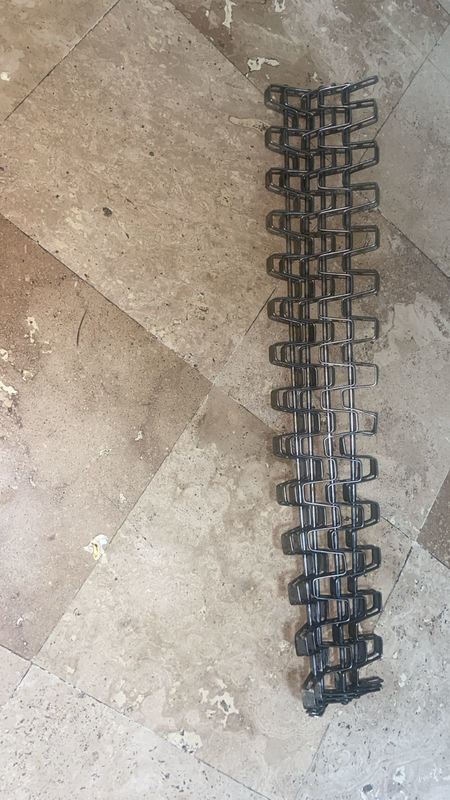

Stainless Steel Flat Flex Wire Mesh Conveyor Belt 3
