Automatic Pneumatic Mesh Machine Steel Wire Mesh Machine

Automatic Pneumatic Mesh Machine Steel Wire Mesh Machine
Automatic Pneumatic Mesh Machine Steel Wire Mesh Machine Automatic Pneumatic Mesh Machine Steel Wire Mesh Machine

Large Image :  Automatic Pneumatic Mesh Machine Steel Wire Mesh Machine

Product Details:
Place of Origin: China
Brand Name: Qijie
Certification: sgs
Model Number: Pneumatic Mesh Machine
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Discuss
Packaging Details: wood case, steel pallet
Delivery Time: 15-18days
Payment Terms: L/C, T/T
Supply Ability: 15pcs
Contact Now
Detailed Product Description
Weldingspeed: 20 - 60 Times Per Minute Motor Power: 11KW
Productname: Wire Mesh Machine Machinetype: Automatic Wire Mesh Welding Machine
Voltage: 380V Warranty: 1 Year
Power Source: Electric Powersupply: 380V, 50Hz, 3 Phase
Highlight:

automatic pneumatic wire mesh machine

,

steel wire mesh welding machine

,

industrial wire mesh making machine

Automatic Pneumatic Mesh Machine Steel Wire Mesh Machine





Welding wire diameter Φ5-10mm or customized
Maximum width 2600mm or customized
Wire of longitude wire wire 100-300mm
Transformer 160KVA×12pcs or customized
Welding mesh 50*50-300*300mm
Machine size 5.7X3.2X1.7m
Welding speed 40-70 times / min (related to wire mesh)
Main tranformer capacity 400 KVA
Pressure mode Cylinder pressurization
Pneumatic system working pressure: ≥0.8Mpa
Cooling water pressure P 0.2≤P<0. Mpa
Compressed air consumption ≥3 M3/min
Longitudinal feeding cutting wire manully feeding(straightness ≤3mm/1000mm)
distance between the equipment and the power transformer is less than 100m)
Horizontal line feeding cutting wire feeding, automatic wire feeding
Dimensions 22×4.4×2.2 m



1.The welding speed is fast and the operation is simple and easy to master.
2.The weft matched with the accurate weft cutting device and accurate positioning device, ensures the weft at the same length and without being out
3.The mesh drawing system is controlled by motor which improved the precision of mesh opening size, meanwhile the line wire and the weft wire spacing are adjustable.
4.Pressurization is air cylinder.Continuous work by cooling down with cold water.

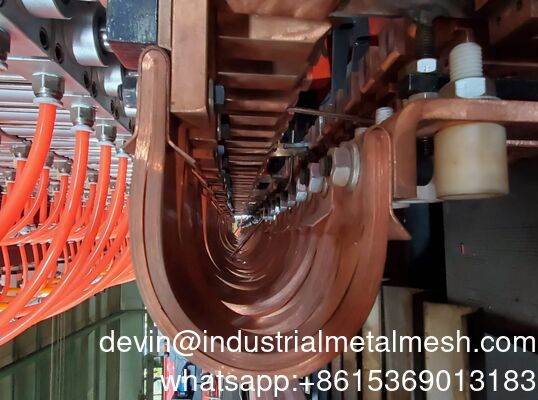

Automatic Pneumatic Mesh Machine Steel Wire Mesh Machine 0



Automatic Pneumatic Mesh Machine Steel Wire Mesh Machine 1

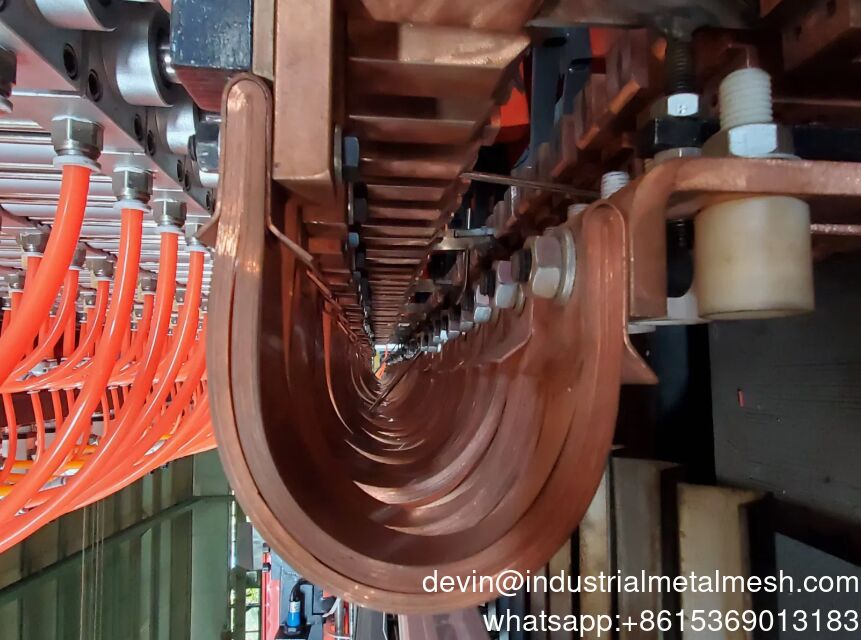

Automatic Pneumatic Mesh Machine Steel Wire Mesh Machine 2
