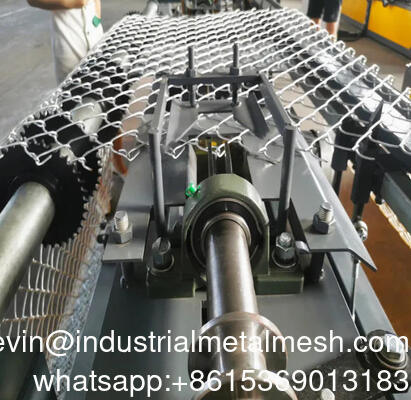

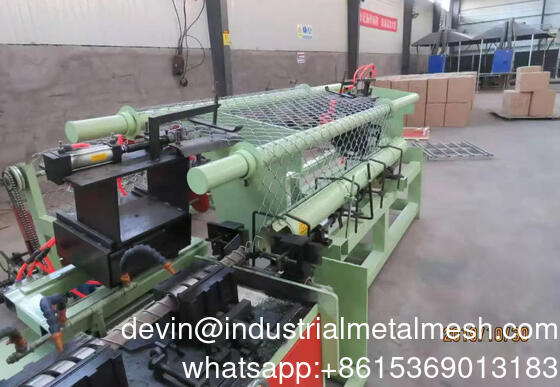

OEM Size Full Automatic High Speed Double Wires Mesh Chain Link Fence Machine

OEM Size Full Automatic High Speed Double Wires Mesh Chain Link Fence Machine
OEM Size Full Automatic High Speed Double Wires Mesh Chain Link Fence Machine

Large Image :  OEM Size Full Automatic High Speed Double Wires Mesh Chain Link Fence Machine

Product Details:
Place of Origin: China
Brand Name: Qijie
Certification: sgs
Model Number: chain link fence machine
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Discuss
Packaging Details: wood case, steel pallet
Delivery Time: 15-18days
Payment Terms: L/C, T/T
Supply Ability: 15pcs
Contact Now
Detailed Product Description
Machineweight: 2500 Kg Email: Devin@industrialmetalmesh.com
Powersupply: 380V, 50Hz, 3 Phase Wire Thickness: 1.7mm
Power: 3KW Production Capacity: 500-1500 Sqm Per Day
Machinedi Mensions: 3500mm X 1500mm X 1800mm Meshtype: Welded Wire Mesh
Feed Wire Systerm: Double Wire Or Single Wire
Highlight:

full automatic chain link fence machine

,

high speed wire mesh machine

,

double wires OEM fence machine

OEM Size Full Automatic High Speed Double Wires Mesh Chain Link Fence Machine



high-performance Chain Link Fence Machine

Diameter 1.3-4.5mm galvanized wires, PVC coated wires ensure durability.
Raw material tensile strength: 350-800MPA for robust construction.
Efficient weaving powered by a servo motor for precision.
Advanced PLC and touch screen for seamless control.
Automatic twisting or knuckling edge, automatic mesh rolling.
Ideal for airport, playground, highway, and railway fencing.
Specification
The Main Motor is two sets servo motor,the controller is Mitsubishi PLC,CNC touch screen
Function
Weave+Lock+Roll
Control Cabinet
Mitsubishi PLC 7 Inch touch screen
Lock Edge
Both Knuckle and twist
Wire Diameter
1.5mm to 4.5mm Wire work with reasonable opening
Mesh opening
25mm-100mm 40mm-150mm Customized Open work with reasonalble wire
Materials of Wires
GI wire, Hot-dipped Wire,PVC wire, Stainless Wire
Production Capacity eg.2M wide ot fence
30mmx30mm 40-60m2/h
40mmx40mm 40-60m2/h
40mmx40mm 80-100m2/h
40mmx40mm 80-100m2/h
50mmx50mm 120-160m2/h
50mmx50mm 120-160m2/h
60mmx60mm 150-180m2/h
60mmx60mm 150-180m2/h
75mmx75mm 180-200m2/h
75mmx75mm 180-200m2/h
100mmx100mm 200-260m2/h
100mmx100mm 200-260m2/h

Model:  A134 for superior performance.
Wire diameter range: 1.6-4.5mm for versatile applications.
Mesh opening size: 25mm-100mm for flexible design.
Mesh width: 500-6000mm for extensive coverage.
Voltage: 380V/50HZ for optimal operation.
Raw material: Galvanized wire, PVC coated wire, etc.
Mesh side options: Knuckled and twisted, knuckle, or twisted.
Machine output: H40mm/70-80, 50mm/100-120, 60mm/150-180, 75mm/180-200, 100mm/260-300

OEM Size Full Automatic High Speed Double Wires Mesh Chain Link Fence Machine 0

OPERATING PRINCIPLE:

Utilizes double molds, two wires weave together for efficient mesh production.
Innovative design integrates dual and single wire strengths for increased output.
OEM Size Full Automatic High Speed Double Wires Mesh Chain Link Fence Machine 1
Flexible Mesh Dimensions:
Produces mesh widths from 500-3000mm and lengths up to 30m or customized specifications

Efficient Roll Formation:
Automated rolling system creates compact, easy-to-handle mesh rolls
OEM Size Full Automatic High Speed Double Wires Mesh Chain Link Fence Machine 2
Specification
TECHNICAL PARAMETERS
Netting Width Specification
2M
3M
4M
No. Of Input Wires
1
Capacity(Based On Mesh Size 50mm*50mm)
60-70M2/H
Power Supply
380V 50Hz (Other Requirements Can Be Custom-Made)
Speed Of The Axle Of The Shaped Knife
200-700RPM
Suitable Wire To The Machine
Galvanized Wire, PVC Wire, Steel Wire
Diameter Of Wire
1.6-4.0Mm(Depend On The Mesh Size)
Power Consumption
7.17Kw, 5 Motors(Based on 4M, It relates to the Dia. of wire, and the power can be custom-made.)
Mesh Size
25*25mm-100*100mm (if the mesh size is 25*25mm, the steel wire should be all soft)
Weight Of Equipment
2.2T
2.5T
3.0T
Main Machine Outer Size
4.8M*1.1M*2.3M
5.5M*1.1M*2.3M
6.5M*1.1M*2.3M
Auxiliary Machine Outer Size
2.5M*1.5M*1.1M
4M*1.5M*1.1M
4.5M*1.5M*1.1M
The Color Of The Machine
Can Be Custom-Made
Max. Winding Capacity
30 Meters Per Roll





INTELLIGENT PRODUCTION CONTROL

Automated Wire Joining:
A Sophisticated joining mechanism ensures a seamless connection between wire segments

Transportation & Storage Optimization:
Mesh Compacting System: Integrated shrinking machine reduces mesh volume for cost-effective transportation and storage

OEM Size Full Automatic High Speed Double Wires Mesh Chain Link Fence Machine 3
COMPREHENSIVE INDUSTRIAL APPLICATIONS

Airport Perimeter Fencing:
High-security applications requiring robust, reliable barrier solutions

Railway Security Systems:
Durable fencing for transportation infrastructure protection

Highway Safety Barriers:
Weather-resistant fencing for roadway safety and boundary demarcation

Commercial & Industrial Security:
Professional-grade fencing for factories, warehouses, and commercial properties

OEM Size Full Automatic High Speed Double Wires Mesh Chain Link Fence Machine 4
