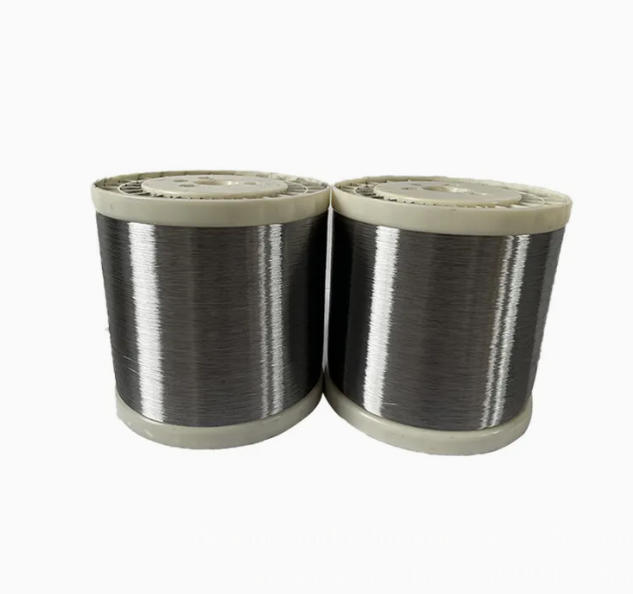

AISI ASTM Ss 0.13mm Stainless Steel Wire 1.2mm 1.5mm 2mm

Large Image : AISI ASTM Ss 0.13mm Stainless Steel Wire 1.2mm 1.5mm 2mm

Product Details:

Place of Origin:	Hebei, China
Brand Name:	QIJIE
Certification:	CE,SGS,ISO
Model Number:	SW-004

Payment & Shipping Terms:

Minimum Order Quantity:	100kg
Packaging Details:	wooden case
Delivery Time:	10-15 working days
Payment Terms:	30%TT in advance, Balance before loading
Supply Ability:	30000 kg/month

Contact Now

Detailed Product Description

Material:

Stainless Steel Wire

Wire Diameter:

0.17mm

Highlight:

AISI stainless steel wire 0.13mm

ASTM stainless steel binding wire

galvanized steel wire 2mm

Nichrome alloy wire includes pure nickel, NiCr alloy, Fe-Cr-Al alloy and copper nickel alloy.

Nickel chrome alloys: Ni80Cr20, Ni70Cr30, Ni60Cr15, Ni35Cr20, Ni90Cr10,Ni30Cr20, pure nickel Ni200 and Ni201

FeCrAl alloy: 0Cr25Al5, 0Cr23Al5, 0Cr21Al4, 0Cr27Al7Mo2, 0Cr21Al6Nb, 0Cr21Al6.

Copper nickel alloy: CuNi1, CuNi2, CuNi6, CuNi8, CuNi10, CuNi23, CuNi30, CuNi44, Constantan,CuMn12Ni

Our Nichrome alloy are in the form of wire, coil, ribbon, strip, foil

Nichrome wire sizes are:

Wire: 0.018mm-10mm

Ribbon: 0.05*0.2mm-2.0*6.0mm

Strip: 0.5*5.0mm-5.0*250mm

Bar: 10-100mm

Nichrome Grade: Nichrome 8020,Ni70Cr30,Ni80Cr20, Ni60Cr15, Ni35Cr20, Ni30Cr20

NiCr 80/20 also called Chromel A, Cr20Ni80, N8, Nichrome V, HAI - NiCr 80, Tophet A, Resistohm 80, Cronix 80, Protoloy, Alloy A,

MWS-650, Stablohm 650, NCHW1

nicr8020 characteristic

Chemical Content %: 80.00 Nickel, 20.00 Chrome

Max continuous service temperature: 1200ºC

Resisivity: 1.09 mm2Ω /m

Density: 8.4g/cm3

Thermal conductivity: 60.3kj/mhc

Coefficient of thermal expansion: 18*10-6/c

Melting point: 1400ºC

Elongation: Min 20%

Alloy Nomenclature Performance		Ni80Cr20	Ni70Cr30	Ni60Cr15	Ni35Cr20	Ni30Cr20
Main Chemical composition	Ni	Rest	Rest	55.0-61.0	34.0-37.0	30.0-34.0
	Cr	20.0-23.0	28.0-31.0	15.0-18.0	18.0-21.0	18.0-21.0
	Fe	≤1.0	≤1.0	Rest	Rest	Rest
Max. continuous service temp. of element(ºC)		1200	1250	1150	1100	1100
Resistivity at 20ºC (μΩ·m)		1.09	1.18	1.12	1.0	1.04
Density(g/cm3)		8.40	8.10	8.20	7.90	7.90
Thermal conductivity (KJ/m·h·ºC)		60.3	45.2	45.2	43.8	43.8
Coefficient of lines expansion(α×10-6/ºC)		18.0	17.0	17.0	19.0	19.0
Melting point approx.( ºC)		1400	1380	1390	1390	1390
Elongation at rupture(%)		>20	>20	>20	>20	>20
Micrographic structure		austenite	austenite	austenite	austenite	austenite
Magnetic properties		nonmagnetic	nonmagnetic	Weak magnetic	Weak magnetic	Weak magnetic

The application areas of nickel-chromium alloy strips include: Petrochemical industry: used to manufacture pipes, valves, pumps and other components in petrochemical equipment, as well as catalyst carriers for petrochemicals. Aerospace industry: used to manufacture high-temperature components such as engines, turbine blades, and combustion chambers. Chemical industry: used to manufacture reaction kettles, heat exchangers and other components in chemical equipment. Devices: used to manufacture devices such as artificial joints and dental implants. Other fields: such as nuclear industry, electronics industry, etc.

AISI ASTM Ss 0.13mm Stainless Steel Wire 1.2mm 1.5mm 2mm 0

1. Stainless steel contains chromium (Cr), nickel (Ni) and other elements, forming a compact oxide film, which effectively resists the corrosion of air, water, acid and alkali, and prolongs the service life.
2. The tensile strength reaches 500-1500MPa (depending on the material and technology), and it has strong bearing capacity and is not easy to break. Smooth surface, low friction coefficient and stability after long-term use.
3. It can work stably in the environment of -200ºC to 800ºC (up to 1200ºC for some high-temperature models) without deformation or oxidation problems.
4. Soft stainless steel wire is easy to bend and weave, which is suitable for complex modeling. Hard wire can be cold-formed to meet the requirements of high-precision springs and precision parts.
