Stainless Steel Fine Wire 0.018-0.08mm/Micro Stainless Steel Wire/Stainless Steel Spring Wire

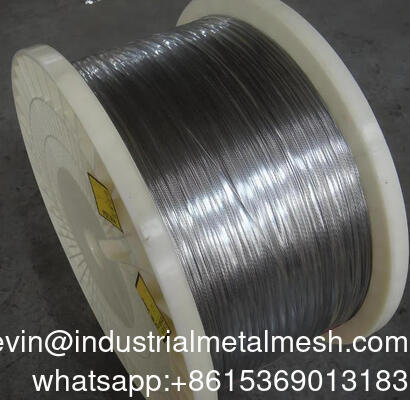

Large Image : Stainless Steel Fine Wire 0.018-0.08mm/Micro Stainless Steel Wire/Stainless Steel Spring Wire

Product Details:

Place of Origin:	Hebei, China
Brand Name:	QIJIE
Certification:	CE,SGS,ISO
Model Number:	SW-004

Payment & Shipping Terms:

Minimum Order Quantity:	100kg
Packaging Details:	wooden case
Delivery Time:	10-15 working days
Payment Terms:	30%TT in advance, Balance before loading
Supply Ability:	30000 kg/month

Contact Now

Detailed Product Description

Material:

Stainless Steel Wire

Wire Diameter:

0.17mm

Highlight:

Stainless steel fine wire 0.018mm

Micro stainless steel spring wire

Galvanized binding wire with warranty

Stainless Steel Fine Wire 0.018-0.08mm/Micro Stainless Steel Wire/Stainless Steel Spring Wire

Stainless Steel Ultra Fine Wire is made from high-quality stainless steel, such as 304, 316, or 316L grades,
Stainless steel microfilaments have good electrical conductivity, thermal conductivity, high strength, high elasticity, wear resistance, corrosion resistance and thermal stability in an oxidizing atmosphere. Widely used in textiles, with good shielding, anti-magnetic, anti-static, anti-radiation ability, its superior performance.

Product Name	Stainless steel wire
Type	200 series: 201,202
	300 series: 301,302,304,304L,308,309S,310s,316,316L,321,347
	400 series: 410,420,430,434
Wire diameter	0.02-5mm
Standard	ASTM AISI GB JIS SUS DIN
Length	As customers' requirement
Package	Spool or roll
Usage	Lifting,fixing,cableway,hanging,supporting,refloatation,haulage.

Gauge	SWG		BWG		AWG
Gauge	Inch	mm	Inch	mm	Inch	mm
8	0.16	4.046	0.165	4.191	0.1285	3.264
9	0.144	3.658	0.148	3.759	0.1144	2.906
10	0.128	3.215	0.134	3.404	0.1019	2.588
11	0.116	2.946	0.12	3.048	0.0907	2.305
12	0.104	2.642	0.109	2.769	0.0808	2.053
13	0.092	2.337	0.095	2.413	0.072	1.828
14	0.08	2.032	0.083	2.108	0.0641	1.628
15	0.072	1.829	0.072	1.829	0.0571	1.45
16	0.064	1.626	0.065	1.651	0.0508	1.291
17	0.056	1.422	0.058	1.473	0.0453	1.15
18	0.048	1.219	0.049	1.245	0.0403	1.024
19	0.04	1.016	0.042	1.067	0.0359	0.912
20	0.036	0.914	0.035	0.839	0.032	0.812
21	0.032	0.813	0.032	0.831	0.0285	0.723
22	0.028	0.711	0.028	0.711	0.02535	0.644
23	0.024	0.61	0.025	0.635	0.02256	0.573
24	0.022	0.559	0.022	0.559	0.02011	0.511
25	0.02	0.508	0.02	0.508	0.01791	0.455
26	0.018	0.457	0.018	0.457	0.01594	0.405

Use: Stainless steel microfilaments are widely used in textile, aerospace, pharmaceutical, biochemical, modern industrial, modern civil, petrochemical and other industries. Due to the high scientific and technological content of stainless steel microfilaments, and has a broad market prospects. Widely used in stainless steel wire mesh weaving, stainless steel wire rope, stainless steel hose, stainless steel binding wire, Sewing thread, etc.

Feature
1.Good electric and thermal conduction.
2. Anti-static, radiation protection, long life etc.
3. Excellent heat resistance, ease of fabrication, most importantly the cleanability and hygiene properties.
4. Good acid and alkali resistance, corrosion resistance.
5. High strength, high tensile strength, wear resistance and durability.
6. Strong oxidation resistance, strong solder joint, bright surface.
7. Don't need special surface treatment, it is easy to maintain.

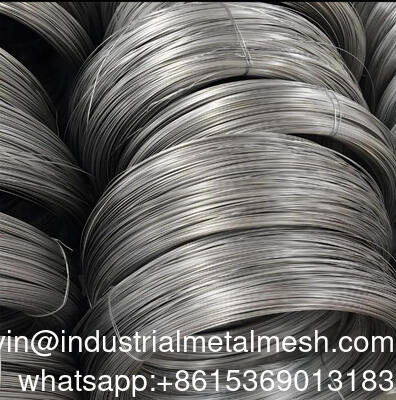

Stainless Steel Fine Wire 0.018-0.08mm/Micro Stainless Steel Wire/Stainless Steel Spring Wire 0

The feature of Stainless Steel Spring Wire

1.Corrosion Resistance

Stainless steel spring wire has excellent corrosion resistance, which is one of its most significant properties. Due to the presence of chromium in stainless steel, a dense oxide film can be formed on the surface of the material, effectively preventing corrosion from corrosive media such as oxygen and moisture. Therefore, stainless steel spring wires can still maintain good performance in harsh environments such as humidity, acidity, and alkalinity, greatly extending their service life.

2.High Strength

Stainless steel spring wire has the characteristic of high strength and can withstand large tensile and compressive forces. This gives it significant advantages in manufacturing parts such as springs that require high strength loads. At the same time, the high strength of stainless steel spring wire also ensures that it is not easily deformed or broken during use, improving the safety and reliability of the product.

3.Good Elasticity

Elasticity is one of the important performance indicators of spring wire materials. Stainless steel spring wire has good elasticity and can quickly return to its original state after being subjected to external forces. This feature makes stainless steel spring wire have a wide range of application prospects in manufacturing various elastic components, such as automotive shock absorbers, springs in household appliances, etc.
