Customizable High-Quality Welded Mesh for Building Protection Materials Welded Wire Mesh

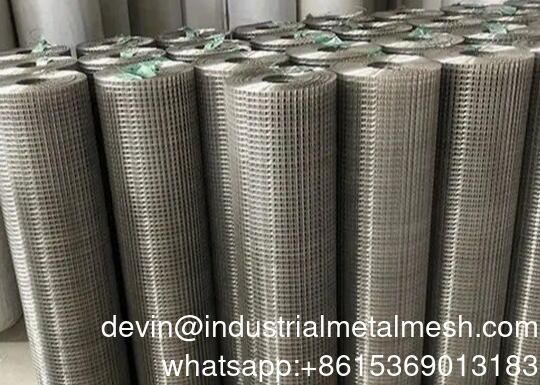

Large Image : Customizable High-Quality Welded Mesh for Building Protection Materials Welded Wire Mesh

Product Details:

Place of Origin:	China
Brand Name:	Qijie
Certification:	SGS
Model Number:	QJ-WM

Payment & Shipping Terms:

Minimum Order Quantity:	10rolls
Packaging Details:	pallets
Delivery Time:	15-18days
Payment Terms:	TT
Supply Ability:	1000pcs

Contact Now

Detailed Product Description

Hole Shape:	Square,Rectangle	Weightpersheet:	Varies Depending On Wire Diameter And Sheet Size
Aperture:	50*75mm Or As Your Demand, 1/4	Standardcompliance:	ASTM, ISO, BS Standards
Thickness:	1.3mm	Surface Treatment:	PVC Coated
Roll Sizes:	24	Color:	Silver, Green, Black (for PVC Coated)
Highlight:	customizable welded wire mesh , welded mesh building protection , high-quality welded wire mesh

Products Description:
Best Quality Galvanized/PVC Coated Construction Filter Aviary Welded Mesh Direct Factory
Welded wire mesh have smooth mesh surface, well-proportioned meshes, strong welded points and bright luster, the mesh does not come loose even if cut in parts or being exerted force on parts, Compared with general iron wire, welded mesh are better in respects of anti-corrosive and anti-rust.

Specification of Welded Wire Mesh
Hole Size		Wire Diameter	Wide	Electric galvanized before welded, Electric galvanized after welded, Hot dipped galvanized before welded, Hot dipped galvanized after welded, PVC coated, Stainless steel wire (SUS304,SUS316,SUS316L);
In inch	In metric unit	Wire Diameter	Wide
1/4''X1/4''	6.4mmX6.4mm	BWG24-22	0.3-2.5m
1/4''X1/2''	6.4mmX12.7mm	BWG24-22	0.3-2.5m
1/4''X1''	6.4mmX25.4mm	BWG24-22	0.3-2.5m
1/3''X1/3''	8.5mmX8.5mm	BWG24-18	0.3-2.5m
3/8''X3/8''	9.5mmX9.5mm	BWG22-19	0.3-2.5m
1/2''X1/2''	12.7mmX12.7mm	BWG23-16	0.3-2.5m
3/4''X3/4''	19.1mmX19.1mm	BWG21-16	0.3-2.5m
1/2''X1''	12.7mmX25.4mm	BWG21-16	0.3-2.5m
1-1/2''X1-1/2''	38mmX38mm	BWG19-14	0.3-2.5m
1''X1''	25.4mmX25.4mm	BWG19-14	0.3-2.5m
2''X2''	50.8mmX50.8mm	BWG15-12	0.3-2.5m
4''X4''	101.6mmX101.6mm	BWG15-12	0.3-2.5m
Note: Special specification can be made according to customer's requires.

Customizable High-Quality Welded Mesh for Building Protection Materials Welded Wire Mesh 0
The Types Of Welded Wire Mesh:
Welded wire mesh is made of high quality low carbon steel wire, PVC coated welded mesh, Galvanized welded mesh devides into hot dipped galvanized and electro galvanized.

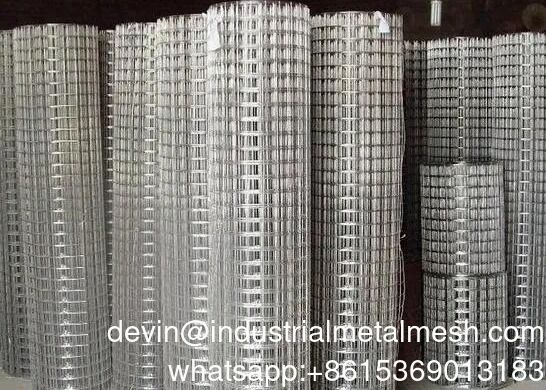

Welded wire mesh rolls and Welded wire mesh panels.
The wire of the welded wire mesh is straight or wavy (also called Dutch wire). According to the shape of the mesh surface, it can be divided into: welded mesh sheet and welded mesh roll.Features of Welded Wire Mesh
Easily workable
Solid construction
Extremely versatile
Easy to install
Lightweight
Can have low resistance to wind loads
Easily cut to fit
Available in many styles and materials, such as stainless steel and alumiunum.
Applications:
Welded wire mesh is also called steel wire mesh, welded mesh, construction meh, square mesh, screen mesh.
Welded wire mesh is widely used in agriculture, construction, transportation, mining and other industries. Such as machine protective netting, animal and livestock fences, flower and tree fences, window guards, passage fences, poultry cages, egg baskets and home office food baskets, paper baskets and decorations. Mainly used for general building exterior walls, pouring concrete, high-rise residential buildings, etc. it plays an important structural role in the thermal insulation system.

Welded wire mesh fencing
Welded wire mesh backets
• Welded wire mesh architectural grilles
• Welded wire mesh grates
• Welded wire mesh racks
• Welded wire mesh aggregate screening
• Welded wire mesh test sieve cloth
• Welded wire mesh water screens
• Welded wire mesh guard screens
• Welded wire mesh detention and security
• Welded wire mesh machine guarding

PACKAGE & SHIPPING

Packaging steps:
Each piece put in on carton box, wood case, Plastics Packaging, pallet, etc.
Mode of shipping:
Shipping by air, sea or car.
By sea for batch goods;
Customs specifying freight forwarders or negotiable shipping methods.
