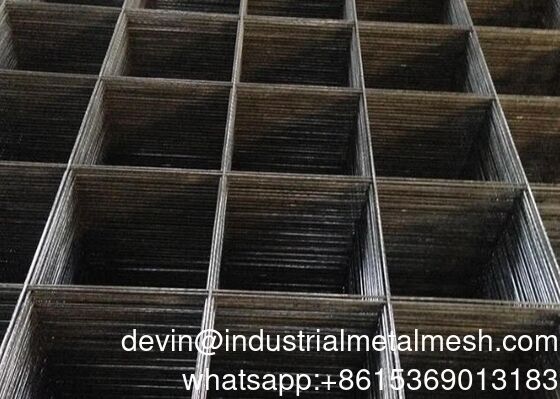

Stainless Steel Mesh Panel Welded Wire Mesh Panel Stainless Mesh Panel Black

Large Image : Stainless Steel Mesh Panel Welded Wire Mesh Panel Stainless Mesh Panel Black

Product Details:

Place of Origin:	China
Brand Name:	Qijie
Certification:	SGS
Model Number:	QJ-WM

Payment & Shipping Terms:

Minimum Order Quantity:	10rolls
Packaging Details:	pallets
Delivery Time:	15-18days
Payment Terms:	TT
Supply Ability:	1000pcs

Contact Now

Detailed Product Description

Hole Shape:	Square,Rectangle	Weightpersheet:	Varies Depending On Wire Diameter And Sheet Size
Aperture:	50*75mm Or As Your Demand, 1/4	Standardcompliance:	ASTM, ISO, BS Standards
Thickness:	1.3mm	Surface Treatment:	PVC Coated
Roll Sizes:	24	Color:	Silver, Green, Black (for PVC Coated)
Highlight:	stainless steel welded wire mesh , black stainless mesh panel , welded wire mesh panel

Stainless Steel Mesh Panel Welded Wire Mesh Panel Stainless Mesh Panel Black

Welded wire mesh panels material: black iron wire , galvanized before welding, galvanized after welding, hot-dipped galvanized welding, PVC coated, PE Coated,Powder coating. Welded wire mesh panels made from galvanized wire or black iron steel wire, also can be PVC coated or Powder coating to shield them from corrosion and rust. welded wire mesh panels can be used for a wide range of applications usage like below: security cages, security fencing,metal fencing, dog fencing, animal enclosures, aviaries, bird cages, pet hutches, cat fences, pond covers or protection, garden fencing,construction materials.

Specification
Opening		Wire Diameter
Inch	metric Unit(mm)	Wire Diameter
1"x1"	25mmx25mm	2.5mm,2.0mm,1.8mm,1.6mm
2"x2"	50mmx50mm	2.5mm,2.0mm,1.8mm,1.6mm
2"x3"	50mmx70mm	6.0mm,5.0mm,4.0mm,3.0mm,2.5mm,2.0mm,1.8mm
2"x4"	50mmx100mm	6.0mm,5.0mm,4.0mm,3.0mm,2.0mm
2"x6"	50mmx150mm	6.0mm,5.0mm,4.0mm,3.0mm
2"x8"	50mmx200mm	6.0mm,5.0mm,4.0mm,3.0mm
3"x3"	75mmx75mm	6.0mm,5.0mm,4.0mm,3.0mm,2.5mm,2.0mm,1.8mm,1.6mm
3"x4"	75mmx100mm	6.0mm,5.0mm,4.0mm,3.0mm,2.5mm,2.0mm,1.8mm
4"x4"	100mmx100mm	6.0mm,5.0mm,4.0mm,3.0mm
5"x5"	125mmx125mm	6.0mm,5.0mm,4.0mm,3.0mm
6"x6"	150mmx150mm	6.0mm,5.0mm,4.0mm,3.0mm
Technical Note:
1.Standard Panel Length:0.5m-5.8m;Width:0.5m-2.4m 2.Special size available at request

Type: Galvanized welded wire mesh, Stainless steel welded wire mesh, PVC coated welded wire mesh.

Welded wire mesh specification ( Standard length: 30m / roll , Width : 0.3m - 2.5m )
Opening in inch	Wire diameter (bwg)
1/4 '' x 1/4 ''	22 , 23, 24
3/8 '' x 3/8 ''	19 , 20 , 21 , 22
1/2 '' x 1/2 ''	16 , 17 , 18 , 19 ,20 , 21 , 22 , 23
5/8 '' x 5/8 ''	18 , 19 , 20 , 21
3/4 '' x 3/4 ''	16 , 17 , 18 , 19 , 20 , 21
1 '' x 1 ''	16 , 17 , 18 , 19
1 '' x 1/2 ''	16 , 17 , 18 , 19 , 20 , 21
1 '' x 1/4 ''	14 , 15 , 16 , 18
1 '' x 2 ''	14 , 15 , 16
2'' x 2 ''	7, 8, 9 , 10 , 11,12
4'' x 4''	7, 8, 9 , 10 , 11,12
6'' x 6''	7, 8, 9 , 10 , 11,12

Stainless Steel Mesh Panel Welded Wire Mesh Panel Stainless Mesh Panel Black 0
The Types Of Welded Wire Mesh:
Welded wire mesh is made of high quality low carbon steel wire, PVC coated welded mesh, Galvanized welded mesh devides into hot dipped galvanized and electro galvanized.
Welded wire mesh rolls and Welded wire mesh panels.
The wire of the welded wire mesh is straight or wavy (also called Dutch wire). According to the shape of the mesh surface, it can be divided into: welded mesh sheet and welded mesh roll.Features of Welded Wire Mesh
Easily workable
Solid construction
Extremely versatile
Easy to install
Lightweight
Can have low resistance to wind loads
Easily cut to fit
Available in many styles and materials, such as stainless steel and alumiunum.
Applications:
Welded wire mesh is also called steel wire mesh, welded mesh, construction meh, square mesh, screen mesh.
Welded wire mesh is widely used in agriculture, construction, transportation, mining and other industries. Such as machine protective netting, animal and livestock fences, flower and tree fences, window guards, passage fences, poultry cages, egg baskets and home office food baskets, paper baskets and decorations. Mainly used for general building exterior walls, pouring concrete, high-rise residential buildings, etc. it plays an important structural role in the thermal insulation system.

Welded wire mesh fencing
Welded wire mesh backets
• Welded wire mesh architectural grilles
• Welded wire mesh grates
• Welded wire mesh racks
• Welded wire mesh aggregate screening
• Welded wire mesh test sieve cloth
• Welded wire mesh water screens
• Welded wire mesh guard screens
• Welded wire mesh detention and security
• Welded wire mesh machine guarding

PACKAGE & SHIPPING

Packaging steps:
Each piece put in on carton box, wood case, Plastics Packaging, pallet, etc.
Mode of shipping:
Shipping by air, sea or car.
By sea for batch goods;
Customs specifying freight forwarders or negotiable shipping methods.
