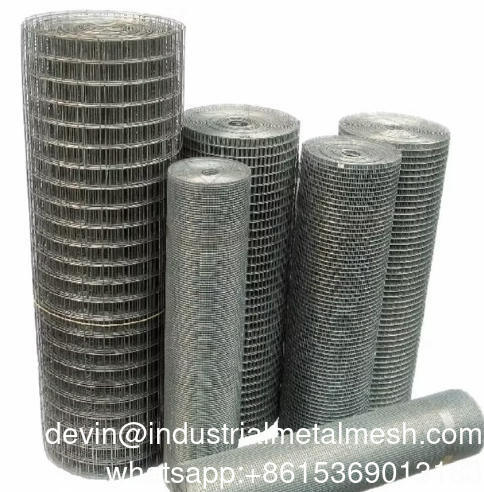

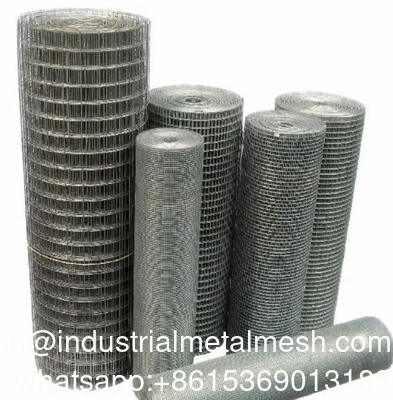

Heavy Duty Welded Wire Mesh Panels Welded Wire Mesh Roll
Welded wire mesh can come as coils /rolls or flat panels and sheets. It can be constructed from low carbon and stainless steel. Surface treatment can be electro galvanized an hot dipped galvanized, also can be PVC coated or Powder coating.
Construction welded mesh is a durable reinforcing material widely used in buildings, bridges, highways, tunnels, and foundations. Available in cold rolled, hot rolled, galvanized, epoxy coated, stainless steel, and rebar mesh, it offers crack resistance, corrosion protection, quick installation, and cost efficiency, providing reliable reinforcement for various projects.
| Opening |
Wire Diameter |
| Inch |
metric Unit(mm) |
| 1"x1" |
25mmx25mm |
2.5mm,2.0mm,1.8mm,1.6mm |
| 2"x2" |
50mmx50mm |
2.5mm,2.0mm,1.8mm,1.6mm |
| 2"x3" |
50mmx70mm |
6.0mm,5.0mm,4.0mm,3.0mm,2.5mm,2.0mm,1.8mm |
| 2"x4" |
50mmx100mm |
6.0mm,5.0mm,4.0mm,3.0mm,2.0mm |
| 2"x6" |
50mmx150mm |
6.0mm,5.0mm,4.0mm,3.0mm |
| 2"x8" |
50mmx200mm |
6.0mm,5.0mm,4.0mm,3.0mm |
| 3"x3" |
75mmx75mm |
6.0mm,5.0mm,4.0mm,3.0mm,2.5mm,2.0mm,1.8mm,1.6mm |
| 3"x4" |
75mmx100mm |
6.0mm,5.0mm,4.0mm,3.0mm,2.5mm,2.0mm,1.8mm |
| 4"x4" |
100mmx100mm |
6.0mm,5.0mm,4.0mm,3.0mm |
| 5"x5" |
125mmx125mm |
6.0mm,5.0mm,4.0mm,3.0mm |
| 6"x6" |
150mmx150mm |
6.0mm,5.0mm,4.0mm,3.0mm |
| Note:Special specification can be made according to customers requires |
The Types Of Welded Wire Mesh:
Welded wire mesh is made of high quality low carbon steel wire, PVC coated welded mesh, Galvanized welded mesh devides into hot dipped galvanized and electro galvanized.
Welded wire mesh rolls and Welded wire mesh panels.
The wire of the welded wire mesh is straight or wavy (also called Dutch wire). According to the shape of the mesh surface, it can be divided into: welded mesh sheet and welded mesh roll.
Features of the Welded Wire Mesh
High Quality: Our Galvanized Wire Mesh Roll undergoes a hot plating galvanizing process, ensuring long-lasting outdoor use without rusting.
Wide Range of Applications: Ideal for chicken pens, garden beds, rabbit fences, tree guards, gutter guards, and more to keep out small critters like voles and raccoons.
Packaging Upgrade: Wrapped in transparent film and packaged in a paper box to prevent dent deformation during transit, ensuring a beautiful end product.
Easy to Use: Easily cut with scissors to customize sizes for chicken cages, rabbit enclosures, or DIY projects. Note the sharp edges and handle with care to avoid injuries.
