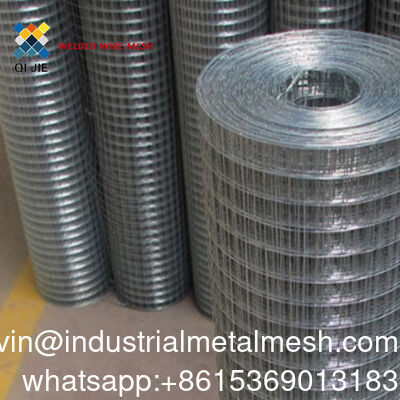

Hot-Dipped Galvanized Welded Wire Mesh Rolls

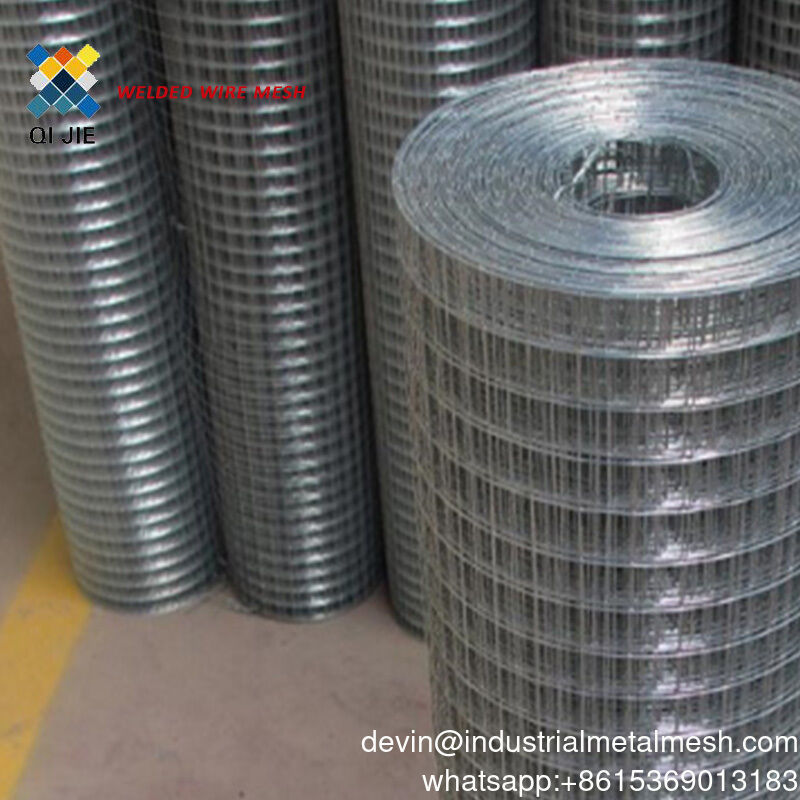

Large Image : Hot-Dipped Galvanized Welded Wire Mesh Rolls

Product Details:

Place of Origin:	China
Brand Name:	Qijie
Certification:	SGS
Model Number:	QJ-WM

Payment & Shipping Terms:

Minimum Order Quantity:	10rolls
Packaging Details:	pallets
Delivery Time:	15-18days
Payment Terms:	TT
Supply Ability:	1000pcs

Contact Now

Detailed Product Description

Hole Shape:	Square,Rectangle	Weightpersheet:	Varies Depending On Wire Diameter And Sheet Size
Aperture:	50*75mm Or As Your Demand, 1/4	Standardcompliance:	ASTM, ISO, BS Standards
Thickness:	1.3mm	Surface Treatment:	PVC Coated
Roll Sizes:	24	Color:	Silver, Green, Black (for PVC Coated)
Highlight:	hot-dipped galvanized welded wire mesh , welded wire mesh rolls , galvanized wire mesh fencing

Hot-Dipped Galvanized Welded Wire Mesh Rolls

Galvanized wire mesh
Our company is a specific manufacture and exporter of welded wire mesh.
Welded wire mesh is made of selected quality iron wires through high-precision processing. The end product is level and flat, sturdy structure, and even strength throughout, which is widely used in industry, farming, construction, transportation and mining for protection of structure, safety segregation, keeping of poultry and livestock, and decorations etc.
Assortments

Tolerances on Mesh Dimensions
Mesh Dimensions(mm)	Tolerance(mm)
< 50	±2.0
≥50 to < 200	±3.0

Mesh Size and Wire Diameter
Mesh Size		Wire Diameter Before & After PVC Coat
mm	inch	BWG No.	Before Coated (mm)	After Coated (mm)
6.4	1/4	24-22	0.56-0.71	0.90-1.05
9.5	3/8	23-19	0.64-1.07	1.00-1.52
12.7	1/2	22-16	0.71-1.65	1.10-2.20
15.9	5/8	21-16	0.81-1.65	1.22-2.30
19.1	3/4	21-16	0.81-1.65	1.24-2.40
25.4 × 12.7	1 × 1/2	21-16	0.81-1.65	1.24-2.42
25.4	1	21-14	0.81-2.11	1.28-2.90
38.1	1 1/2	19-14	1.07-2.11	1.57-2.92
25.4 × 50.8	1 × 2	17-14	1.47-2.11	2.00-2.95
50.8	2	16-12	1.65-2.77	2.20-3.61

Welded Wire Mesh Roll Size
Mesh Inch	Width × Length
1/2	3 ft. × 50 ft.
1/2	4 ft. × 50 ft
1/2	5 ft. × 50 ft.
1/2	6 ft. × 50 ft.
3/4	3 ft. × 50 ft
3/4	4 ft. × 50 ft.
3/4	5 ft. × 50 ft
3/4	6 ft. × 50 ft.
1	3 ft. × 50 ft.
1	4 ft. × 50 ft.
1	5 ft. × 50 ft.
1	6 ft. × 50 ft.

Welded wire Mesh Panels Common Specification
Mesh		Wire Diameter
Expressed in Inches	Millimeters	Diameter	Millimeters
1" × 1"	25 mm × 25 mm	11 G - 14 G	2 mm - 3 mm
2" × 1"	50 mm × 25 mm	8 G - 14 G	2 mm - 4 mm
2" × 2"	50 mm × 50 mm	8 G - 14 G	2 mm - 4 mm
3" × 2"	75 mm × 50 mm	6 G - 14 G	2 mm - 5 mm
3" × 3"	75 mm × 75 mm	6 G - 14 G	2 mm - 5 mm
4" × 2"	100 mm × 50 mm	4 G - 14 G	2 mm - 6 mm
4" × 4"	100 mm × 100 mm	4 G - 14 G	2 mm - 6 mm
5" × 5"	125 mm × 125 mm	4 G - 14 G	2 mm - 6 mm
6" × 6"	150 mm × 150 mm	4 G - 14 G	2 mm - 6 mm
Note: Special specifications can be customized.

Hot-Dipped Galvanized Welded Wire Mesh Rolls 0
The Types Of Welded Wire Mesh:
Welded wire mesh is made of high quality low carbon steel wire, PVC coated welded mesh, Galvanized welded mesh devides into hot dipped galvanized and electro galvanized.
Welded wire mesh rolls and Welded wire mesh panels.
The wire of the welded wire mesh is straight or wavy (also called Dutch wire). According to the shape of the mesh surface, it can be divided into: welded mesh sheet and welded mesh roll.Features of Welded Wire Mesh
Easily workable
Solid construction
Extremely versatile
Easy to install
Lightweight
Can have low resistance to wind loads
Easily cut to fit
Available in many styles and materials, such as stainless steel and alumiunum.
Applications:
Welded wire mesh is also called steel wire mesh, welded mesh, construction meh, square mesh, screen mesh.
Welded wire mesh is widely used in agriculture, construction, transportation, mining and other industries. Such as machine protective netting, animal and livestock fences, flower and tree fences, window guards, passage fences, poultry cages, egg baskets and home office food baskets, paper baskets and decorations. Mainly used for general building exterior walls, pouring concrete, high-rise residential buildings, etc. it plays an important structural role in the thermal insulation system.

Welded wire mesh fencing
Welded wire mesh backets
• Welded wire mesh architectural grilles
• Welded wire mesh grates
• Welded wire mesh racks
• Welded wire mesh aggregate screening
• Welded wire mesh test sieve cloth
• Welded wire mesh water screens
• Welded wire mesh guard screens
• Welded wire mesh detention and security
• Welded wire mesh machine guarding

PACKAGE & SHIPPING

Packaging steps:
Each piece put in on carton box, wood case, Plastics Packaging, pallet, etc.
Mode of shipping:
Shipping by air, sea or car.
By sea for batch goods;
Customs specifying freight forwarders or negotiable shipping methods.
