Product Details:
Payment & Shipping Terms:
|
| Hole Shape: | Square,Rectangle | Weightpersheet: | Varies Depending On Wire Diameter And Sheet Size |
|---|---|---|---|
| Aperture: | 50*75mm Or As Your Demand, 1/4 | Standardcompliance: | ASTM, ISO, BS Standards |
| Thickness: | 1.3mm | Surface Treatment: | PVC Coated |
| Roll Sizes: | 24 | Color: | Silver, Green, Black (for PVC Coated) |
| Highlight: | galvanized welded wire mesh rolls,steel hardware cloth fencing,1/4 inch welded wire mesh |
||

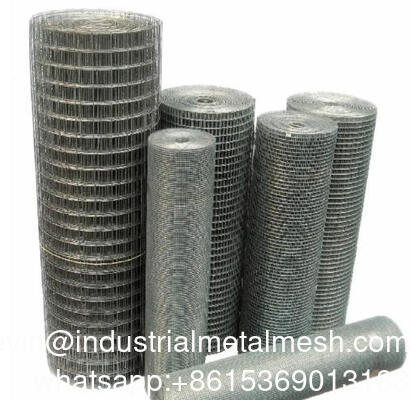

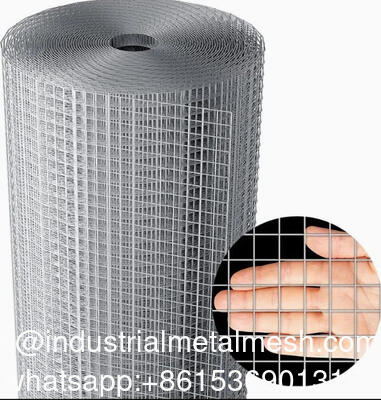

Standard 1/4" 1/2" Hole Steel Hardware Cloth Galvanized Welded Wire Mesh Rolls for Animal Fencing
| PRODUCT NAME | SIZE | PACKAGING |
| COFFEE DRY WELDED WIRE MESH | 1.4'' 6MM 1.5*25M | ROLL |
![]()
| Tolerances on Mesh Dimensions | |
| Mesh Dimensions(mm) | Tolerance(mm) |
| < 50 | ±2.0 |
| ≥50 to < 200 | ±3.0 |
| Mesh Size and Wire Diameter | ||||
| Mesh Size | Wire Diameter Before & After PVC Coat | |||
| mm | inch | BWG No. | Before Coated (mm) | After Coated (mm) |
| 6.4 | 1/4 | 24-22 | 0.56-0.71 | 0.90-1.05 |
| 9.5 | 3/8 | 23-19 | 0.64-1.07 | 1.00-1.52 |
| 12.7 | 1/2 | 22-16 | 0.71-1.65 | 1.10-2.20 |
| 15.9 | 5/8 | 21-16 | 0.81-1.65 | 1.22-2.30 |
| 19.1 | 3/4 | 21-16 | 0.81-1.65 | 1.24-2.40 |
| 25.4 × 12.7 | 1 × 1/2 | 21-16 | 0.81-1.65 | 1.24-2.42 |
| 25.4 | 1 | 21-14 | 0.81-2.11 | 1.28-2.90 |
| 38.1 | 1 1/2 | 19-14 | 1.07-2.11 | 1.57-2.92 |
| 25.4 × 50.8 | 1 × 2 | 17-14 | 1.47-2.11 | 2.00-2.95 |
| 50.8 | 2 | 16-12 | 1.65-2.77 | 2.20-3.61 |
| Welded Wire Mesh Roll Size | |
| Mesh Inch | Width × Length |
| 1/2 | 3 ft. × 50 ft. |
| 1/2 | 4 ft. × 50 ft |
| 1/2 | 5 ft. × 50 ft. |
| 1/2 | 6 ft. × 50 ft. |
| 3/4 | 3 ft. × 50 ft |
| 3/4 | 4 ft. × 50 ft. |
| 3/4 | 5 ft. × 50 ft |
| 3/4 | 6 ft. × 50 ft. |
| 1 | 3 ft. × 50 ft. |
| 1 | 4 ft. × 50 ft. |
| 1 | 5 ft. × 50 ft. |
| 1 | 6 ft. × 50 ft. |
| Welded wire Mesh Panels Common Specification | |||
| Mesh | Wire Diameter | ||
| Expressed in Inches | Millimeters | Diameter | Millimeters |
| 1" × 1" | 25 mm × 25 mm | 11 G - 14 G | 2 mm - 3 mm |
| 2" × 1" | 50 mm × 25 mm | 8 G - 14 G | 2 mm - 4 mm |
| 2" × 2" | 50 mm × 50 mm | 8 G - 14 G | 2 mm - 4 mm |
| 3" × 2" | 75 mm × 50 mm | 6 G - 14 G | 2 mm - 5 mm |
| 3" × 3" | 75 mm × 75 mm | 6 G - 14 G | 2 mm - 5 mm |
| 4" × 2" | 100 mm × 50 mm | 4 G - 14 G | 2 mm - 6 mm |
| 4" × 4" | 100 mm × 100 mm | 4 G - 14 G | 2 mm - 6 mm |
| 5" × 5" | 125 mm × 125 mm | 4 G - 14 G | 2 mm - 6 mm |
| 6" × 6" | 150 mm × 150 mm | 4 G - 14 G | 2 mm - 6 mm |
| Note: Special specifications can be customized. | |||
![]()
The Types Of Welded Wire Mesh:
Welded wire mesh is made of high quality low carbon steel wire, PVC coated welded mesh, Galvanized welded mesh devides into hot dipped galvanized and electro galvanized.
Welded wire mesh rolls and Welded wire mesh panels.
The wire of the welded wire mesh is straight or wavy (also called Dutch wire). According to the shape of the mesh surface, it can be divided into: welded mesh sheet and welded mesh roll.Features of Welded Wire Mesh
Easily workable
Solid construction
Extremely versatile
Easy to install
Lightweight
Can have low resistance to wind loads
Easily cut to fit
Available in many styles and materials, such as stainless steel and alumiunum.
