Product Details:
Payment & Shipping Terms:
|
| Material: | 100% Polyester Virgin Chips/resin | Diameter: | 1.0-5.0mm |
|---|---|---|---|
| Mesh Shape:: | Hexagonal | Cage Shape:: | Cylindrical/Square/Truncated Cone/Truncated Or Other Shapes |
| Other Serives:: | Follow-up Maintenance Service | Name: | Gi Hexagonal Wire Mesh |
| Email: | Devin@industrialmetalmesh.com | Whatsapp: | +8615369013183 |
| Highlight: | PVC coated hexagonal wire mesh,chicken cage wire mesh,factory price metal wire mesh |
||

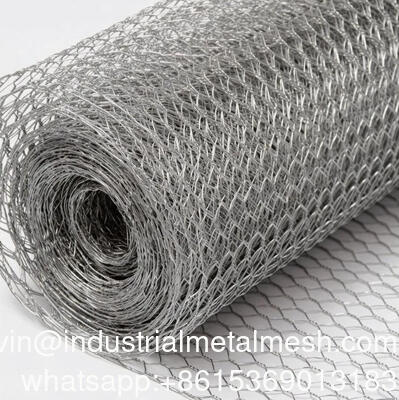

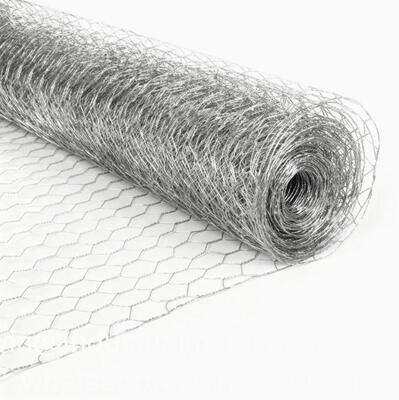

Factory Price PVC Coated Hexagonal Wire Mesh Chicken Cage Wire Mesh
Materials: low carbon steel wire and stainless steel wire
Weaving methods:
Hexagonal wire netting electro-galvanized before weaving
Hexagonal wire netting hot-dip galvanized before weaving
Hexagonal wire netting hot-dip galvanized after weaving
Hexagonal wire netting PVC-coated before or after weaving
Stainless steel hexagonal wire netting
Applications: used for reinforcement, protection and heat preservation
Application areas: construction, chemical, cultivation, food processing, fishing industry and gabion box
Hole: 3/8 to 4 inches
Wire diameter: 0.38 to 3.6mm
Width: 0.2 to 2.2m
Weaving method:
Hexagonal wire netting electro galvanized before weaving
Hexagonal wire netting hot-dip galvanized before weaving
Hexagonal wire netting hot-dip galvanized after weaving
Hexagonal wire netting PVC-coated before or after weaving
Stainless steel hexagonal wire netting
| Specification of hexagonal wire netting | ||||||
| Specifications | Wire Diameter | Width | ||||
| Mesh(inch) | Size(mm) | Limit Error | BWG | Metric | Feet | Metric |
| 3/8" | 10 | 0.5 | BWG27-23 | 0.40-0.6mm | 1"-6" | 0.1-2m |
| 1/2" | 13 | -1.5 | BWG27-22 | 0.4-0.7mm | 1"-6" | 0.1-2m |
| 5/8" | 16 | -0.5 | BWG27-22 | 0.4-0.7mm | 1"-6" | 0.1-2m |
| 3/4" | 20 | -0.4 | BWG26-20 | 0.46-0.9mm | 1"-6" | 0.1-2m |
| 1" | 25 | 1.5 | BWG25-19 | 0.5-1.0mm | 1"-6" | 0.1-2m |
| 1-1/4" | 31 | -3 | BWG24-18 | 0.56-1.2mm | 1"-6" | 0.2-2m |
| 1-1/2" | 40 | -0.5 | BWG23-16 | 0.6-1.65mm | 1"-6" | 0.2-2m |
| 2" | 51 | -0.5 | BWG22-14 | 0.7-2.0mm | 1"-6" | 0.2-2m |
| 3" | 76 | -0.5 | BWG21-14 | 0.8-2.0mm | 1"-6" | 0.3-2m |
| 4" | 100 | -0.5 | BWG20-12 | 0.9-2.8mm | 1"-6" | 0.5-2m |
PVC Coated Hexagonal Wire Netting |
|||
Mesh |
Wire Gauge (MM) |
Width |
|
Inch |
MM |
- |
- |
1/2" |
13mm |
0.6mm - 1.0mm |
2' - 2M |
3/4" |
19mm |
0.6mm - 1.0mm |
2' - 2M |
1" |
25mm |
0.7mm - 1.3mm |
1' - 2M |
1-1/4" |
30mm |
0.85mm - 1.3mm |
1' - 2M |
1-1/2" |
40mm |
0.85mm - 1.4mm |
1' - 2M |
2" |
50mm |
1.0mm - 1.4mm |
1' - 2M |
![]()
Application
Reinforcement of plaster, screed;
Reinforcement surface for laying ceramic tiles;
Reinforcement plates facade insulation in heavy plaster systems (galvanized);
Production of gabions;
Mesh for chicken coop, enclosures for birds and animals;
For rabbits wire netting;
As garden fencing support for climbing plants;
Protection of trees, plants and crops;
Light fittings for sculptural works;
For protection against rockfall, strengthening the hillsides and riverbanks.
![]()
Characteristics
1. Good Anti-Corrosion Performance:
The Galvanized Layer Can Effectively Isolate The Hexagonal Mesh From Contact With The Atmosphere And Moisture, And Prevent The Mesh Body From Being Corroded And Rusted.
2. Long Service Life:
The Zinc-Gold Layer Has Better Corrosion Resistance And Can Prolong The Service Life Of The Hexagonal Mesh.
3. Beautiful Appearance:
The Galvanized Layer Is Uniform And The Brightness Is High, Which Makes The Hexagonal Mesh Have A Better Appearance.
4. Easy Maintenance:
Galvanized Hexagonal Mesh Is Easier To Clean And Maintain During Use, And It Is Not Easy To Accumulate Dust And Dirt.
![]()
![]()
![]()
![]()
Application
Application
Normally each roll is packed with plastic water proof bags.black water proof paper, shrink wrapped or as the clients' requirement.
![]()
![]()
