0.5MM-1MM Diameter 1CM-2CM Aperture Galvanized Welded Mesh Coil Metal Welded Wire Mesh

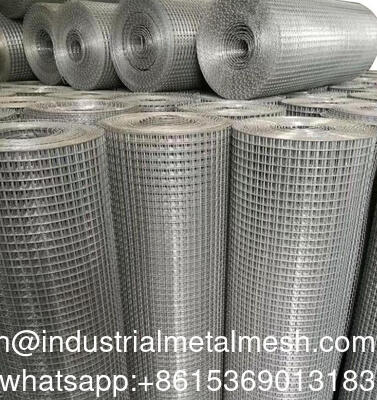

Large Image : 0.5MM-1MM Diameter 1CM-2CM Aperture Galvanized Welded Mesh Coil Metal Welded Wire Mesh

Product Details:

Place of Origin:	China
Brand Name:	Qijie
Certification:	SGS
Model Number:	QJ-WM

Payment & Shipping Terms:

Minimum Order Quantity:	10rolls
Packaging Details:	pallets
Delivery Time:	15-18days
Payment Terms:	TT
Supply Ability:	1000pcs

Contact Now

Detailed Product Description

Hole Shape:	Square,Rectangle	Weightpersheet:	Varies Depending On Wire Diameter And Sheet Size
Aperture:	50*75mm Or As Your Demand, 1/4	Standardcompliance:	ASTM, ISO, BS Standards
Thickness:	1.3mm	Surface Treatment:	PVC Coated
Roll Sizes:	24	Color:	Silver, Green, Black (for PVC Coated)
Highlight:	galvanized welded wire mesh coil , small aperture welded wire mesh , metal welded mesh with warranty

0.5MM-1MM Diameter 1CM-2CM Aperture Galvanized Welded Mesh Coil Metal Welded Wire Mesh

Galvanized wire mesh is a commonly used material in fence construction, which can be used for guardrails, garden isolation, animal fences, livestock fences, flower and tree fences, etc., to protect crops and livestock. In the construction industry, galvanized wire mesh can be used for external wall insulation, pouring concrete, high-rise residential buildings, etc., to improve the insulation performance and structural strength of buildings. Galvanized wire mesh can be used for protective fences, isolation nets, etc. in transportation fields such as highways and railways to ensure traffic safety.

Galvanized wire mesh has a smooth or rough surface (depending on single or multiple wires), and its load-bearing capacity varies, making it suitable for different application scenarios. It has excellent anti-corrosion, corrosion resistance, and oxidation resistance, and can maintain a good working condition for a long time.

According to different production processes, the classification of welded mesh is as follows:

1.Black wire welded mesh
2.Re-drawn wire welded mesh
3.Electronic galvanized after welding welded mesh
4.Electronic galvanized before welding welded mesh
5.Hot-dip galvanized wire welded mesh
6.Hot-dip galvanized after welding welded mesh
7.PVC-coated welded mesh
8.Powder-Panited welded mesh
9.Welded mesh Panel
10.Reinforcing steel mesh
11.Trench mesh

0.5MM-1MM Diameter 1CM-2CM Aperture Galvanized Welded Mesh Coil Metal Welded Wire Mesh 0

Tolerances on Mesh Dimensions
Mesh Dimensions(mm)	Tolerance(mm)
< 50	±2.0
≥50 to < 200	±3.0

Mesh Size and Wire Diameter
Mesh Size		Wire Diameter Before & After PVC Coat
mm	inch	BWG No.	Before Coated (mm)	After Coated (mm)
6.4	1/4	24-22	0.56-0.71	0.90-1.05
9.5	3/8	23-19	0.64-1.07	1.00-1.52
12.7	1/2	22-16	0.71-1.65	1.10-2.20
15.9	5/8	21-16	0.81-1.65	1.22-2.30
19.1	3/4	21-16	0.81-1.65	1.24-2.40
25.4 × 12.7	1 × 1/2	21-16	0.81-1.65	1.24-2.42
25.4	1	21-14	0.81-2.11	1.28-2.90
38.1	1 1/2	19-14	1.07-2.11	1.57-2.92
25.4 × 50.8	1 × 2	17-14	1.47-2.11	2.00-2.95
50.8	2	16-12	1.65-2.77	2.20-3.61

Welded Wire Mesh Roll Size
Mesh Inch	Width × Length
1/2	3 ft. × 50 ft.
1/2	4 ft. × 50 ft
1/2	5 ft. × 50 ft.
1/2	6 ft. × 50 ft.
3/4	3 ft. × 50 ft
3/4	4 ft. × 50 ft.
3/4	5 ft. × 50 ft
3/4	6 ft. × 50 ft.
1	3 ft. × 50 ft.
1	4 ft. × 50 ft.
1	5 ft. × 50 ft.
1	6 ft. × 50 ft.

Welded wire Mesh Panels Common Specification
Mesh		Wire Diameter
Expressed in Inches	Millimeters	Diameter	Millimeters
1" × 1"	25 mm × 25 mm	11 G - 14 G	2 mm - 3 mm
2" × 1"	50 mm × 25 mm	8 G - 14 G	2 mm - 4 mm
2" × 2"	50 mm × 50 mm	8 G - 14 G	2 mm - 4 mm
3" × 2"	75 mm × 50 mm	6 G - 14 G	2 mm - 5 mm
3" × 3"	75 mm × 75 mm	6 G - 14 G	2 mm - 5 mm
4" × 2"	100 mm × 50 mm	4 G - 14 G	2 mm - 6 mm
4" × 4"	100 mm × 100 mm	4 G - 14 G	2 mm - 6 mm
5" × 5"	125 mm × 125 mm	4 G - 14 G	2 mm - 6 mm
6" × 6"	150 mm × 150 mm	4 G - 14 G	2 mm - 6 mm
Note: Special specifications can be customized.

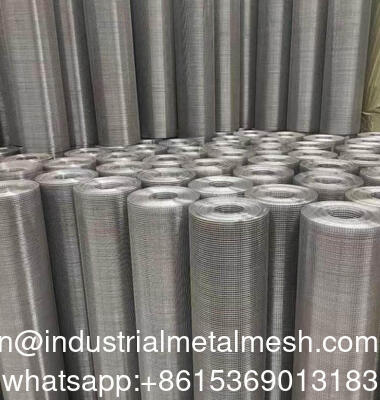

0.5MM-1MM Diameter 1CM-2CM Aperture Galvanized Welded Mesh Coil Metal Welded Wire Mesh 1
The Types Of Welded Wire Mesh:
Welded wire mesh is made of high quality low carbon steel wire, PVC coated welded mesh, Galvanized welded mesh devides into hot dipped galvanized and electro galvanized.
Welded wire mesh rolls and Welded wire mesh panels.
The wire of the welded wire mesh is straight or wavy (also called Dutch wire). According to the shape of the mesh surface, it can be divided into: welded mesh sheet and welded mesh roll.Features of Welded Wire Mesh
Easily workable
Solid construction
Extremely versatile
Easy to install
Lightweight
Can have low resistance to wind loads
Easily cut to fit
Available in many styles and materials, such as stainless steel and alumiunum.

Function

Welded wire mesh serves a multitude of functional purposes across different industries. In construction, it is used as a reinforcing material for concrete, providing structural strength and preventing cracking. In agriculture, it acts as fencing to enclose livestock, keep out pests, or protect crops, thanks to its sturdy grid that resists impacts and pressure. It also functions as a screening material for windows, doors, or vents, offering security and ventilation simultaneously. Additionally, it can be employed in crafting and DIY projects for creating decorative elements or functional structures like storage baskets. The mesh's uniform openings and welded joints ensure it can withstand tension and pressure, making it a versatile solution for both practical and protective applications.

Welded wire mesh fencing
Welded wire mesh backets
• Welded wire mesh architectural grilles
• Welded wire mesh grates
• Welded wire mesh racks
• Welded wire mesh aggregate screening
• Welded wire mesh test sieve cloth
• Welded wire mesh water screens
• Welded wire mesh guard screens
• Welded wire mesh detention and security
• Welded wire mesh machine guarding

PACKAGE & SHIPPING

Packaging steps:
Each piece put in on carton box, wood case, Plastics Packaging, pallet, etc.
Mode of shipping:
Shipping by air, sea or car.
By sea for batch goods;
Customs specifying freight forwarders or negotiable shipping methods.
