High Zinc Galvanized Steel Wire Mesh Putanka Anti Tank Barrier Battlefield

High Zinc Galvanized Steel Wire Mesh Putanka Anti Tank Barrier Battlefield
High Zinc Galvanized Steel Wire Mesh Putanka Anti Tank Barrier Battlefield

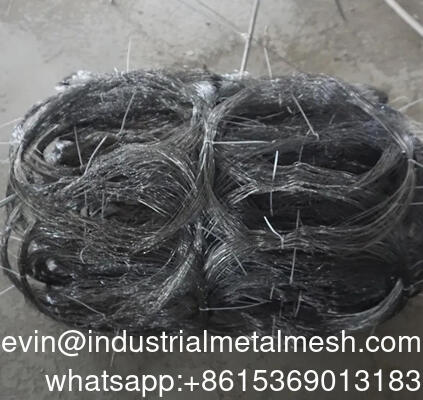

Large Image :  High Zinc Galvanized Steel Wire Mesh Putanka Anti Tank Barrier Battlefield

Product Details:
Place of Origin: CHINA
Brand Name: QIJIE
Certification: sgs
Model Number: putanka wire
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Packaging Details: bulk, pallets
Delivery Time: 15-18days
Payment Terms: TT,LC,
Supply Ability: 1000/pcs
Contact Now
Detailed Product Description
Material: Steel Wire Diameter: 0.5/0.6/0.8/0.9mm
Perimeter: 10m Email: Devin@industrialmetalmesh.com
Whatsapp: +8615369013183
Highlight:

galvanized steel wire mesh

,

anti tank barrier wire

,

battlefield steel mesh putanka



High Zinc Galvanized Steel Wire Mesh Putanka Anti Tank Barrier Battlefield ​



Anti-Drone Inconspicuous Obstacle Fence – Putanka Wire Barrier

The MZP Putanka wire barrier, also known as "foot-binding wire" or "inconspicuous obstacle," is an anti-tank net designed to impede the movement of tanks, armored vehicles, and violators of the state border. Woven from high-strength, corrosion-resistantwire into rings forming a garland, it creates a ground-covering barrier when opened.

These obstacles hinder movement and maneuver, limit actions on signaling and control means, and provide border units with favorable conditions for blocking and detaining intruders. When a person enters, they get entangled and cannot escape withouthelp. Vehicles are immobilized as wire wraps the wheels, forming a metal mass on the chassis.

Discreet yet highly effective, this security barrier is widely used for border protection and defense.

High Zinc Galvanized Steel Wire Mesh Putanka Anti Tank Barrier Battlefield 0

Specification
Specifications of Anti Tank Wire Mesh
Unfolded Size After Installation
10x10x1.4m
Wire diameter
0.5, 0.6, 0.8, 0.9 mm for 5689 type
0.5, 0.5, 0.8, 0.8 mm for 5588 type
Folded dimensions
1200 mm x 500 mm x 200 mm
Package weight without rings and peg
15 KGS / 30 KGS, 12.5 KGS / 25 KGS
Accessories For Installation
40 pcs of metal rings and 40 pcs of metal pegs
Loading Capacity
800 packs loaded in each 40ft HC Container


High Zinc Galvanized Steel Wire Mesh Putanka Anti Tank Barrier Battlefield 1



Technical barriers are designed for

※ Stopping the advance of the attacker;

※ Slowing down his maneuver;

※ Causing him losses in life and equipment;

※ Creating mainly good conditions for the security forces to detain or eliminate the violator.



Technical characteristics of an inconspicuous wire network (mess):

Parameter Meaning
Unfolded dimensions 10x5x1.4 m
Wire diameter / number of garlands; 0.9 mm / 20 pieces
0.8 mm / 20 pieces
0.6 mm / 20 pieces
0.5 mm / 20 pieces
twist - 0.8 mm
Folded dimensions 1.2x0.6x0.8 m
Package weight without rings and peg 12 kg
Complete set of the MZP package with rings and pegs 40 pieces

How much space does PZP Putanka take in a car body?

Here are the measurements of the batch of MZP Putanka (20 sets):

  MZP 20 sets Rings and pegs
Length, m 0.98 0.2
Width, m 0.68 0.4
Height, m 0.75 0.4
Volume, m 3 0.4998 0.032

20 sets will take up a volume of 0.5318 m3 (0.026 m3/set).

The appearance of the fence, pegs and rings may differ from that on the site, depending on the equipment on which this batch is produced.
If you need to buy an inconspicuous obstacle of a specific appearance, then give written requirements for the type of confusion.

High Zinc Galvanized Steel Wire Mesh Putanka Anti Tank Barrier Battlefield 2



The main advantages of invisible wire obstacle:



※ Inconspicuous in the territory;

※ Several types of installation are possible: in the plane of the territory, in the fence, in the wall and also on the roof of the structure;

※ Considered an insurmountable obstacle in the line of movement of persons, wheeled as well as crawler and wheeled equipment;

※ Guarantees operational formation within the protection boundary;

※ Low cost of the package.



High Zinc Galvanized Steel Wire Mesh Putanka Anti Tank Barrier Battlefield 3



High Zinc Galvanized Steel Wire Mesh Putanka Anti Tank Barrier Battlefield 4
