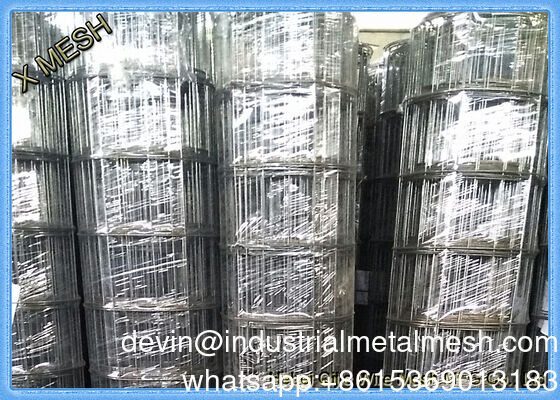

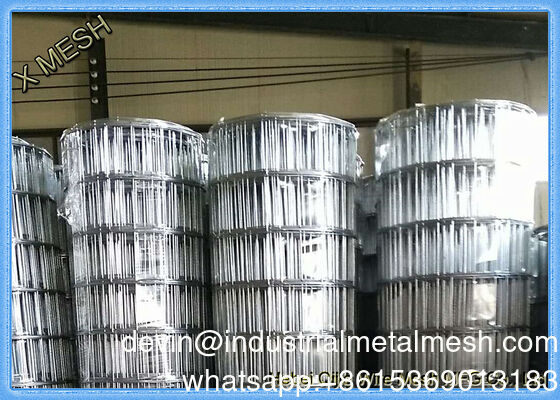

ASTM 1/8-4 Inches Galvanized PVC Coated Stainless Steel Welded Wire Mesh

Large Image : ASTM 1/8-4 Inches Galvanized PVC Coated Stainless Steel Welded Wire Mesh

Product Details:

Place of Origin:	CHINA
Brand Name:	QiJie
Certification:	ISO9001:2008, SGS, CE
Model Number:	01WWM

Payment & Shipping Terms:

Minimum Order Quantity:	50 rolls
Price:	USD9.90-USD45.90
Packaging Details:	Plastic film or water proof paper
Delivery Time:	10-25days
Payment Terms:	TT,LC,
Supply Ability:	1000 rolls/per day

Contact Now

Detailed Product Description

Material:	Carbon Steel Wire	Mesh Opening:	12 × 12, 20 × 20, 25 × 25, 12 × 25mm
Wire Diameter:	0.4mm - 1.5mm	Roll Width:	0.4m,0.5m,0.6m,0.8m, 1.0m, 1.25m, 1.5m, 2.0m
Roll Length:	15M,30M,50M Ect	Surface Treatment:	Hot Dipped Galvanized Or Electric Galvanized
Model Number:	Xx-01001	Application::	Fence Mesh
Email:	Devin@industrialmetalmesh.com	Whatsapp:	+8615369013183
Highlight:	galvanized PVC coated welded wire mesh , stainless steel welded wire mesh , ASTM 1/8-4 inches wire mesh

ASTM 1/8-4 Inches Galvanized PVC Coated Stainless Steel Welded Wire Mesh

Product Description:

Hot-Dipped galvanized welded wire mesh panels/sheets or rolls are generally made up of plain steel wire. At the time of processing it goes through a hot zinc covering process. This type of welded mesh ware with square opening is ideal for animal cage structuring, fabricating the wire boxes, grilling, partition making, grating purposes and machine protection fencing.

Another type galvanized welded wire mesh is electro galvanized welded wire mesh. Different from hot-dipped galvanized welded wire mesh, electro galvanized welded wire mesh is made of low carbon steel wire through automatic digital controlled welding equipments. It is welded with plain steel wire, then electric galvanized after welding. The finished products are level and flat with sturdy structure.

Mostly they are electro galvanized after welding (GAW), it can offer superior corrosion resistance compared to low carbon steel without the expense of stainless steel. This type of welded wire mesh is designed for building fencing and in other infrastructural purposes. It is a corrosion resistant wire mesh that is largely used in structural building. It is also available in different forms like rolls and panels for industrial uses.

ASTM 1/8-4 Inches Galvanized PVC Coated Stainless Steel Welded Wire Mesh 0

Applications:

Plaster mesh is widely used as a reinforcing material to protect the internal and external walls,floors and ceilings against cracking in the industrial plants and other architectures.Plaster Welded Wire Mesh has a wide scope. It can be used for the building inside and outside plaster reinforcement. As an essential piece of plastering work, it creates lasting plaster coating for absolutely all surfaces of concrete and brick to wood, and even plaster ceilings. Before plastering, the welded mesh must be mounted on wall by a solid dowel-nails or anchor bolts, which makes the plaster work easier. The Plaster Welded Wire Mesh makes the plaster wall surface smooth and no crack, also excludes the impact of external factors on the wall.

Product Parameters

Mesh size	Wire gauge diameter
in mm	in inch	BWG No.	mm
6.4	1/4	24-22	0.56- 0.71
9.5	3/8	23-19	0.64 - 1.07
12.7	1/2	22-16	0.71 - 1.65
15.9	5/8	21-16	0.81 - 1.65
19.1	3/4	21-16	0.81 - 1.65
25.4 × 12.7	1 × 1/2	21-16	0.81 - 1.65
25.4	1	21-14	0.81 - 2.11
38.1	1 1/2	19-14	1.07 - 2.11
25.4 × 50.8	1 × 2	17-14	1.47 - 2.11
50.8	2	16-12	1.65 - 2.77
50.8 to 305	2 to 12

Product Details

Welded wire mesh surface treatment type

ASTM 1/8-4 Inches Galvanized PVC Coated Stainless Steel Welded Wire Mesh 1

ASTM 1/8-4 Inches Galvanized PVC Coated Stainless Steel Welded Wire Mesh 3

Specification
Opening		Wire Diameter	Width 0.4-2m Length 5-50m	electric galvanized before welded, electric galvanized after welded, hot-dipped galvanized before welded, hot-dipped galvanized after welded, PVC coated, Stainless steel wire
Inch	Metric Unit	Wire Diameter
1/4"x1/4"	6.4mmx6.4mm	BWG24-22
3/8"x3/8"	10.6mmx10.6mm	BWG22-19
1/2"x1/2"	12.7mmx12.7mm	BWG23-16
5/8"x5/8"	16mmx16mm	BWG21-18
3/4"x3/4"	19.1mmx19.1mm	BWG21-16
1"x1/2"	25.4mmx25.4mm	BWG21-16
1-1/2"x1 1/2"	38mmx38mm	BWG19-14
1"x2"	25.4mmx12.7mm	BWG16-14
2"x2"	50.8mmx50.8mm	BWG15-12
2"x4"	101.6mmx101.6mm	BWG15-12
4"x4"	101.6mmx152.4mm	BWG15-12
4"x6"	101.6mmx152.4mm	BWG15-12
6"x6"	152.4mmx152.4mm	BWG15-12
6"x8"	15.4mmx203.2mm	BWG14-12
Note:Special specification can be made according to customers requires

SURFACE TREATMENT

1.Electrical zinc coating mesh

First welding,cutting the edge of the panel which can make sure the edges is smooth and not hurt your hands,clectrical zinc coating,packing

2.Pre Galvanized mesh

Use the hot dip gal. wire direct do the welding,cutting the edge of the panel which can make sure the edge is smooth and not hurt your hands,packing

3.Hot dip galvanized mesh

First welding,cutting the edge of the panel which can make sure the edges is smooth and not hurt your hands,clectrical zinc coating,packing

4.PVC coated welded wire mesh
Black wire + PVC coated
Galvanized wire+PVC coated

ASTM 1/8-4 Inches Galvanized PVC Coated Stainless Steel Welded Wire Mesh 5

ASTM 1/8-4 Inches Galvanized PVC Coated Stainless Steel Welded Wire Mesh 6

Feature of plastering welded wire mesh:

1. economic and good looking

2. anti-corrosion and long service life

3. wide scope of using

ASTM 1/8-4 Inches Galvanized PVC Coated Stainless Steel Welded Wire Mesh 7

Welded Wire Mesh Welding style:

Hot dipped galvanized after or before welding

Electro galvanized after or before welding

Weaving and characteristics:

Hot dipped galvanizing after welding

Welding with hot dipped galvanized iron wire

Electric galvanizing after welding

Welding with electric galvanized iron wire

PVC coated welded wire mesh

ASTM 1/8-4 Inches Galvanized PVC Coated Stainless Steel Welded Wire Mesh 8

ASTM 1/8-4 Inches Galvanized PVC Coated Stainless Steel Welded Wire Mesh 10

Qijie Wire Mesh MFG Co.,ltd is a professional manufacturer of fences, wire mesh products with more than 20 years experience. Welcome to visit our factory located in Anping city at any time!
