Q235 2 Inch BS138 Galvanized ERW ASTM Thread/Grooved/Painted Pre Galvanized Steel Pipe

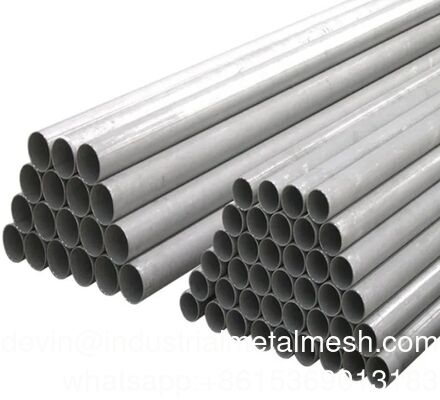

Large Image : Q235 2 Inch BS138 Galvanized ERW ASTM Thread/Grooved/Painted Pre Galvanized Steel Pipe

Product Details:

Place of Origin:	China
Brand Name:	qijie
Certification:	steel pipe
Model Number:	steel pipe

Payment & Shipping Terms:

Minimum Order Quantity:	10tons
Packaging Details:	bulk
Delivery Time:	15-18days
Payment Terms:	L/C, D/P, T/T, Western Union
Supply Ability:	100tons

Contact Now

Detailed Product Description

Material:

Steel

Surface Treatment:

Hot Dipped Galvanized

Standard:

GB/T3091 - 2001 ,BS1387 - 1985 , DIN EN10025 ,EN10219 , JIS G3444:2004 , ASTM A53

Steel Grade:

GB/T3091 - 2001:Q195 , Q235 BS1387 - 1985 , DIN EN10025 EN10219 :S235JR JIS G3444:2004:STK400 ASTM A53: GR. A , GR. B

Highlight:

Q235 galvanized steel pipe

2 inch BS138 steel pipe

pre galvanized ERW pipe

Q235 2 Inch BS138 Galvanized ERW ASTM Thread/Grooved/Painted Pre Galvanized Steel Pipe

Galvanized steel pipe is a welded steel pipe with a hot-dip or electro-galvanized layer on the surface. Galvanizing can increase the corrosion resistance of steel pipes and prolong their service life. Galvanized pipes are widely used. In addition to being used as pipeline pipes for general low-pressure fluids such as water, gas, and oil, they are also used as oil well pipes and oil pipelines in the petroleum industry, especially offshore oil fields, and oil heaters and condensation pipes for chemical coking equipment. Pipes for coolers, coal distillation washing oil exchangers, trestle piles, and support pipes for mine tunnels, etc.

Size	OD(Outer Diameter)	15mm-168mm)
	WT(Wall Thickness)	0.5-2.75mm. SCH10s,SCH40s,STD,XS,SCH80, SCH160,XXS etc.
	ZINC COATED	1)Pre-galvanized steel pipe:Z40-80g/m2 2)Hot dip galvanized steel pipe:Z200-520g/m2
Material	Q195 → Grade B, SS330,SPHC, S185 Q215 → Grade C,CS Type B,SS330, SPHC Q235 → Grade D,SS400,S235JR,S235JO,S235J2 Q345 → SS500,ST52
Standard	BS1387,EN10297,BS6323,BSEN10217,GB/T13793-1992, GB/T14291-2006,GB/T3091-1993,GB/T3092-1993,GB3640-88, ASTM A53/A36,EN39/EN10219,API 5L,GB/T9711.1-99 etc
Section shape	Round/Square/Rectangular
Type	Welded Pipe
Technique	Electronic Resistance Welded (ERW ) Electronic Fusion Welded (EFW) Double Submerged Arc Welded (DSAW)
Welded Line Type	Longitudinal
Ends	1)Plain2)Beveled3)Thread with Coupling or cap
End protector	1) Plastic pipe cap2) Iron protector
Surface Treatment	1) Bared 2) Black Painted (varnish coating) 3) Galvanized 4) With Oiled 5) 3 PE, FBE, corrosion resistant coating
Inspection	With Hydraulic Testing, Eddy Current , Infrared Test
Class A test pressure	4.83MPa-13.10Mpa

1.Black square&rectanhgular steel pipe:ERW steel tube
2.Pre-galvanized square&rectangular steel pipe: Pre-galvanized square/rectangular tube is made of hot dipped galvanized steel strip directly.
3.Hot dipped galvanizedsquare&rectangular steel pipe : Hot dipped galvanized square/rectangular tube owns thicker zinc coating than pre-galvanized square/rectangular tube. Black tubes will be dipped into zinc pool for galvanizing.
4.Electro galvanized square&rectangular steel pipe : The technology of electro galvanized square/rectangular tube is similar to hot dipped galvanized tube, but the thickness of zinc coating is less than hot dipped galvanized tube.
5.Painted square&rectangular steel pipe:Painted square/rectangular to remove the rust and clean the oil first and then paint the required color paint.
Standard:GB/T6728:2002,ASTMA500,JIS G3466,EN10210,EN10219
Steel Grade:
GB/T6728:2002 : Q195 , Q235 , Q345
ASTM A500:GR. A , GR. B, GR. C , GR. D
JIS G3466 : SS440,SS540
EN10210, EN10219: S235JR ,S275JR,S355JR, S355J2H

Square & rectangular steel tube : The size can be based on your requirement to custom.

Name	Size	Wall Thickness	Length
Name	mm	mm	m
Square tube	10x10-500x500	0.6-25.0	1-12m
Rectangular tube	20x10-200x400	0.7-13.0	1-12m

TECHNICAL PARAMETERS
Product Name	Galvanized Steel Round Pipe
Keywords	Steel Pipe
Standard	BS1139-1775, EN1039, EN10219, JIS G3444:2004, GB/T3091-2001, BS1387-1985, DIN EN10025, ASTM A53 SCH40/80/STD, BS-EN10255-2004
Material	Q235, Q345, S235JR, S275JR, STK400, STK500, S355JR, GR.B-D
Thickness	Pre Galvanized:0.6-1.5mm.
Thickness	Hot Dipped Galvanized: 1.6- 25mm.
Length	5.80 Meters Or 6 Meters As Usual Or By Customer'S Requirements
Out Diameter	Pre Galvanized:1/2''-4''(21.3-114.3mm).
Out Diameter	Hot Dipped Galvanized:1/2''-10''(21.3Mm-273.1mm).
Zinc Coating	Pre Galvanized:5GSM-40GSM
Zinc Coating	Hot Dipped Galvanized 35GSM-200GSM
Technique	Electronic Resistance Welded (ERW)
Surface Finish	Pre-Galvanized, Hot Dipped Galvanized, Electro Galvanized, Black, Painted, Threaded, Engraved, Socket.
Application	Hot Dipped Galvanized Steel Pipe Is Widely Used In Construction, Structure, Accessorize,Construction, Machinery Parts,Fluid Transportation,The Stress Parts Of The AutomobileTractor Parts And So On.
Packing	1.Big OD:In Bulk
	2.Small OD:Packed By Steel Strips
	3.Woven Cloth With 7Slats
	4.According To The Requirements Of Customers

SIZE INTRODUCTION
Out Diameter	Wall Thickness	Length
Inch	Mm	M
1/2"	0.5-2.75	1-12M (Customized)
3/4"	0.5-2.75	1-12M (Customized)
1"	0.5-3.75	1-12M (Customized)
1-1/4"	0.5-5.0	1-12M (Customized)
1-1/2"	0.5-5.0+	1-12M (Customized)
2"	0.5-5.0+	1-12M (Customized)
2-1/2"	0.8-5.0+	1-12M (Customized)
3"	0.8-5.0+	1-12M (Customized)
4"	0.8-4.0	1-12M (Customized)
5"	1.1-4.75	1-12M (Customized)
6"	1.1-6.0+	1-12M (Customized)
8"	1.2-6.5+	1-12M (Customized)
10"	2.75-5.0+	1-12M (Customized)

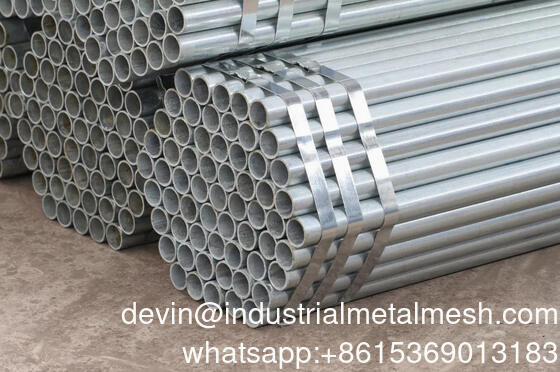

Q235 2 Inch BS138 Galvanized ERW ASTM Thread/Grooved/Painted Pre Galvanized Steel Pipe 0
