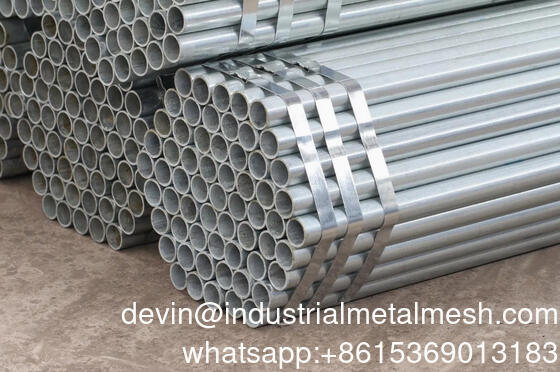

Manufactory Galvanized Steel Conduit/Gi Pipe Pre Galvanized Steel Pipe

Large Image : Manufactory Galvanized Steel Conduit/Gi Pipe Pre Galvanized Steel Pipe

Product Details:

Place of Origin:	China
Brand Name:	qijie
Certification:	steel pipe
Model Number:	steel pipe

Payment & Shipping Terms:

Minimum Order Quantity:	10tons
Packaging Details:	bulk
Delivery Time:	15-18days
Payment Terms:	L/C, D/P, T/T, Western Union
Supply Ability:	100tons

Contact Now

Detailed Product Description

Material:

Steel

Surface Treatment:

Hot Dipped Galvanized

Standard:

GB/T3091 - 2001 ,BS1387 - 1985 , DIN EN10025 ,EN10219 , JIS G3444:2004 , ASTM A53

Steel Grade:

GB/T3091 - 2001:Q195 , Q235 BS1387 - 1985 , DIN EN10025 EN10219 :S235JR JIS G3444:2004:STK400 ASTM A53: GR. A , GR. B

Highlight:

galvanized steel conduit pipe

pre galvanized steel pipe

gi pipe metal wire mesh

Manufactory Galvanized Steel Conduit/Gi Pipe Pre Galvanized Steel Pipe

Galvanized steel pipe is a welded steel pipe with a hot-dip or electro-galvanized layer on the surface. Galvanizing can increase the corrosion resistance of steel pipes and prolong their service life. Galvanized pipes are widely used. In addition to being used as pipeline pipes for general low-pressure fluids such as water, gas, and oil, they are also used as oil well pipes and oil pipelines in the petroleum industry, especially offshore oil fields, and oil heaters and condensation pipes for chemical coking equipment. Pipes for coolers, coal distillation washing oil exchangers, trestle piles, and support pipes for mine tunnels, etc.

Hot-Dip Galvanized Steel Pipe

Hot-dip galvanized steel pipes, made by dipping carbon/welded steel pipes in molten zinc, form a dense zinc layer (≥85μm) via hot-dip plating for enhanced corrosion resistance. The zinc layer bonds firmly, suitable for humid, acid/alkaline environments or long-term outdoor use.

Types include straight seam, spiral welded, large-diameter, Q195/Q235B/Q345B, various standards (British, national, American), ERW, No. 40, heavy/thick-walled/thin-walled, and powder coating galvanizing.

Specs: DN15 (1/2")~DN1200 (48"); wall thickness 0.5~20mm (sch10, sch40); length 6m/9m/12m (customizable).

Standards: ASTM A53/A53M, ISO 1127, EN 10255, AS/NZS 1579, ASME B36.10.etc

Electro-Galvanized Steel Pipe

Electro-galvanized steel pipe has a 10~25μm zinc layer via electrochemistry. Thinner coating, lower cost, weaker corrosion resistance vs hot-dip; for indoor dry/low-corrosion environments.

Types: cold-dip seamless, straight/spiral welded, large-diameter, Q195/Q235B/Q345B, British/national/American standard, scaffolding, 2/3/8/10ft, customized, 1 1/4"×5ft, forged.

Specs: DN15 (1/2")~DN150 (6"); wall thickness 2.0-4.0mm; length 6m/9m/12m (customizable).

Standards: ASTM A153, ISO 2081, EN 10143.etc

Coating thickness: ≥12μm (indoor), ≥20μm (humid, ISO 2081 C2/C3).

Round Galvanized Pipe

Circular galvanized steel pipes are round steel pipes with a zinc layer, forming anti-corrosion layers via hot-dip or electro-galvanizing. They are widely used in construction, energy, machinery, water supply and drainage, etc.

Types:hot-dip/cold-dip round, threaded, grooved, Q195/Q235B/

Q345B round, low carbon, downpipe, industrial, RMC galvanized.

Nominal diameter: hot-dip DN15 (1/2")~DN600 (24"); cold-dip DN15 (1/2")~DN150 (6").
Wall thickness: hot-dip covers Sch.20~Sch.80; cold-dip 0.8~4.0mm.
Length: 6m/9m/12m (standard), customizable.

International standards: ASTM A123, ISO 1461, EN 10346, ASTM A153, ISO 2081.etc

Square/Rectangular Galvanized Pipe

Square/rectangular galvanized steel pipes are hollow, formed via cold bending or welding, with a zinc layer (hot-dip/electro-galvanizing) for corrosion resistance. They have square/rectangular cross-sections, widely used in building structures, machinery, furniture, vehicle manufacturing, etc.

Types include Q195/Q235B/Q345B galvanized square, hot-dip/cold-dip/welded galvanized square, 2.5×2.5 galvanized square tube.

Sectional size:

• Square tube: 20×20mm~400×400mm (EN 10210) or 50×50mm~600×600mm (GB/T 3094); mainstream 50×50mm, 100×100mm, 200×200mm, wall thickness 1.5~16mm.

• Rectangular tube: 20×30mm~400×800mm (EN 10210) or 30×50mm~600×400mm (ASTM A500); common ratios 1:2 (e.g., 50×100mm), 1:3 (e.g., 50×150mm), wall thickness 2.0~20mm.

Wall thickness: Hot-dip 1.5~32mm; cold-dip 1.0~6.0mm.
Length: 6m/9m/12m (standard), customizable.

International standards: ASTM A500, EN 10219, ISO 1461, ASTM A153, EN 10143, EN 10210, GB/T 3094.

Grade		SS904L,SS304,304L,316L,310S,309S,SS201,SS202,SS410,SS430
Thickness		1mm-150mm(SCH10-XXS)
O.D		6mm-2500mm (3/8"-100")
Length		4000mm,5800mm,6000mm,12000mm,or as required.
Finish		Polished,Hairline,Annealed,Pickling
Technology		Seamless or Welding
MOQ		2Ton each size
Packing		Export standard wooden pallets (as per requirements)
Loading Port		Shanghai (any port in China)
Remark		Specification can be custommized as the customer's requirements.
Payment Term	T/T	EXW	30% T/T in advance, paid the balance before shipment
		FOB
		CFR	30% T/T in advance,paid the balance before shipment
		CIF
	L/C	30% T/T in advance,Balance L/C at sight
Delivery Time	7~15days after receiving payment for one container

1.Black square&rectanhgular steel pipe:ERW steel tube
2.Pre-galvanized square&rectangular steel pipe: Pre-galvanized square/rectangular tube is made of hot dipped galvanized steel strip directly.
3.Hot dipped galvanizedsquare&rectangular steel pipe : Hot dipped galvanized square/rectangular tube owns thicker zinc coating than pre-galvanized square/rectangular tube. Black tubes will be dipped into zinc pool for galvanizing.
4.Electro galvanized square&rectangular steel pipe : The technology of electro galvanized square/rectangular tube is similar to hot dipped galvanized tube, but the thickness of zinc coating is less than hot dipped galvanized tube.
5.Painted square&rectangular steel pipe:Painted square/rectangular to remove the rust and clean the oil first and then paint the required color paint.
Standard:GB/T6728:2002,ASTMA500,JIS G3466,EN10210,EN10219
Steel Grade:
GB/T6728:2002 : Q195 , Q235 , Q345
ASTM A500:GR. A , GR. B, GR. C , GR. D
JIS G3466 : SS440,SS540
EN10210, EN10219: S235JR ,S275JR,S355JR, S355J2H

Square & rectangular steel tube : The size can be based on your requirement to custom.

Name	Size	Wall Thickness	Length
Name	mm	mm	m
Square tube	10x10-500x500	0.6-25.0	1-12m
Rectangular tube	20x10-200x400	0.7-13.0	1-12m

TECHNICAL PARAMETERS
Product Name	Galvanized Steel Round Pipe
Keywords	Steel Pipe
Standard	BS1139-1775, EN1039, EN10219, JIS G3444:2004, GB/T3091-2001, BS1387-1985, DIN EN10025, ASTM A53 SCH40/80/STD, BS-EN10255-2004
Material	Q235, Q345, S235JR, S275JR, STK400, STK500, S355JR, GR.B-D
Thickness	Pre Galvanized:0.6-1.5mm.
Thickness	Hot Dipped Galvanized: 1.6- 25mm.
Length	5.80 Meters Or 6 Meters As Usual Or By Customer'S Requirements
Out Diameter	Pre Galvanized:1/2''-4''(21.3-114.3mm).
Out Diameter	Hot Dipped Galvanized:1/2''-10''(21.3Mm-273.1mm).
Zinc Coating	Pre Galvanized:5GSM-40GSM
Zinc Coating	Hot Dipped Galvanized 35GSM-200GSM
Technique	Electronic Resistance Welded (ERW)
Surface Finish	Pre-Galvanized, Hot Dipped Galvanized, Electro Galvanized, Black, Painted, Threaded, Engraved, Socket.
Application	Hot Dipped Galvanized Steel Pipe Is Widely Used In Construction, Structure, Accessorize,Construction, Machinery Parts,Fluid Transportation,The Stress Parts Of The AutomobileTractor Parts And So On.
Packing	1.Big OD:In Bulk
	2.Small OD:Packed By Steel Strips
	3.Woven Cloth With 7Slats
	4.According To The Requirements Of Customers

SIZE INTRODUCTION
Out Diameter	Wall Thickness	Length
Inch	Mm	M
1/2"	0.5-2.75	1-12M (Customized)
3/4"	0.5-2.75	1-12M (Customized)
1"	0.5-3.75	1-12M (Customized)
1-1/4"	0.5-5.0	1-12M (Customized)
1-1/2"	0.5-5.0+	1-12M (Customized)
2"	0.5-5.0+	1-12M (Customized)
2-1/2"	0.8-5.0+	1-12M (Customized)
3"	0.8-5.0+	1-12M (Customized)
4"	0.8-4.0	1-12M (Customized)
5"	1.1-4.75	1-12M (Customized)
6"	1.1-6.0+	1-12M (Customized)
8"	1.2-6.5+	1-12M (Customized)
10"	2.75-5.0+	1-12M (Customized)

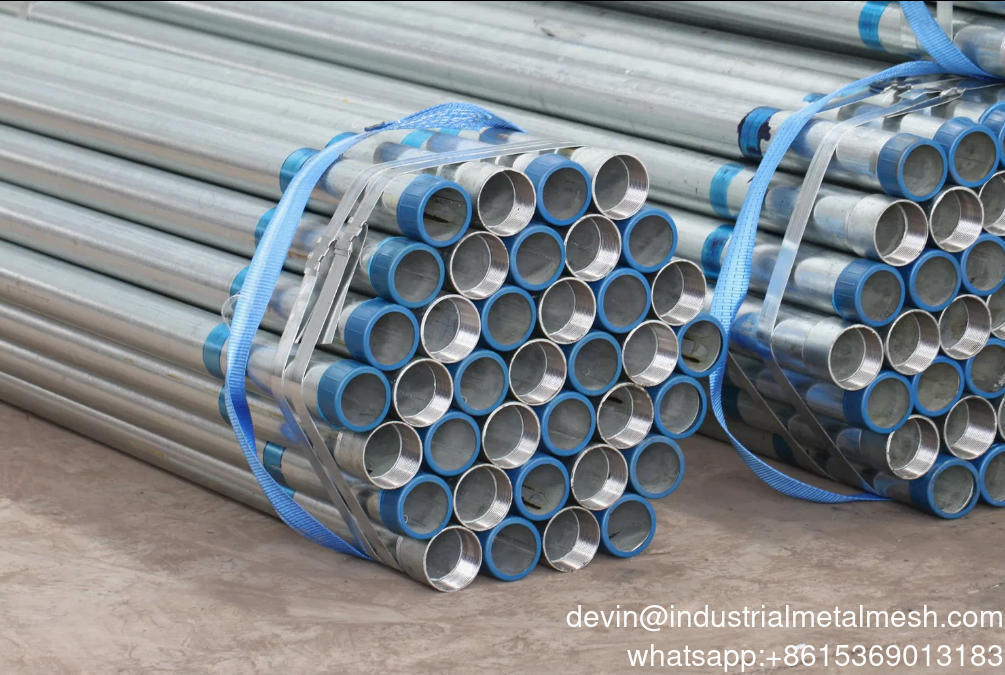

Manufactory Galvanized Steel Conduit/Gi Pipe Pre Galvanized Steel Pipe 0

Manufactory Galvanized Steel Conduit/Gi Pipe Pre Galvanized Steel Pipe 1
