Welded wire mesh, or welded wire fabric is a steel reinforcement material in concrete. The mesh is used for replacing the traditional "cut & bend" and placing of steel thermo-mechanical treated bars. The mesh is an electric fusion welded prefabricated reinforcement consisting of a series of parallel longitudinal wires with accurate spacing welded to cross wires at the required spacing. Machines are used to produce the mesh with precise dimensional control.
Use: welded wire mesh is a metal screen that is made up of low carbon steel wire or stainless steel wire. It is available in various sizes and shapes. It is widely used in agricultural, industrial, transportation, horticultural and food procuring sectors.like chicken cage, rabbit cage, bbq net. It is also used in construction, plastering mesh, mines, gardening, machine protection and other decorations. like roof protectin,
Type: Galvanized welded wire mesh, Stainless steel welded wire mesh, PVC coated welded wire mesh.

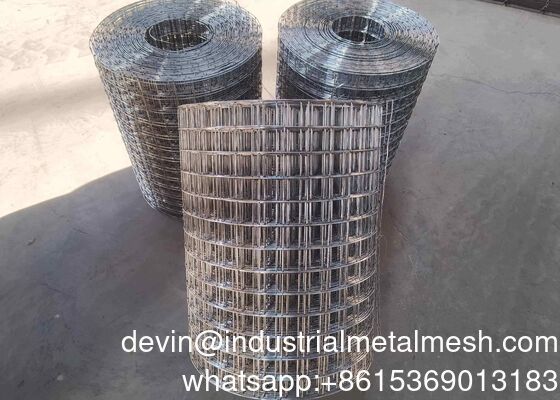

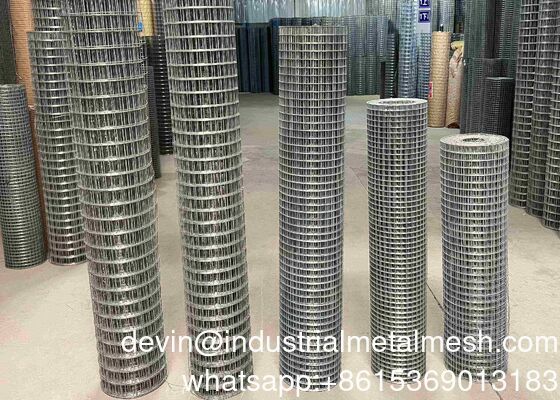

Galvanized Welded Wire Mesh
Material: low carbon steel wire, electro galvanized steel wire, hot-dip galvanized steel wire, pvc coated iron wire, stainless steel wire etc.
Surface treatment: Elec-galvanized, hot-dip galvanized, pvc coated, powder coating etc.
Feature: The structure of this kind of wire mesh is strong,rust-resistant.
processing method: electro galvanized before / after welding. hot dip galvanized before / after welding,
Application: They are used in industry and agriculture building, transportation and mining for all such purposes as poultry houses, egg baskets, runway enclosures, draining rack, fruit drying screen, fence.
| Galvanized Fencing Mesh: |
| Opening |
Wire Diameter<BWG> |
| In inch |
In metric unit(mm) |
| 2" x 3" |
50mm x 75mm |
2.0mm,2.5mm,1.65mm |
| 3" x 3" |
75mm x 75mm |
2.67mm,2.41mm,2.11mm,1.83mm,1.65mm |
| 2" x 4" |
50mm x 100mm |
2.11mm,2.5mm |
| 4" x 4" |
100mm x 100mm |
2.0mm,2.5mm |
Technical Note:
1.Standard roll length: 30m;width: 0.5m to 1.8m
2.Special sizes available at request
3.Packing: in waterproof paper in rolls. Custom packing available at request. |
| Specification List of Welded Wire Mesh: |
| Opening |
Wire Diameter<BWG> |
| In inch |
In metric unit(mm) |
| 1/4" x 1/4" |
6.4mm x 6.4mm |
22,23,24 |
| 3/8" x 3/8" |
10.6mm x 10.6mm |
19,20,21,22 |
| 1/2" x 1/2" |
12.7mm x 12.7mm |
16,17,18,19,20,21,22,23 |
| 5/8" x 5/8" |
16mm x 16mm |
18,19,20,21, |
| 3/4" x 3/4" |
19.1mm x 19.1mm |
16,17,18,19,20,21 |
| 1" x 1/2" |
25.4mm x 12.7mm |
16,17,18,19,20,21 |
| 1-1/2" x 1-1/2" |
38mm x 38mm |
14,15,16,17,18,19 |
| 1" x 2" |
25.4mm x 50.8mm |
14,15,16 |
| 2" x 2" |
50.8mm x 50.8mm |
12,13,14,15,16 |
Technical Note:
1.Standard roll length: 30m;width: 0.5m to 1.8m
2.Special sizes available at request
3.Packing: in waterproof paper in rolls. Custom packing available at request.
|
