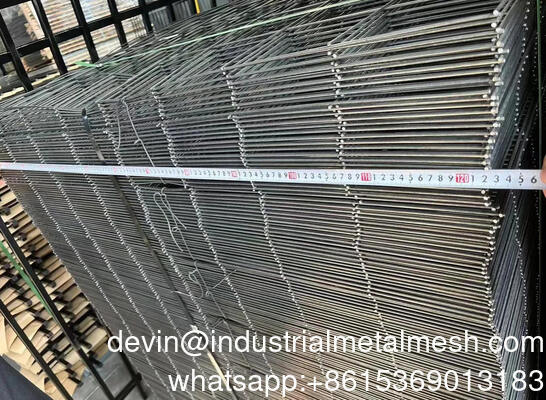

2.0mm 3.0mm 4.0mm Hot DIP Galvanized Welded Wire Mesh Panel

Large Image : 2.0mm 3.0mm 4.0mm Hot DIP Galvanized Welded Wire Mesh Panel

Product Details:

Place of Origin:	CHINA
Brand Name:	QiJie
Certification:	ISO9001:2008, SGS, CE
Model Number:	01WWM

Payment & Shipping Terms:

Minimum Order Quantity:	50 rolls
Price:	USD9.90-USD45.90
Packaging Details:	Plastic film or water proof paper
Delivery Time:	10-25days
Payment Terms:	TT,LC,
Supply Ability:	1000 rolls/per day

Contact Now

Detailed Product Description

Material:	Carbon Steel Wire	Mesh Opening:	12 × 12, 20 × 20, 25 × 25, 12 × 25mm
Wire Diameter:	0.4mm - 1.5mm	Roll Width:	0.4m,0.5m,0.6m,0.8m, 1.0m, 1.25m, 1.5m, 2.0m
Roll Length:	15M,30M,50M Ect	Surface Treatment:	Hot Dipped Galvanized Or Electric Galvanized
Model Number:	Xx-01001	Application::	Fence Mesh
Email:	Devin@industrialmetalmesh.com	Whatsapp:	+8615369013183
Highlight:	hot dip galvanized welded wire mesh , 2.0mm welded wire mesh panel , 4.0mm galvanized wire mesh

2.0mm 3.0mm 4.0mm Hot DIP Galvanized Welded Wire Mesh Panel

Product Description:

Welded wire mesh panel, or welded wire fabric is a steel reinforcement material in concrete. The mesh is used for replacing the traditional "cut & bend" and placing of steel thermo-mechanical treated bars. The mesh is an electric fusion welded prefabricated reinforcement consisting of a series of parallel longitudinal wires with accurate spacing welded to cross wires at the required spacing. Machines are used to produce the mesh with precise dimensional control. The product results in considerable savings in time, labour and money.

Use: The welded wire mesh is a metal screen that is made up of low carbon steel wire or stainless steel wire. It is available in various sizes and shapes. It is widely used in agricultural, industrial, transportation, horticultural and food procuring sectors. It is also used in mines, gardening, machine protection and other decorations.

Type: Galvanized welded wire mesh, Stainless steel welded wire mesh, PVC coated welded wire mesh.

Welded Wire Mesh
Welded wire mesh, or welded wire fabric is a steel reinforcement material in concrete. The mesh is used for replacing the traditional "cut & bend" and placing of steel thermo-mechanical treated bars. The mesh is an electric fusion welded prefabricated reinforcement consisting of a series of parallel longitudinal wires with accurate spacing welded to cross wires at the required spacing. Machines are used to produce the mesh with precise dimensional control. The product results in considerable savings in time, labour and money.

Use: The welded wire mesh is a metal screen that is made up of low carbon steel wire or stainless steel wire. It is available in various sizes and shapes. It is widely used in agricultural, industrial, transportation, horticultural and food procuring sectors. It is also used in mines, gardening, machine protection and other decorations.

Type: Galvanized welded wire mesh, Stainless steel welded wire mesh, PVC coated welded wire mesh.

specification:

wire diameter: 22guage, 20guage, 0.7mm, 1mm, 1.2mm, 1.5mm, 2mm
length:30m,20m,2.4m,2m,or as per you request
width: 1m,48",24" 3',4',5',
Mesh Opening Size:1/2", 1/4", 1", 3/8", 1 1/2", 2", 3/4", 1"*2" etc
Roll Size: 3′*100′, 4′*100′. 3FT*100FT, 4FT*100FT, 4FT*50FT
Surface treatment: Elec-galvanized, hot-dip galvanized, pvc coated, powder coating etc.
Feature: The structure of this kind of wire mesh is strong, lasting and rust-resistant. Galvanized welded wire mesh is galvanized after welding.
Application: They are used in industry and agriculture building, transportation and mining for all such purposes as poultry houses, egg baskets, runway enclosures, draining rack, fruit drying screen, fence.

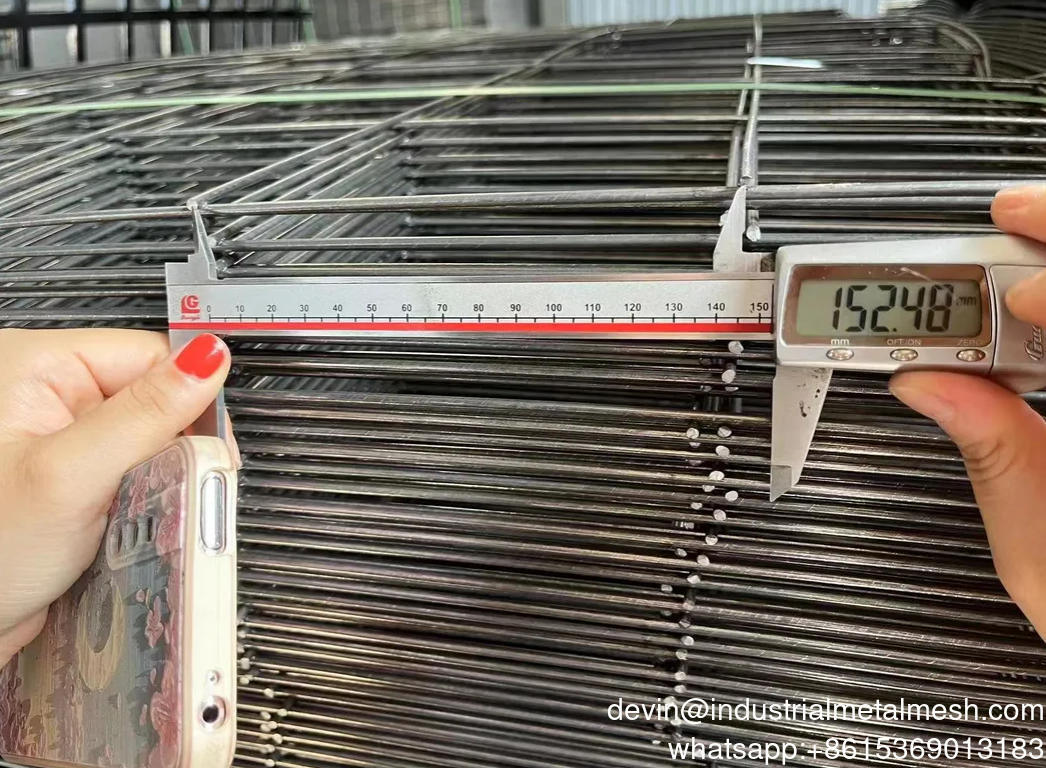

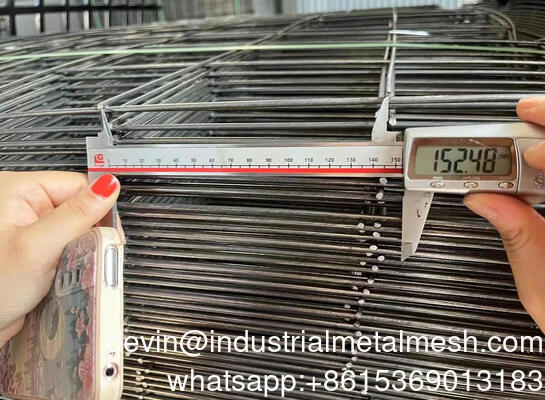

2.0mm 3.0mm 4.0mm Hot DIP Galvanized Welded Wire Mesh Panel 2

Wire Diameter	Mesh		Width
Wire Diameter	inch	mm	Width
2.0mm ~ 3.2mm	1"	25.40	0.914m ~ 1.83m
2.0mm ~ 4.5mm	2"	50.80	0.914m ~ 2.75m
2.0mm ~ 6.0mm	3"	70.20	0.914m ~ 2.75m
2.0mm ~ 6.0mm	4"	101.6	0.914m ~ 2.75m
2.0mm ~ 6.0mm	5"	127.0	0.914m ~ 2.75m
2.0mm ~ 6.0mm	6"	152.4	0.914m ~ 2.75m
2.0mm ~ 6.0mm	7"	177.8	0.914m ~ 2.75m
2.0mm ~ 6.0mm	8"	203.2	0.914m ~ 2.75m

Product Characters of welded wire mesh :

1 . Excellent heat resistant and high intensity .

2 . High strength and strong integration .

3 . Flat and smooth surface combined with firm structure .

4 . Perfect Anti - Rust Property .

5 . Stay Holistiv even cut into fragmented parts .

6 . Long Using Life

7 . Hot dipped galvanized after welded. Not black welded point, more zinc coated ensure it has better anti-rust and last longer. But it also lead to higher cost.

Product Application of welded wire mesh:

It is very popular in breeding industry: Can be made into floor heating, contruction use, various animal cages or fences for breeding with its excellent anti-corrosion property. The zinc coating offers a kind of decorative outlook with its flat surface.
With first-class anti-corrosion property, it is widely used in mine sieving industries as sieving screen. The low carbon steel wire for making of hot-dipped welded wire mesh offers flexibility that can be made in many further fabrication applications.

Qijie Wire Mesh MFG Co.,ltd is a professional manufacturer of fences, wire mesh products with more than 20 years experience. Welcome to visit our factory located in Anping city at any time!
