Black Galvanized Welded Wire Mesh Panel Factory Customized Price

Black Galvanized Welded Wire Mesh Panel Factory Customized Price
Black Galvanized Welded Wire Mesh Panel Factory Customized Price Black Galvanized Welded Wire Mesh Panel Factory Customized Price

Large Image :  Black Galvanized Welded Wire Mesh Panel Factory Customized Price

Product Details:
Place of Origin: CHINA
Brand Name: QiJie
Certification: ISO9001:2008, SGS, CE
Model Number: 01WWM
Payment & Shipping Terms:
Minimum Order Quantity: 50 rolls
Price: USD9.90-USD45.90
Packaging Details: Plastic film or water proof paper
Delivery Time: 10-25days
Payment Terms: TT,LC,
Supply Ability: 1000 rolls/per day
Detailed Product Description
Material: Carbon Steel Wire Mesh Opening: 12 × 12, 20 × 20, 25 × 25, 12 × 25mm
Wire Diameter: 0.4mm - 1.5mm Roll Width: 0.4m,0.5m,0.6m,0.8m, 1.0m, 1.25m, 1.5m, 2.0m
Roll Length: 15M,30M,50M Ect Surface Treatment: Hot Dipped Galvanized Or Electric Galvanized
Model Number: Xx-01001 Application:: Fence Mesh
Email: Devin@industrialmetalmesh.com Whatsapp: +8615369013183
Highlight:

black galvanized welded wire mesh

,

custom welded wire mesh panels

,

factory price wire mesh panels

Black Galvanized Welded Wire Mesh Panel Factory Customized Price​


Product Description:


Welded Wire Mesh Panels

Our factory provides a variety of welded wire mesh panels (also called welded wire fence panels), which are made of superior quality welded wire mesh, with flat even surface, and firm structure. Welded wire panels are used extensively in building, food, agriculture, and so on. It mainly serves as fencing mesh.

Material: low carbon iron wire, rib wire, deformed bar, stainless steel wire, etc. The biggest deformed bar we can deal with is 12 mm.

The types of welded wire panels:

Welded stainless steel wire mesh panels.
Hot-dip zinc plating welded mesh panels.
Galvanized welded mesh panels.
Low carbon welded mesh panels.
PVC-coated welded wire mesh panels.
Steel Rebar Welded Wire Mesh Panel.

Sizes: Low carbon (black or galvanized) welded wire mesh with wire diameter from 0.8 mm to 1.5 mm, mesh opening 25.4 mm × 12.7 mm, width 800 mm - 1600 mm.

Property: Welded wire mesh panels can enjoy such properties as corrosion resistance, aging resistance, sunshine resistance, and weather resistance. Forms of corrosion resistance include electric galvanizing, hot-dipped galvanizing, PVC spraying, and PVC coating.

Benefits: Welded mesh panels can provide safety where security is needed. And welded wire fence panels are ideal in-fill for welded mine support mesh, machine guards, store partitions, dispatch areas, window guards, perimeter fencing, and similar barrier against unwanted intruders. Welded Mesh also is used where wire mesh and lacing are required to maintain the integrity of tunnels and other large underground excavations.





 Black Galvanized Welded Wire Mesh Panel Factory Customized Price 0

Transparency here reduces post-purchase inquiries. List package contents (e.g., product, USB-C cable, multilingual manual, warranty card) and highlight sustainable packaging (e.g., "100% recyclable materials"). Clarify shipping timelines by region (e.g., "EU: 5–7 business days," "APAC: 10–15 business days") and costs (e.g., "Free shipping on orders over $50"). State customs/duty responsibilities (e.g., "Duties calculated at checkout") and offer damage protection (e.g., "Free replacements for shipping-damaged items"). Add tracking instructions or icons (e.g.,) for clarity.



The Types Of Welded Wire Mesh:
Welded wire mesh is made of high quality low carbon steel wire, PVC coated welded mesh, Galvanized welded mesh devides into hot dipped galvanized and electro galvanized.
Welded wire mesh rolls and Welded wire mesh panels.
The wire of the welded wire mesh is straight or wavy (also called Dutch wire). According to the shape of the mesh surface, it can be divided into: welded mesh sheet and welded mesh roll.

Specification
Opening
Wire Diameter
Inch
metric Unit(mm)
1"x1"
25mmx25mm
2.5mm,2.0mm,1.8mm,1.6mm
2"x2"
50mmx50mm
2.5mm,2.0mm,1.8mm,1.6mm
2"x3"
50mmx70mm
6.0mm,5.0mm,4.0mm,3.0mm,2.5mm,2.0mm,1.8mm
2"x4"
50mmx100mm
6.0mm,5.0mm,4.0mm,3.0mm,2.0mm
2"x6"
50mmx150mm
6.0mm,5.0mm,4.0mm,3.0mm
2"x8"
50mmx200mm
6.0mm,5.0mm,4.0mm,3.0mm
3"x3"
75mmx75mm
6.0mm,5.0mm,4.0mm,3.0mm,2.5mm,2.0mm,1.8mm,1.6mm
3"x4"
75mmx100mm
6.0mm,5.0mm,4.0mm,3.0mm,2.5mm,2.0mm,1.8mm
4"x4"
100mmx100mm
6.0mm,5.0mm,4.0mm,3.0mm
5"x5"
125mmx125mm
6.0mm,5.0mm,4.0mm,3.0mm
6"x6"
150mmx150mm
6.0mm,5.0mm,4.0mm,3.0mm
Technical Note:
1.Standard Panel Length:0.5m-5.8m;Width:0.5m-2.4m
2.Special size available at request

Characteristics of stainless steel 304D

1. Corrosion resistance. Uniform corrosion resistance in dilute hydrochloric acid, dilute sulfuric acid, acetic acid + salt and other environments is far better than 304 material

2. High strength and high wear resistance. The yield strength is 1.3 times or more than 304, and the elongation is not less than 45%.

3. Good welding performance, the strength after welding is higher than 304 material

4.Flame Retardant and safe



Common Applications

Bird Aviary / Zoo Mesh the safest and superior option compared to galvanised
Reinforcing Mesh for corrosive environments in critical structures
Machinery Guard Mesh simple and effective way to protect workers
Anti Climb Mesh to prevent access by being unclimbable
Architectural Mesh including screens and wine racks
Landscaping Mesh including Gabions & Green Walls


Black Galvanized Welded Wire Mesh Panel Factory Customized Price 1

Guarantee
1.We guarantee our customers will get right material and sizes,enough weight,on time delivery at our best service and price
2.The goods can be returned or compensated if the quality is not ok
3.There is no "cheat" and "misunderstanding" in Maishi

Packing

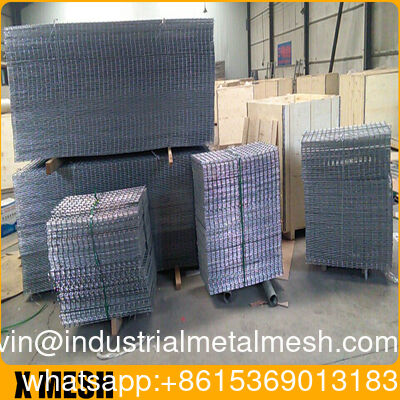

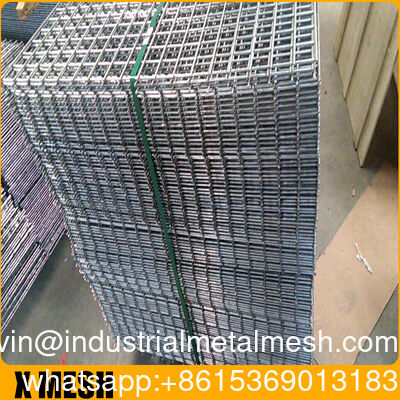

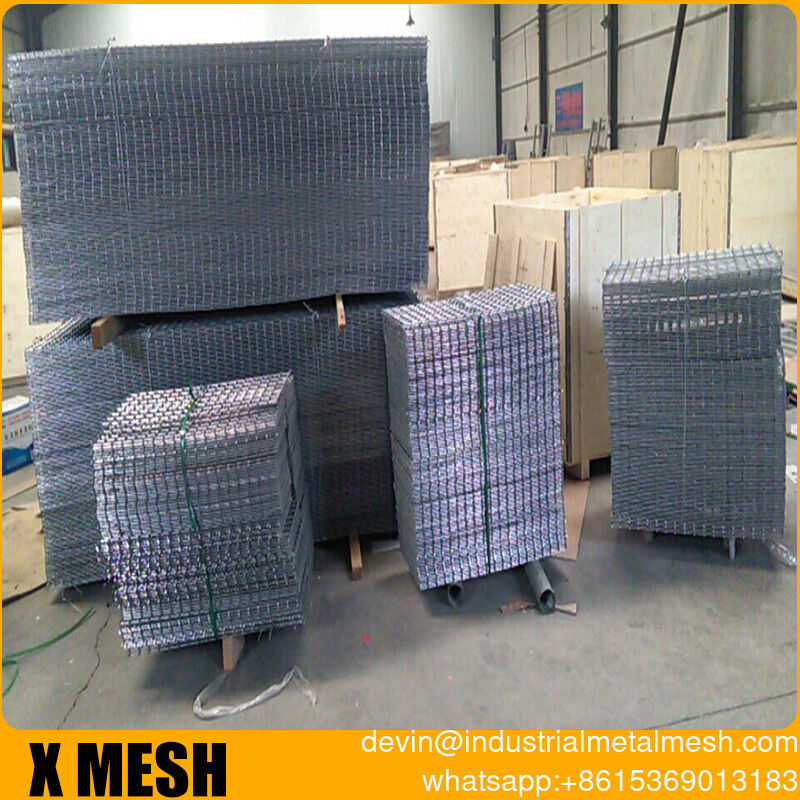

To well protect the meshes, usually we wrap the mesh with plastic film, or waterproof paper.
Sometimes if the customer request, we will wrap another layer of shrink film outside of the waterproof paper.
Then meshes will be load onto pallets or containers.

Payment term
1)100%T/T in advance if order amount less than USD10000.00
2) 30% paid in advance and 70% balance paid before shipment if order amount more than USD10000.00.
3) Irrevocable L/C at sight.
Any other payment term can be negotiable



Applications:
Plaster mesh is widely used as a reinforcing material to protect the internal and external walls,floors and ceilings against cracking in the industrial plants and other architectures.Plaster Welded Wire Mesh has a wide scope. It can be used for the building inside and outside plaster reinforcement. As an essential piece of plastering work, it creates lasting plaster coating for absolutely all surfaces of concrete and brick to wood, and even plaster ceilings. Before plastering, the welded mesh must be mounted on wall by a solid dowel-nails or anchor bolts, which makes the plaster work easier. The Plaster Welded Wire Mesh makes the plaster wall surface smooth and no crack, also excludes the impact of external factors on the wall.


Black Galvanized Welded Wire Mesh Panel Factory Customized Price 2 Black Galvanized Welded Wire Mesh Panel Factory Customized Price 3

Black Galvanized Welded Wire Mesh Panel Factory Customized Price 4 Black Galvanized Welded Wire Mesh Panel Factory Customized Price 5

Qijie Wire Mesh MFG Co.,ltd is a professional manufacturer of fences, wire mesh products with more than 20 years experience. Welcome to visit our factory located in Anping city at any time!


 Black Galvanized Welded Wire Mesh Panel Factory Customized Price 6
