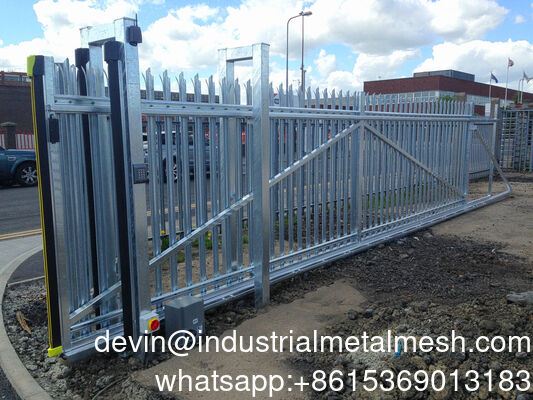

W Section Palisade Fencing Security Fence for Industrial
Steel Palisade Fencing is a high-security perimeter fencing system widely used for industrial, commercial, and infrastructure protection.
Manufactured from high strength steel, it provides excellent anti-climb performance and long-term durability in outdoor environments.
The fence system consists of vertical pales, horizontal rails, and steel posts, forming a strong and rigid structure. With options of hot dip galvanized or powder coated finish, it offers superior corrosion resistance and low maintenance requirements.
Palisade fencing is an ideal solution for factories, warehouses, schools, highways, and other high-security areas where safety and visibility are critical.
1. High Security Anti-Climb Design
Sharp top pales (W section or D section) effectively prevent climbing and intrusion.
2. Strong Steel Structure
Made from heavy-duty steel with high strength, ensuring excellent impact resistance.
3. Corrosion Resistant Finish
Hot dip galvanized or powder coated surface for long service life in harsh environments.
4. Modular Fence System
Includes fence panels, posts, rails, and accessories for easy installation.
5. Suitable for Various Projects
Widely used in industrial, commercial, and infrastructure fencing applications.
palisade fence-PF001
Specification
Height
(mm) | Width
(mm) | Pales (mm) | PCS of Pales | Angle rail
(mm) | PCS of rail | H Post | PCS of post |
| 1800 | 2750 | 71x2.0x1800 | 17 | 50x50x4x2750 | 2 | 100x55x2200 | 1 |
| 2200 | 2750 | 71x2.5x2200 | 17 | 50x50x4x2750 | 2 | 100x55x2600 | 1 |
| 2400 | 3000 | 71x3.0x2400 | 17 | 50x50x5x2750 | 2 | 100x55x3000 | 1 |

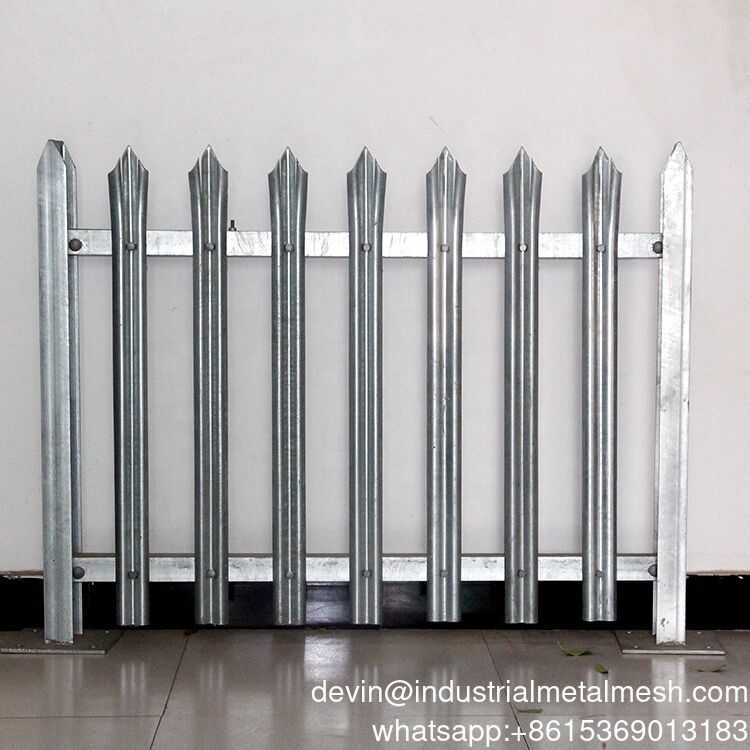

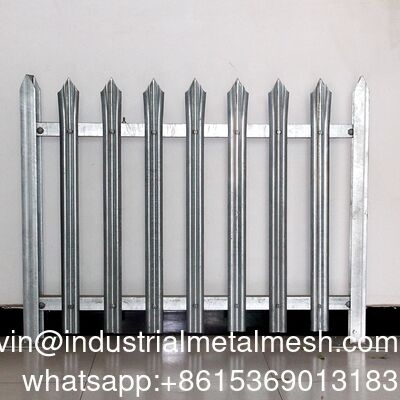

Pales- "W" section Most using type for palisade fencing as vertical pales ,it is always the first choice for the pales .
| Width | Thickness | Surface Treatment | Head | Height |
68mm
-
70mm | 2.0mm
2.5mm
3.0mm | Galvanized and
Electrostatic polyester powder coated or hot dipped galvanized | Single point
Triple point | 1200mm |
| 1500mm |
| 1800mm |
| 2000mm |
| 2100mm |
| 2400mm |
| 2700mm |
| 3000mm |
Comparing with "W" profile pales , this type is more economical.
| Width | Thickness | Surface Treatment | Head | Height |
68mm
-
70mm | 2.0mm
2.5mm
3.0mm | Galvanized and
Electrostatic polyester powder coated or hot dipped galvanized | Single point
Triple point | 1200mm |
| 1500mm |
| 1800mm |
| 2000mm |
| 2100mm |
| 2400mm |
| 2700mm |
| 3000mm |
Its cost is similar with "D" profile ,and more simple than "D" profile.
| Width | Thickness | Surface Treatment | Head | Height |
| 40x40 | 2.0mm
-
3.0mm | Galvanized and
Electrostatic polyester powder coated or hot dipped galvanized | Single point | 1200mm |
| 1500mm |
| 1800mm |
| 2000mm |
| 2100mm |
| 2400mm |
| 2700mm |
| 3000mm |
Palisade fence-PF002
|
Palisade fence-PF003
|
Why choose us
1.Our factory specialize in design,manufacturing galvanized steel or aluminium fence, railing etc
2. Experienced sales team, engineer team, designer team and skillful workers.
3. Advanced equipment, mature production technology, strong production capability.
3. Our products surface is made of branded powder, with strong lacquer coating and strong adhsion Strict quality control system, environment friendly and anti-corrosion.
4. Perfect after-sales service,15-year maintenance.
5. Assembled product is convenient for transportation
W Profile Galvanized Palisade Fencing-001
W Profile Galvanized Palisade Fencing-002
W Profile Galvanized Palisade Fencing-003
