Metal Palisade Fence D and W Shape Palisade Security Fence System

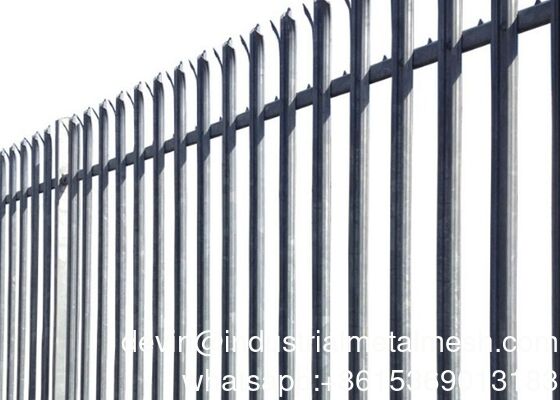

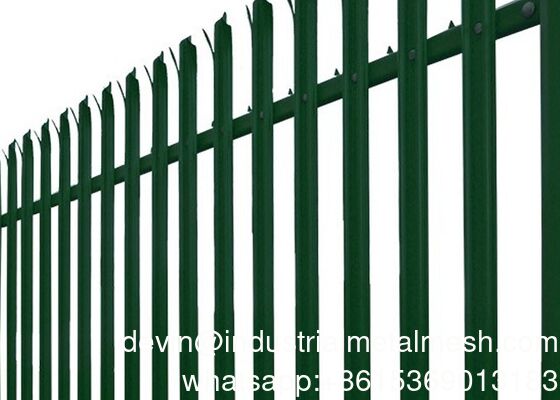

Large Image : Metal Palisade Fence D and W Shape Palisade Security Fence System

Product Details:

Place of Origin:	Hebei, China
Brand Name:	XMESH
Certification:	SGS
Model Number:	palisade fence

Payment & Shipping Terms:

Minimum Order Quantity:	200pcs
Packaging Details:	pallets
Delivery Time:	15-25days
Payment Terms:	TT,LC,
Supply Ability:	1000pieces

Contact Now

Detailed Product Description

Size:	2400 H X 2300 L	Surface Treatment:	Galvanized
IPE Post Size:	100x55mm	Pales:	W Section
Type:	Fencing,Trellis & Gates,protective Grille Profile Or Clamping Profile	Feature:	Easily Assembled,Eco Friendly,Waterproof,Rot Proof,Rodent Proof
Metal Type:	Iron,Steel,Iron Or Galvanized	Frame Finishing:	PVC Coated,Powder Coated,anodized
Frame Material:	Metal	Pressure Treated Wood Type:	Heat Treated,Nature
Color:	White,black,Green,blue,red	Surface Treatment:	Galvanized+PVC Coated,Electric\Hot-Dipped Galvanized+PVC\Powder Coated
Application:	Fence Mesh,Used,Garden,Residential	Usage:	Protection,Garden Decoration,building,Garden Fence/highway/airport
Email:	Devin@industrialmetalmesh.com	Whatsapp:	+8615369013183
Highlight:	D shape palisade security fence , W shape metal fence panels , palisade wire mesh fence system

Metal Palisade Fence D and W Shape Palisade Security Fence System

High Security Palisade Fencing is a high spec security fencing it is designed to provide a formidable barrier against intrusion and theft. It is manufactured using hot-formed and cold-rolled substantial steel sections. It is a cost effective way to providing a high level of security to the boundary line of any property.

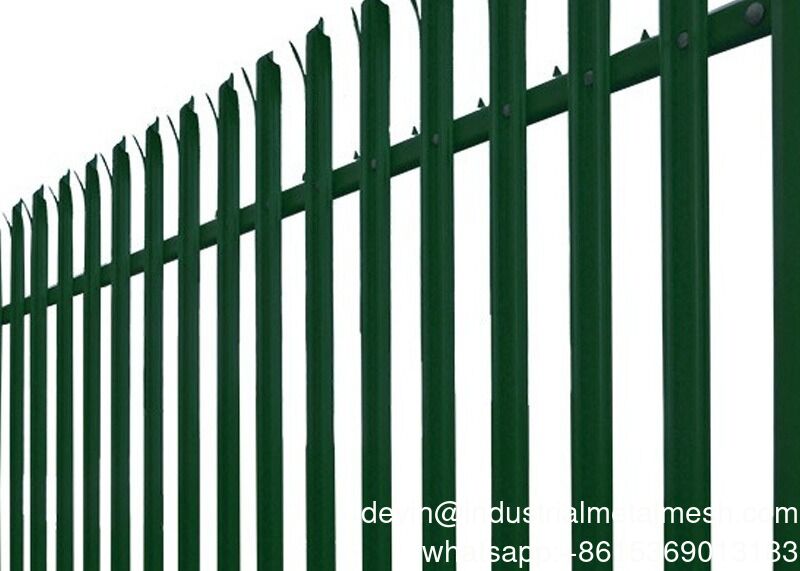

Metal Palisade Fence D and W Shape Palisade Security Fence System 0

Specifications of security palisade fence:

Material: Steel Q195, Q235, Q355.
Composition: pale, rail, post, and fittings
Pale:W pale, D pale, angle steel pale.
Rails:Angle steel rails, U shape rails.
Post: H post, Square Post

1.Instruction Of Pales Section:

------Corrugated "W"section1.5- 3.0 mm thickness, corrugated "D"section 1.5-3.9 mm thickness.

------Corrugated "D" section is used for medium and low security palisade fencing.
------"Angle Steel " palisade fence as normal will use the 3.0-5.0mm thickness steel.

palisade fence-PF001

Steel Palisade Fencing Specification.

High Security Palisade Fencing Specification.

Height	Post Dimensions	Rail Dimensions	Support Legs	Corrugated Steel Palisades
1.2m	102x44 or 100x55	40x40x6mm	1	W - 2.0mm or D - 3.0mm
1.5m	102x44 or 100x55	40x40x6mm	1	W - 2.0mm or D - 3.0mm
1.8m	102x44 or 100x55	40x40x6mm	1	W - 2.0mm or D - 3.0mm
2.0m	102x44 or 100x55	45x45x6mm	1	W - 2.0mm or D - 3.0mm
2.1m	102x44 or 100x55	45x45x6mm	1	W - 2.0mm or D - 3.0mm
2.4m	102x44 or 100x55	45x45x6mm	1	W - 2.0mm or D - 3.0mm
2.7m	102x44 or 100x55	50x50x6mm	1	W - 2.0mm or D - 3.0mm
3.0m	127x76	50x50x6mm	2	W - 2.5mm or D - 3.5mm
3.6m	127x76	50x50x6mm	2	W - 2.5mm or D - 3.5mm

Advantage of this hot dipped steel palisade fence:
1.Fence is using powder coating method,no rust,no flake off,no color fading,bright lastly and stable in color.
2.Easy assembly design makes installation more simple and quick.
3.Four layer anti corrosive treatment and more than twenty years service life fundamentally saves the cost.
4.Our security fencing is made of heavy duty steel that makes cutting the fence line near impossible. Your clients
can rest easy knowing that their garrison fencing will provide the protection needed for their properties.
5.To prevent corrosion our security fencing is fitted with steel caps. Unlike plastic caps, steel caps do not split over time.

Our steel palisade fence Features Include:
1.All pre - galvanised materials used.
2.All materials include high quality powder-coating.
3.14g Black powder coated tek screws or the option of upgrading to anti-vandal fixings.
4.4-hole rail brackets for additional strength for security fencing.
5.A complete range of accessories available. All powder coated to match the panels.

High Security Palisade Fencing application.

Common uses include railway and track protection, schools, colleges and universities, research laboratories, motorways and highways protection, utility companies protection and around industrial sites.
