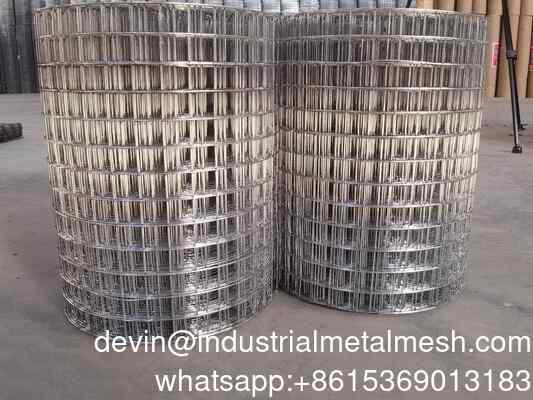

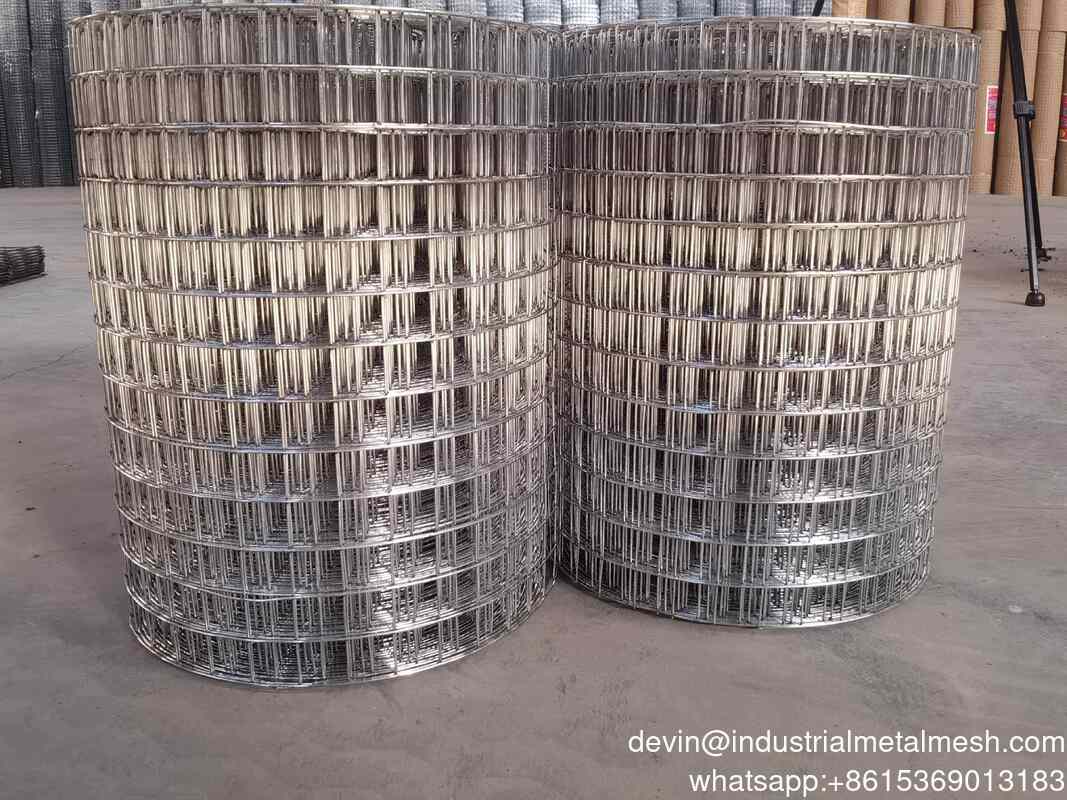

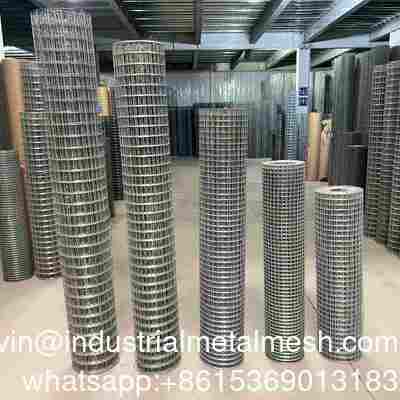

High Quality Zinc Coated Galvanized Bird Cage Welded Wire Mesh Roll
Welded wire panel is made of high quality steel wire through automatic process and sophisticated welding technique, laid horizontally and vertically. The finished products is strong welding, insistence and flat with sturdy structure.Widely used in industry, agriculture, breeding, construction, transportation, mining and other aspects. Such as machine enclosures, animal and animal enclosures, flower and wood enclosures, window guards, passageways enclosures, poultry cages, egg baskets and food baskets in home and office, paper baskets and decorations. The common welding mesh can be used in the construction industry as shuleshe board mesh and partition mesh. It is an ideal material for new high-rise buildings.
Feature
Firm structure.
Aesthetic design.
High tensile strength.
Good flexibility.
Corrosion resistance and anti-rust.
Weather resistance.
Long service life.
Appropriate price.
Garden fences, plant protection covers, tree protection, poultry fences Uses: Make plant garden cages, garden raised beds, protect vegetables, fruits, and plants. Make a poultry fence, but also keep small animals out. Protect the tree from predators and predators. Features: Firm and rust-proof. Anti-bird netting, animal protection netting, chicken netting
|
Galvanized Welded Wire Rebar Mesh Specifications
|
|
Opening (In inch)
|
In metric unit(mm)
|
Wire Diameter(BWG)
|
|
1/4" x 1/4"
|
6.4mm x 6.4mm
|
22,23,24
|
|
3/8" x 3/8"
|
10.6mm x 10.6mm
|
19,20,21,22
|
|
1/2" x 1/2"
|
12.7mm x 12.7mm
|
16,17,18,19,20,21,22,23
|
|
5/8" x 5/8"
|
16mm x 16mm
|
18,19,20,21
|
|
3/4" x 3/4"
|
19.1mm x 19.1mm
|
16,17,18,19,20,21
|
|
1" x 1/2"
|
25.4mm x 12.7mm
|
16,17,18,19,20,21
|
|
1-1/2" x 1-1/2"
|
38mm x 38mm
|
14,15,16,17,18,19
|
|
1" x 2"
|
25.4mm x 50.8mm
|
14,15,16
|
|
2" x 2"
|
50.8mm x 50.8mm
|
12,13,14,15,16
|
|
Technical Note:
1.Standard roll length: 30m,100m;width: 0.5m to 2.5m
2.Special sizes available at request
3.Packing: in waterproof paper in rolls. Custom packing available at request.
|
Welded Mesh Fencing Rolls are welded mesh rolls made of 2.00mm galvanized wire for strength and durability. We also offer them in 2.5mm for higher strength applications.
Mesh apertures range from 50mm to 100mm (see table for different aperture sizes). Suitable for a wide range of applications, it can be cut to shape using bolt cutters, or bent and fabricated as required.
The wire of the welded wire mesh is straight or wavy (also called Dutch wire). According to the shape of the mesh surface, it can be divided into: welded mesh sheet and welded mesh roll.
Galvanized Welded Wire Mesh
Galvanized welded wire mesh can be divided into electrical galvanized welded wire mesh, hot deep galvanized welded wire mesh.
Besides, according different processing methods, there are galvanized before welding wire welded mesh and galvanized after welding welded mesh.
Like electrical galvanized wire welded mesh, hot deep galvanized wire welded mesh, galvanized redrawing wire welded mesh, electrical galvanized(after welding) welded wire mesh, hot deep galvanized(after welding) welded wire mesh.
And Galvanized redrawing welded wire mesh is welding by high quality redrawing low carbon steel wire( the material of this kind wire is high quality hot-rolled wire rod. The main processes is Acid washing, galvanizing, and cold-drawing). The surface of this kind mesh is very bright. It is easy to transport and store. And the price is lower than electrical galvanized welded wire mesh. It is popular in the market. The usage of this kind mesh is same as black welded wire mesh.
Electrical galvanized welded mesh has 15g/m2 zinc coating in common. It was used in industrial, building, travel, mine etc.
Hot deep galvanized welded mesh has thicker zinc. The zinc coating is more than 122g/m2. And the quality is better than electrical galvanize. It usually used in external wall thermal insulation system, concrete pouring,poultry farm, oil, chemical, machines and exports etc.
Application:
In construction in the form of reinforcement brick mesh, welded bar gratings or wire mesh sandwich construction. A wire mesh sandwich construction which comprises an array of line wires, an array of cross wires overlying said array of line wires and a barrier material disposed between the array of line wires and the array of cross welded wires. The array of line wires is joined to said array of cross wires at the points of intersection and through the barrier material, thus securing the barrier material between the array of line wires and the array of cross wires.
