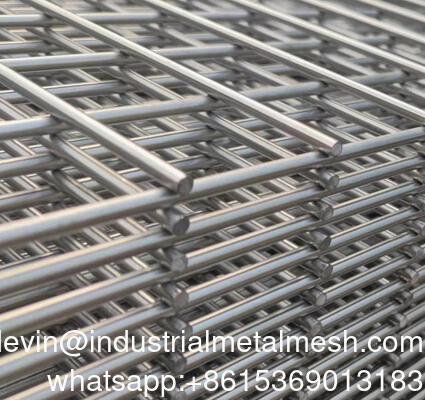

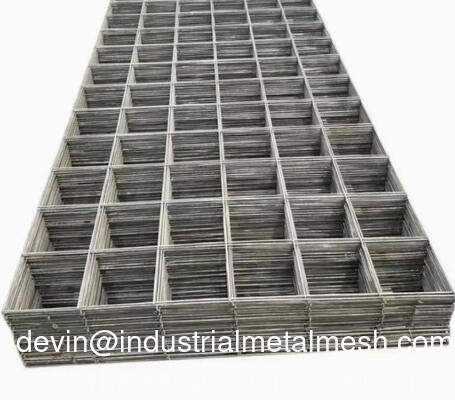

Durable Galvanized /PVC Construction Temporary Welded Wire Mesh Fence Panel Free Sample
Welded wire mesh panels
are widely used in various applications, such as fencing for homes, gardens, sports fields, highways, and bridges, due to their high strength, corrosion resistance, and attractive appearance.
Welded wire mesh panel application
- Security fence panel
- Animal enclosures and caging
- Agriculture, gardening, and farm uses
- Ornamental panels for the infill
- Wall and slope retention using gabions
- Industrial applications, such as filter systems
- Construction us(strengthen the concrete structure
Characteristics of Welded wire Mesh Panel
- Excellent durability - resistant to rust and corrosion
- Smooth surface
- Different gauges and mesh sizes are available.
- Easy to install and store due to weight
- Exceptional tenacity and flexibility
| Specification Of Welded Wire Mesh Panel |
| Opening |
Wire diameter |
| Inch |
mm |
BWG |
mm |
| 1" × 1" |
25mmx25mm |
14# - 11# |
2.0mm - 3mm |
| 2" × 1" |
50mmx25mm |
14# - 8# |
2.0mm - 4mm |
| 2" × 2" |
50mmx50mm |
14# - 8# |
2.0mm - 4mm |
| 3" × 2" |
75mmx50mm |
14# - 6# |
2.0mm - 5mm |
| 3" × 3" |
75mmx75mm |
14# - 6# |
2.0mm - 5mm |
| 4" × 2" |
100mmx50mm |
14# - 4# |
2.0mm - 6mm |
| 4" × 4" |
100mmx100mm |
14# - 4# |
2.0mm - 6mm |
| 5" × 5" |
125mmx125mm |
14# - 4# |
2.0mm - 6mm |
| 6" × 6" |
150mmx150mm |
14# - 4# |
2.0mm - 6mm |
| Material: Low carbon steel wire |
| Surface treatment: Electro Galvanized, Hot dipped galvanized, PVC coated, Powder coated |
| Note: Special size and specifications can be made according to customers requires. |
|
Galvanized Welded Wire Mesh
Galvanized welded wire mesh can be divided into electrical galvanized welded wire mesh, hot deep galvanized welded wire mesh.
Besides, according different processing methods, there are galvanized before welding wire welded mesh and galvanized after welding welded mesh.
Like electrical galvanized wire welded mesh, hot deep galvanized wire welded mesh, galvanized redrawing wire welded mesh, electrical galvanized(after welding) welded wire mesh, hot deep galvanized(after welding) welded wire mesh.
And Galvanized redrawing welded wire mesh is welding by high quality redrawing low carbon steel wire( the material of this kind wire is high quality hot-rolled wire rod. The main processes is Acid washing, galvanizing, and cold-drawing). The surface of this kind mesh is very bright. It is easy to transport and store. And the price is lower than electrical galvanized welded wire mesh. It is popular in the market. The usage of this kind mesh is same as black welded wire mesh.
Electrical galvanized welded mesh has 15g/m2 zinc coating in common. It was used in industrial, building, travel, mine etc.
Hot deep galvanized welded mesh has thicker zinc. The zinc coating is more than 122g/m2. And the quality is better than electrical galvanize. It usually used in external wall thermal insulation system, concrete pouring,poultry farm, oil, chemical, machines and exports etc.
Application:
In construction in the form of reinforcement brick mesh, welded bar gratings or wire mesh sandwich construction. A wire mesh sandwich construction which comprises an array of line wires, an array of cross wires overlying said array of line wires and a barrier material disposed between the array of line wires and the array of cross welded wires. The array of line wires is joined to said array of cross wires at the points of intersection and through the barrier material, thus securing the barrier material between the array of line wires and the array of cross wires.
