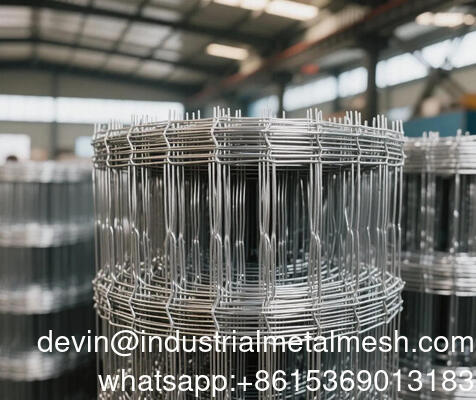

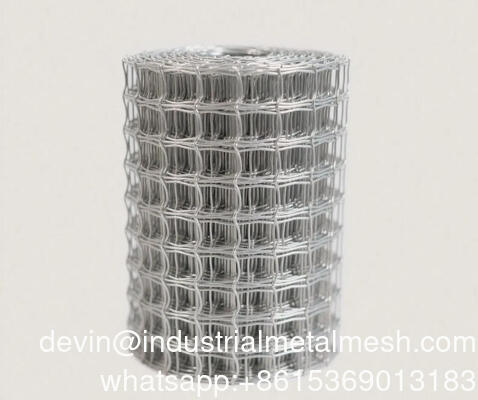

3.0mm/4.0mm Hot DIP Galvanized Welded Wire Mesh Panel

Large Image : 3.0mm/4.0mm Hot DIP Galvanized Welded Wire Mesh Panel

Product Details:

Place of Origin:	CHINA
Brand Name:	QiJie
Certification:	ISO9001:2008, SGS, CE
Model Number:	01WWM

Payment & Shipping Terms:

Minimum Order Quantity:	50 rolls
Price:	USD9.90-USD45.90
Packaging Details:	Plastic film or water proof paper
Delivery Time:	10-25days
Payment Terms:	TT,LC,
Supply Ability:	1000 rolls/per day

Contact Now

Detailed Product Description

Material:	Carbon Steel Wire	Mesh Opening:	12 × 12, 20 × 20, 25 × 25, 12 × 25mm
Wire Diameter:	0.4mm - 1.5mm	Roll Width:	0.4m,0.5m,0.6m,0.8m, 1.0m, 1.25m, 1.5m, 2.0m
Roll Length:	15M,30M,50M Ect	Surface Treatment:	Hot Dipped Galvanized Or Electric Galvanized
Model Number:	Xx-01001	Application::	Fence Mesh
Email:	Devin@industrialmetalmesh.com	Whatsapp:	+8615369013183
Highlight:	3.0mm galvanized welded wire mesh , 4.0mm hot dip welded mesh panel , galvanized welded wire mesh panel

3.0mm/4.0mm Hot DIP Galvanized Welded Wire Mesh Panel

Product Description:

Welded Wire Mesh Panel is made of superior quality welded mesh, with flat even surface, firm structure, be used extensively in building, food, agriculture and so on.

Welded wire mesh panels material: black iron wire , galvanized steel wire, galvanised before welding, galvanised after welding, hot-dipped galvanised welding, PVC coated, PE Coated,Powder coating.

Welded wire mesh panels made from galvanised wire or black iron steel wire, also can be PVC coated or Powder coating to shield them from corrosion and rust.

welded wire mesh panels can be used for a wide range of applications usage like below: security cages, security fencing,metal fencing, dog fening, animal enclosures, aviaries, bird cages, pet hutches, cat fences, pond covers or protection, garden fencing,construction materials.

Feature: corrosion resistance, aging resistance, sunshine resistance and weather resistance.

Forms of corrosion resistance: Electric galvanizing, hot-dipped galvanizing, PVC spraying and PVC coating.

Specification
Opening		Wire Diameter
Inch	metric Unit(mm)	Wire Diameter
1"x1"	25mmx25mm	2.5mm,2.0mm,1.8mm,1.6mm
2"x2"	50mmx50mm	2.5mm,2.0mm,1.8mm,1.6mm
2"x3"	50mmx70mm	6.0mm,5.0mm,4.0mm,3.0mm,2.5mm,2.0mm,1.8mm
2"x4"	50mmx100mm	6.0mm,5.0mm,4.0mm,3.0mm,2.0mm
2"x6"	50mmx150mm	6.0mm,5.0mm,4.0mm,3.0mm
2"x8"	50mmx200mm	6.0mm,5.0mm,4.0mm,3.0mm
3"x3"	75mmx75mm	6.0mm,5.0mm,4.0mm,3.0mm,2.5mm,2.0mm,1.8mm,1.6mm
3"x4"	75mmx100mm	6.0mm,5.0mm,4.0mm,3.0mm,2.5mm,2.0mm,1.8mm
4"x4"	100mmx100mm	6.0mm,5.0mm,4.0mm,3.0mm
5"x5"	125mmx125mm	6.0mm,5.0mm,4.0mm,3.0mm
6"x6"	150mmx150mm	6.0mm,5.0mm,4.0mm,3.0mm
Technical Note:
1.Standard Panel Length:0.5m-5.8m;Width:0.5m-2.4m 2.Special size available at request

Specification List of Welded Wire Mesh:
Opening		Wire Diameter<BWG>
In inch	In metric unit(mm)	Wire Diameter<BWG>
1/4" x 1/4"	6.4mm x 6.4mm	22,23,24
3/8" x 3/8"	10.6mm x 10.6mm	19,20,21,22
1/2" x 1/2"	12.7mm x 12.7mm	16,17,18,19,20,21,22,23
5/8" x 5/8"	16mm x 16mm	18,19,20,21,
3/4" x 3/4"	19.1mm x 19.1mm	16,17,18,19,20,21
1" x 1/2"	25.4mm x 12.7mm	16,17,18,19,20,21
1-1/2" x 1-1/2"	38mm x 38mm	14,15,16,17,18,19
1" x 2"	25.4mm x 50.8mm	14,15,16
2" x 2"	50.8mm x 50.8mm	12,13,14,15,16
Technical Note: 1.Standard roll length: 30m;width: 0.5m to 1.8m 2.Special sizes available at request 3.Packing: in waterproof paper in rolls. Custom packing available at request.

Welded Wire Plaster Wall Mesh

1,High Strength & Durability
Strong welded joints provide reliable reinforcement and extend the service life of concrete structures.
2,Improved Construction Efficiency
Prefabricated mesh panels reduce on-site labor, speed up installation, and ensure consistent quality.
3,Crack Resistance
Enhances tensile strength of concrete and effectively prevents cracking under load.
4,Cost-Effective
Minimizes material waste, lowers labor costs, and shortens project time.
5,Wide Applications
Suitable for residential, commercial, and infrastructure projects such as highways, bridges, tunnels, airports, and industrial buildings.
6,Customization Available
Mesh size, wire diameter, and panel dimensions can be tailored to meet specific project requirements.
7,Corrosion Resistance
Galvanized or coated options ensure long-term protection in harsh environments.

Applications:

Widely used in industry, agriculture, construction, transportation, mining, and other industries. Such as machine protective hoods, beasts and animal fences, window fences, channel fences, poultry cages, paper baskets, and decorations.

Welded Wire Plaster Wall Mesh

Qijie Wire Mesh MFG Co.,ltd is a professional manufacturer of fences, wire mesh products with more than 20 years experience. Welcome to visit our factory located in Anping city at any time!
