Anping Factory Hot Dipped Galvanized Welded Wire Mesh Stainless Steel Welded Wire Mesh

Large Image : Anping Factory Hot Dipped Galvanized Welded Wire Mesh Stainless Steel Welded Wire Mesh

Product Details:

Place of Origin:	CHINA
Brand Name:	QiJie
Certification:	ISO9001:2008, SGS, CE
Model Number:	01WWM

Payment & Shipping Terms:

Minimum Order Quantity:	50 rolls
Price:	USD9.90-USD45.90
Packaging Details:	Plastic film or water proof paper
Delivery Time:	10-25days
Payment Terms:	TT,LC,
Supply Ability:	1000 rolls/per day

Contact Now

Detailed Product Description

Material:	Carbon Steel Wire	Mesh Opening:	12 × 12, 20 × 20, 25 × 25, 12 × 25mm
Wire Diameter:	0.4mm - 1.5mm	Roll Width:	0.4m,0.5m,0.6m,0.8m, 1.0m, 1.25m, 1.5m, 2.0m
Roll Length:	15M,30M,50M Ect	Surface Treatment:	Hot Dipped Galvanized Or Electric Galvanized
Model Number:	Xx-01001	Application::	Fence Mesh
Email:	Devin@industrialmetalmesh.com	Whatsapp:	+8615369013183
Highlight:	hot dipped galvanized welded wire mesh , stainless steel welded wire mesh , Anping factory welded wire mesh

Anping Factory Hot Dipped Galvanized Welded Wire Mesh Stainless Steel Welded Wire Mesh

Product Description:

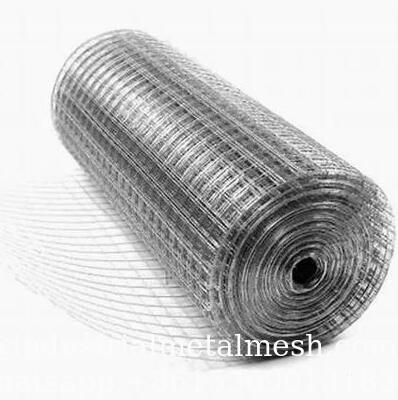

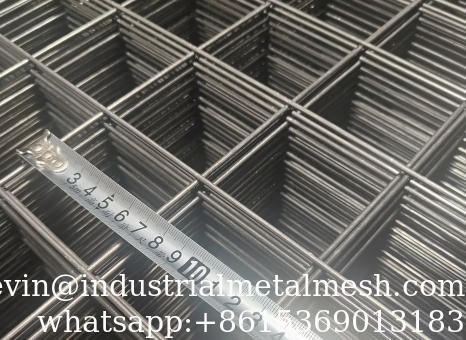

Welded wire mesh, or welded wire fabric, or "weldmesh" is an electric fusion welded prefabricated joined grid consisting of a series of parallel longitudinal wires with accurate spacing welded to cross wires at the required spacing.
Machines used to produce the mesh must be with precise dimensional control. The product in considerable savings in time. labor and money.

1. Main Materials

Low-carbon steel wire (Q195/Q235):Cost-effective, ideal for general applications with surface anti-corrosion treatment.
Stainless steel wire (201/304/316L):Superior acid-alkali resistance, high-temperature resistance and rust-proof performance, suitable for harsh working environments.
Pre-galvanized/drawn wire:Enhanced rust protection after welding, longer service life.

2. Surface Treatment & Anti-corrosion Grade

Treatment Type	Coating Thickness	Advantages	Application Scenarios
Electro-galvanizing	≥20g/m²	Low cost, easy processing	Indoor & short-term use
Hot-dip galvanizing	≥60g/m²	Strong rust resistance	Outdoor long-term use (service life ≥10 years)
PVC/PE Plastic Dipping	Customized thickness	Corrosion-resistant, insulated, aesthetically pleasing	Garden fencing, breeding cages
Stainless Steel	No additional treatment	Permanent corrosion resistance	Humid & corrosive environments

3. Common Specifications

Wire Diameter: 0.5-5.0 mm (Light-duty: 0.5-1.2 mm; Heavy-duty: 1.5-5.0 mm)
Mesh Opening (Square):
- Construction insulation: 12.7×12.7 mm, 25×25 mm
- Fencing & protection: 25×25 mm, 50×50 mm
- Heavy-duty & gabion: 80×100 mm, 100×120 mm
Product Form: Roll mesh (width: 1m/1.2m/1.5m); Mesh panel (standard: 1×2m, customizable up to 3×6m)

4. Core Advantages

Stable structure, no loose joints

Easy to cut, bend and splice, adaptable to complex terrain

High cost performance, low maintenance cost

Multiple anti-corrosion options, suitable for various environments

5. Typical Applications

Construction Engineering: External wall insulation, plastering crack prevention, concrete reinforcement, floor heating mesh, foundation pit support
Agricultural Breeding: Chicken/rabbit/sheep cages, breeding fences, gardening supports, orchard protection
Industry & Transportation: Equipment protection covers, workshop partitions, shelf laminates, highway anti-throw nets
Daily Protection: Window guards, pet cages, decorative nets, filtration & screening

Welded Wire Plaster Wall Mesh

1,High Strength & Durability
Strong welded joints provide reliable reinforcement and extend the service life of concrete structures.
2,Improved Construction Efficiency
Prefabricated mesh panels reduce on-site labor, speed up installation, and ensure consistent quality.
3,Crack Resistance
Enhances tensile strength of concrete and effectively prevents cracking under load.
4,Cost-Effective
Minimizes material waste, lowers labor costs, and shortens project time.
5,Wide Applications
Suitable for residential, commercial, and infrastructure projects such as highways, bridges, tunnels, airports, and industrial buildings.
6,Customization Available
Mesh size, wire diameter, and panel dimensions can be tailored to meet specific project requirements.
7,Corrosion Resistance
Galvanized or coated options ensure long-term protection in harsh environments.

Applications:

Widely used in industry, agriculture, construction, transportation, mining, and other industries. Such as machine protective hoods, beasts and animal fences, window fences, channel fences, poultry cages, paper baskets, and decorations.

Welded Wire Plaster Wall Mesh

Qijie Wire Mesh MFG Co.,ltd is a professional manufacturer of fences, wire mesh products with more than 20 years experience. Welcome to visit our factory located in Anping city at any time!
