304A Stainless Steel Welded Wire Mesh 1.22mx30m

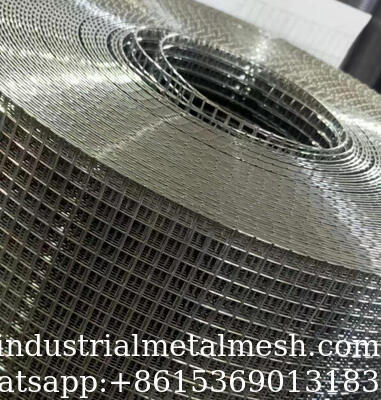

Large Image : 304A Stainless Steel Welded Wire Mesh 1.22mx30m

Product Details:

Place of Origin:	CHINA
Brand Name:	QiJie
Certification:	ISO9001:2008, SGS, CE
Model Number:	01WWM

Payment & Shipping Terms:

Minimum Order Quantity:	50 rolls
Price:	USD9.90-USD45.90
Packaging Details:	Plastic film or water proof paper
Delivery Time:	10-25days
Payment Terms:	TT,LC,
Supply Ability:	1000 rolls/per day

Contact Now

Detailed Product Description

Material:	Carbon Steel Wire	Mesh Opening:	12 × 12, 20 × 20, 25 × 25, 12 × 25mm
Wire Diameter:	0.4mm - 1.5mm	Roll Width:	0.4m,0.5m,0.6m,0.8m, 1.0m, 1.25m, 1.5m, 2.0m
Roll Length:	15M,30M,50M Ect	Surface Treatment:	Hot Dipped Galvanized Or Electric Galvanized
Model Number:	Xx-01001	Application::	Fence Mesh
Email:	Devin@industrialmetalmesh.com	Whatsapp:	+8615369013183
Highlight:	304A stainless steel welded wire mesh , welded wire mesh 1.22mx30m , stainless steel wire mesh with warranty

304A Stainless Steel Welded Wire Mesh 1.22mx30m

Product Description:

Welded wire mesh is manufactured by electrically welding longitudinal and transverse wires at precise intervals, forming a rigid and uniform grid structure with high strength, dimensional stability, and consistent opening accuracy. Each weld point is firmly bonded, ensuring reliable load-bearing performance and long-term structural integrity across the entire panel or roll.

Compared with woven wire mesh, welded wire mesh provides higher rigidity, better flatness, and improved opening control, making it suitable for applications that require durability, stability, and ease of installation. The welded construction helps minimize wire movement during handling and installation, maintaining consistent spacing and performance in practical use.

Welded wire mesh can be supplied in rolls or panels and is widely applied in fencing systems, enclosures, reinforcement works, safety protection, shelving, partitions, animal containment, and general construction projects. Its versatility and uniform structure make it suitable for agricultural, industrial, and commercial applications.

6 x 6mm hole - Rat protection
13 x 13mm hole - Fruit cages, bird protection, engineering uses
13 x 25mm hole - Bird protection, enclosures for small animals
20 x 20mm hole - Rat and squirrel protection
25 x 25mm hole - Fox protection, cat and dog enclosures
50 x 50mm hole - Fox protection, dog enclosures

1. Main Materials

Low-carbon steel wire (Q195/Q235):Cost-effective, ideal for general applications with surface anti-corrosion treatment.
Stainless steel wire (201/304/316L):Superior acid-alkali resistance, high-temperature resistance and rust-proof performance, suitable for harsh working environments.
Pre-galvanized/drawn wire:Enhanced rust protection after welding, longer service life.

2. Surface Treatment & Anti-corrosion Grade

Treatment Type	Coating Thickness	Advantages	Application Scenarios
Electro-galvanizing	≥20g/m²	Low cost, easy processing	Indoor & short-term use
Hot-dip galvanizing	≥60g/m²	Strong rust resistance	Outdoor long-term use (service life ≥10 years)
PVC/PE Plastic Dipping	Customized thickness	Corrosion-resistant, insulated, aesthetically pleasing	Garden fencing, breeding cages
Stainless Steel	No additional treatment	Permanent corrosion resistance	Humid & corrosive environments

3. Common Specifications

Wire Diameter: 0.5-5.0 mm (Light-duty: 0.5-1.2 mm; Heavy-duty: 1.5-5.0 mm)
Mesh Opening (Square):
- Construction insulation: 12.7×12.7 mm, 25×25 mm
- Fencing & protection: 25×25 mm, 50×50 mm
- Heavy-duty & gabion: 80×100 mm, 100×120 mm
Product Form: Roll mesh (width: 1m/1.2m/1.5m); Mesh panel (standard: 1×2m, customizable up to 3×6m)

Specification
Opening		Wire Diameter	Width 0.4-2m Length 5-50m	Stainless steel wire
Inch	Metric Unit
1/4"x1/4"	6.4mmx6.4mm	BWG24-22
3/8"x3/8"	10.6mmx10.6mm	BWG22-19
1/2"x1/2"	12.7mmx12.7mm	BWG23-16
5/8"x5/8"	16mmx16mm	BWG21-18
3/4"x3/4"	19.1mmx19.1mm	BWG21-16
1"x1/2"	25.4mmx25.4mm	BWG21-16
1-1/2"x1 1/2"	38mmx38mm	BWG19-14
1"x2"	25.4mmx12.7mm	BWG16-14
2"x2"	50.8mmx50.8mm	BWG15-12
2"x4"	101.6mmx101.6mm	BWG15-12
4"x4"	101.6mmx152.4mm	BWG15-12
4"x6"	101.6mmx152.4mm	BWG15-12
6"x6"	152.4mmx152.4mm	BWG15-12
6"x8"	15.4mmx203.2mm	BWG14-12
Note:Special specification can be made according to customers requires

4. Core Advantages

Stable structure, no loose joints

Easy to cut, bend and splice, adaptable to complex terrain

High cost performance, low maintenance cost

Multiple anti-corrosion options, suitable for various environments

5. Typical Applications

Construction Engineering: External wall insulation, plastering crack prevention, concrete reinforcement, floor heating mesh, foundation pit support
Agricultural Breeding: Chicken/rabbit/sheep cages, breeding fences, gardening supports, orchard protection
Industry & Transportation: Equipment protection covers, workshop partitions, shelf laminates, highway anti-throw nets
Daily Protection: Window guards, pet cages, decorative nets, filtration & screening

Welded Wire Plaster Wall Mesh

1,High Strength & Durability
Strong welded joints provide reliable reinforcement and extend the service life of concrete structures.
2,Improved Construction Efficiency
Prefabricated mesh panels reduce on-site labor, speed up installation, and ensure consistent quality.
3,Crack Resistance
Enhances tensile strength of concrete and effectively prevents cracking under load.
4,Cost-Effective
Minimizes material waste, lowers labor costs, and shortens project time.
5,Wide Applications
Suitable for residential, commercial, and infrastructure projects such as highways, bridges, tunnels, airports, and industrial buildings.
6,Customization Available
Mesh size, wire diameter, and panel dimensions can be tailored to meet specific project requirements.
7,Corrosion Resistance
Galvanized or coated options ensure long-term protection in harsh environments.

Applications:

Widely used in industry, agriculture, construction, transportation, mining, and other industries. Such as machine protective hoods, beasts and animal fences, window fences, channel fences, poultry cages, paper baskets, and decorations.

Welded Wire Plaster Wall Mesh

Qijie Wire Mesh MFG Co.,ltd is a professional manufacturer of fences, wire mesh products with more than 20 years experience. Welcome to visit our factory located in Anping city at any time!
