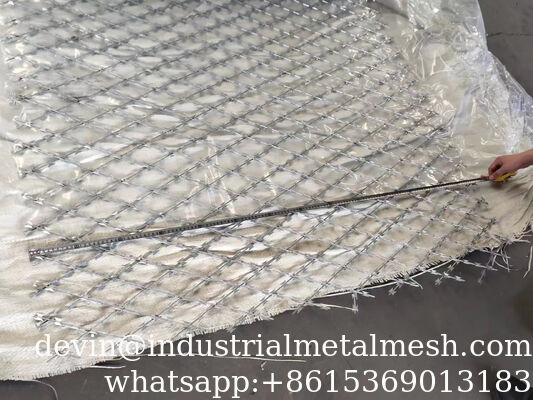

High-Quality 500 Meters Galvanized Razor Wire for Security

Large Image : High-Quality 500 Meters Galvanized Razor Wire for Security

Product Details:

Place of Origin:	HeBei,China
Brand Name:	QiJie
Certification:	qijie
Model Number:	qijie

Payment & Shipping Terms:

Minimum Order Quantity:	1 rolls
Price:	Discuss
Packaging Details:	Wooden carton
Delivery Time:	within 7-30 days
Payment Terms:	30%TT in advance,Balance before loading
Supply Ability:	1500 Roll/Rolls per Week

Contact Now

Detailed Product Description

Material:	Stainless Steel Wire, 316, 304, Plain Steel Galvanized	Technique:	Welded Mesh
Application:	Screen, Protecting Mesh	Hole Shape:	Square Hole, Rectangule Hole
Normal Blade Type:	BTO-22, BTO-30, CBT-60, CBT-65	Email:	Devin@industrialmetalmesh.com
Whatsapp:	+8615369013183
Highlight:	500 meters galvanized razor wire , galvanized concertina razor wire , security razor wire with warranty

High-Quality 500 Meters Galvanized Razor Wire for Security

Razor Barbed Wire, also known as barbed wire breeding net, is used for barbed wire fences in farms and livestock farms, barbed wire fence nets for breeding, garden protection, highway barbed wire fence, factory areas, mining areas, and other fence protection purposes. The main characteristics of this product are convenient transportation, easy installation and construction.
Due to the unique shape of the thorn rope, it is not easy to touch, thus achieving excellent protective effects..

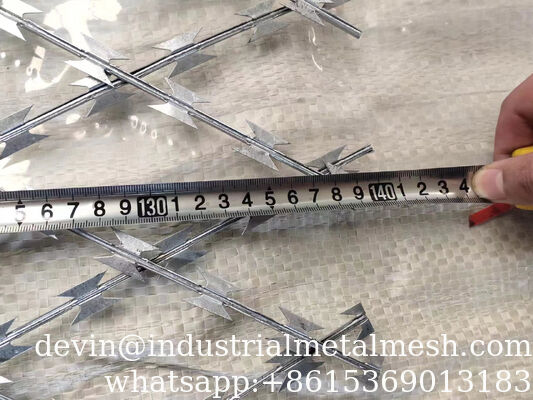

BTO-30 Blade Specifications

Blade Type	Barb Thickness	Barb Length	Barb Width	Barb Spacing	Core Wire Diameter
BTO-30	0.5 ± 0.05	30.0 ± 1	18 ± 1	45 ± 2	2.5 ± 0.1

High-Quality 500 Meters Galvanized Razor Wire for Security

Concertina Flat Wrap Razor Wire Fencing Sizes and Specifications

Flat Wrap Razor Wire
Model	BTO-30	CBT-60	CBT-65
Pattern
Thickness	0.5mm+/-0.05mm	0.5mm+/-0.05mm	0.5mm+/-0.05mm
Core Wire Diameter	2.5mm+/-0.1mm	2.5mm+/-0.1mm	2.5mm+/-0.1mm
Blade Length	30mm+/-1mm	60mm+/-1mm	65mm+/-1mm
Blade Width	18mm+/-1mm	32mm+/-1mm	21mm+/-1mm
Blade Space	45mm+/-1mm	100mm+/-1mm	100mm+/-1mm
Coil Diameter	900/700/500/450mm	900/700/500/450mm	900/700/500/450mm
No. of Loops	34/41/53	34/41/53	34/41/53
Covering Length	8/10/13m	8/10/13m	8/10/13m
Coil Type	Single	Single	Single

Diagram of Concertina Flat Wrap Razor Wire Fencing

bto30 razor wire

Razor barbed wire packages:
1. Waterproof paper and woven bag, and then tied by steel strip.
2. Carton (Mostly for stainless steel concertina wire).
3. Fumigation Wooden Pallet.
4. Customized.

Application:

Application of Concertina Flat Wrap Razor Wire Fencing

Facilities
Industrial and Construction Sites
Laboratories and Research Facilities
Prisons and Correctional Facilities like Prison Fence Wire

razor wire
Application of concertina razor barbed wire
Razor Barbed Wire is widely used in airport , prison, government, bank, and also in living wall, personal house, villatic wall, window, autobahn, railway and border of the fence.

Packing of concertina razor barbed wire
compression rolls, water-proof paper inside, woven bag outside or in carton

High-Quality 500 Meters Galvanized Razor Wire for Security
