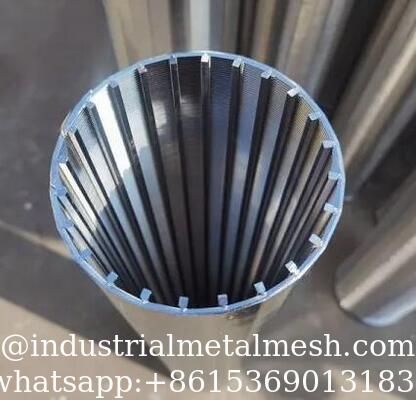

S32750 18S/Q35-12mm Profile Full Welded Wedge Wire Screen With Q35 Support Rod

S32750 18s Profile Full Welded Wedge Wire Screen With Q35 Support Rod

Full Welded Wedge Wire Screen materials: 201, 304, 316L stainless steel wire.

The profile wire stainless steel wedge wire screen is created by wrapping a profile wire cylindrical around longitudinal placed support rods. All wires and rods are resistance welded at each point of contact.

The numerous combinations of profile wires and support rods, and the wide range of apertures between the wires and rods (fixed or variable) allow us to design a screen according your technical or cosmetic specification.

Full Welded Wedge Wire Screen Applications :

Stainless steel (304, 316, 316L) wedge wire screen is widely used in modern industry. We can customize products of various specifications for:

Full Welded Wedge Wire Screen Characteristics:

The welded stainless steel wedge wire screen is made up of rods and profile wire.

The rod can be round wire, triangular wire or trapezoid wire.

The profile wire is triangular wire (V-shaped wire).

This type of pipe screen has a structure and high open area, as well as accurate slot dimension.

At the same time, stainless steel pipe screen has heat-resisting, anti-corrosive, good machine capability, last long, safety and reliability and so on characteristics. It can be used in many kinds of medium filtering.

Full Welded Wedge Wire Screen Specification:

Wedge wire screen tube ending types


Applications
Water Wells
Support and filter medium
Solid-liquid separation
Filter application
Sewage treatment
Dehydration application

Sand treatment

Packing
Wedge wire screen tube should be packed firmly and securely. When packing, wedge wire screen tube appears in pipes. They are wrapped with moisture-proof paper or other packing materials inside. The outer package should be plywood pallets or boxes. We can also pack according to customer requirements.
