S32750 18S/Q35-12mm Profile Full Welded Wedge Wire Screen
Full Welded Wedge Wire Screen materials: 201, 304, 316L stainless steel wire.

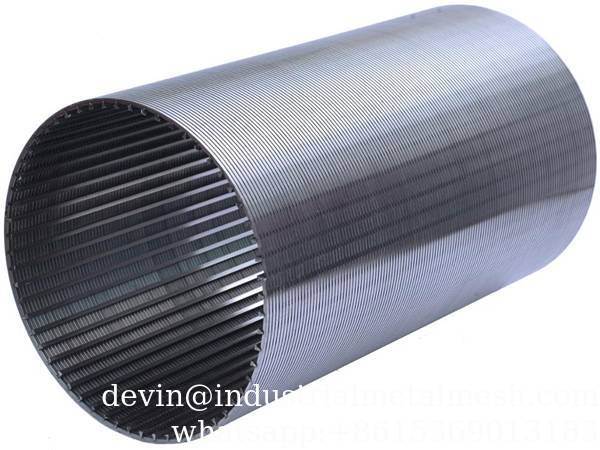

The profile wire stainless steel wedge wire screen is created by wrapping a profile wire cylindrical around longitudinal placed support rods. All wires and rods are resistance welded at each point of contact.
The numerous combinations of profile wires and support rods, and the wide range of apertures between the wires and rods (fixed or variable) allow us to design a screen according your technical or cosmetic specification.
Full Welded Wedge Wire Screen Applications :
Stainless steel (304, 316, 316L) wedge wire screen is widely used in modern industry. We can customize products of various specifications for:
- Wastewater treatment
- Pharmaceutical factory
- Mechanical equipment
- Food and beverage
- Sugar mill
- Mineral and aggregate processing
- Desalination of seawater
- Oil extraction
- Pharmacy
- Coal mining
- Power plant
- Plastics extrusion
- Distillery, brewery
- Metallurgy
- Paper and pulp mill
- Chemical industry
- Water Supply
- Machine coolant filtration
-
Full Welded Wedge Wire Screen Characteristics:
The welded stainless steel wedge wire screen is made up of rods and profile wire.
The rod can be round wire, triangular wire or trapezoid wire.
The profile wire is triangular wire (V-shaped wire).
This type of pipe screen has a structure and high open area, as well as accurate slot dimension.
At the same time, stainless steel pipe screen has heat-resisting, anti-corrosive, good machine capability, last long, safety and reliability and so on characteristics. It can be used in many kinds of medium filtering.
Johnson Wedge Wire Well Screen Pipe Q35, meticulously crafted using a combination of V-shaped wire and rods. The wire is welded onto the rod at each intersection point, creating a robust and reliable product. With a unique structure boasting a high open area, these water well screens ensure accurate slot dimensions. They offer exceptional heat resistance, anti-corrosive properties, excellent machine capability, durability, and high safety and reliability, making them ideal for various medium filtering applications.
Surface profiles
| Name |
Width |
Height |
|
|
| Ø 0.8 |
0.8 |
|
Round wire for support tubes |
|
| Ø 1 |
1 |
|
Round wire for support tubes |
|
| Ø 2 |
2 |
|
Round wire for support tubes |
|
| 4S |
0.45 |
1.2 |
Special wire for fine slots |
|
| 5S |
0.5 |
1.25 |
Special wire for fine slots |
|
| 6SC |
0.6 |
1.4 |
Special wire for small slots |
|
| 10S |
0.75 |
1.425 |
|
|
| 11S |
0.75 |
1.80 |
|
|
| 12S |
1 |
2 |
|
|
| 12SL |
1 |
2 |
Diamond-shaped wire for support tubes |
|
| 15S |
1.2 |
2.5 |
|
|
| 18S |
1.5 |
2.5 |
|
|
| 18SC |
1.5 |
2.8 |
Triangular profile with wear head |
|
| 22S |
1.8 |
3.7 |
|
|
| 28S |
2.2 |
4.5 |
|
|
| 28SC |
2.2 |
4.5 |
Triangular profile with wear head |
|
| 28ST |
2.28 |
3.55 |
|
|
| 34S |
2.8 |
5.5 |
|
|
| 42S |
3.4 |
6.8 |
|
|
| 40A |
3 |
6 |
|
|
| 50S |
3.4 |
7.5 |
|
|
| 50SC |
3.4 |
7.5 |
Triangular profile with wear head |
|
Support profiles
| Name |
Width |
Height |
|
|
| Q22 |
2 |
2.3 |
|
|
| Q25 |
2 |
3 |
|
|
| Q35 |
3 |
5 |
|
|
| Q53 |
5 |
3 |
for flexible screens |
|
| D45 |
3,8 |
5,6 |
tear drop shaped |
|
| D56 |
5 |
6,5 |
tear-drop shaped; only for continuous cylinders |
|
| 10x3 |
3 |
10 |
|
|
| 11X5 |
5 |
11 |
|
|
| 12X3 |
3 |
12 |
|
|
| 15X3 |
3 |
15 |
|
|
| 25X3 |
3 |
25 |
|
|
| 35x3 |
3 |
35 |
|
|
| 38x3 |
3 |
38 |
|
|
| 50X3 |
3 |
50 |
|
|
Alloys
Trislot specializes in many different stainless steel alloys:
| AISI |
DIN |
UNS |
Trade name |
| |
3.7035 |
|
Titanium GR II |
| 430 |
1.4016 |
S43000 |
|
| 304 |
1.4301 |
S30400 |
|
| 321 |
1.4541 |
S32100 |
|
| 347 |
1.4550 |
S34700 |
|
| 316L |
1.4404 |
S31603 |
|
| 316Ti |
1.4571 |
|
|
| |
1.4539 |
N08904 |
Uranus B6 |
| |
2.4360 |
N04400 |
Monel 400 |
| |
2.4819 |
N10276 |
Hastelloy C276 |
| |
1.4462 |
S31803 |
Uranus 45N Duplex |
| |
|
|
Super duplex |
| |
1.4547 |
|
254 SMO |
| |
|
|
Impact + (wear resistant material) |
Wedge wire screen tube ending types
Applications
Water Wells
Support and filter medium
Solid-liquid separation
Filter application
Sewage treatment
Dehydration application
Sand treatment
Packing
Wedge wire screen tube should be packed firmly and securely. When packing, wedge wire screen tube appears in pipes. They are wrapped with moisture-proof paper or other packing materials inside. The outer package should be plywood pallets or boxes. We can also pack according to customer requirements.
