Weaving and Characteristics: Doubles intermediate crimp, lock crimp, flat top crimp;Double crimp, sturdy structure.
Usage:Crimped Wire Mesh is used in Mine, coal Factory, Contruction and orther industries.Some galvanized crimped wire mesh and stainless steel crimped wire mesh are for roasting of flour our stucture.
| MODEL |
LJ-01 |
LJ-02 |
LJ-03 |
| Wire diameter |
1-2.5mm |
2.5-6mm |
7-14mm |
| Mesh size |
2-30mm |
3-100mm |
20-200mm |
| Width |
1600mm |
2500mm |
2500mm |
| Motor |
3.0KW |
5.5KW |
7.5KW |
| Speed |
30-40row/min |
20-40row/min |
25row/min |
| Outside size |
4000*2300*1800mm |
3500*2100*1500mm |
2900*2100*1700mm |
| Weight |
3000kgs |
3200kgs |
3500kgs |

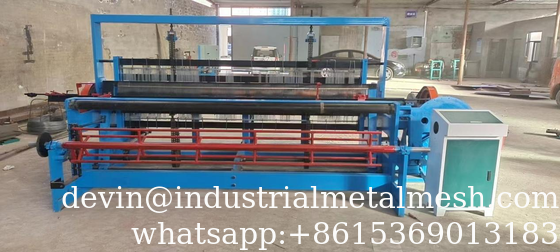

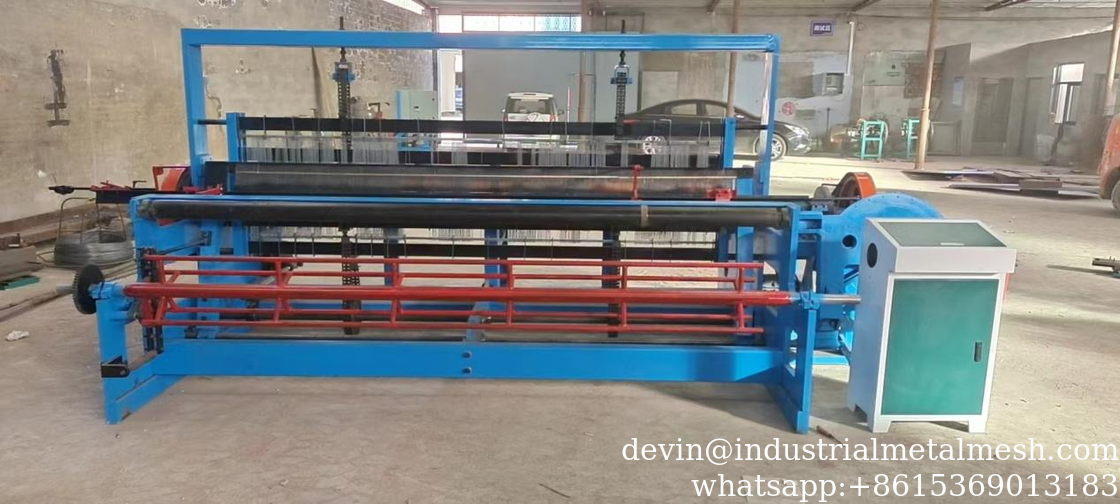

Main engine

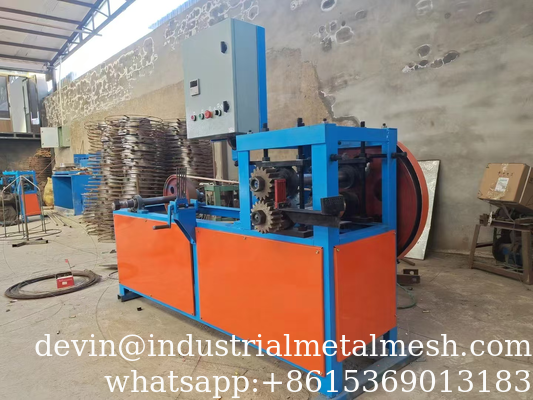

Auxiliary Machine
radial wire shaft
A knitting machine consists of the above three parts as a set. Here is the complete set price and specifications.
| Weave width |
1500MM |
2000MM |
2500MM |
3000MM |
| Length |
3500MM |
4000MM |
4500MM |
5000MM |
| Width |
2100MM |
2100MM |
2100MM |
2100MM |
| Height |
1400MM |
1400MM |
1400MM |
1400MM |
| motor power |
2.6KW+1.5KW+2.2KW+3KW |
2.6KW+1.5KW+3KW+3KW |
2.6KW+1.5KW+4KW+33KW |
2.6KW+1.5KW+5.5KW+3KW |
| weight |
2100KG |
2600KG |
3000KG |
3500KG |
| Speed |
20-40times/min |
= |
= |
= |
| Wire gauge |
0.75-2.5MM wire dia. |
= |
= |
= |
| Price |
Usd7100 |
Usd7800 |
Usd8600 |
Usd10000 |
Note: One set of molds is included with each machine model. Remaining molds are priced separately. Special voltages require an additional usd450 per set. This price is the factory price only and does not include tax.
Fully automatic CNC knitting machine(1.5MM-4.5MM)
MainMachine
The two images show different models; the price list will differentiate between light and heavy-duty models. Please pay attention to the prices!
Auxiliary machine
radial wire shaft
A knitting machine consists of the above three parts as a set. Here is the complete set price and specifications.
| Weave width |
2000MM |
2500MM |
3000MM |
|
| Length |
3400MM |
3900MM |
4400MM |
|
| Width |
2100MM |
2100MM |
2100MM |
|
| Height |
1500MM |
1500MM |
1500MM |
|
| motor power |
2.6+2.6+1.5+5.5+3.8+4 |
2.6+2.6+1.5+5.5+3.8+4 |
2.6+2.6+1.5+6+3.8+4 |
|
| Speed |
25-40time/min |
= |
= |
|
| Weight |
2600kg |
3000kg |
3400kg |
|
| Wire gauge |
1.5-4.5MM |
= |
= |
|
| Light price |
Usd8600 |
Usd9300 |
Usd10300 |
|
| Heavy price |
Usd9600 |
Usd10300 |
Usd11500 |
|
Note: One set of molds is included with each machine model. Remaining molds are priced separately. Special voltages require an additional usd500 per set. This price is the factory price only and does not include tax.
Fully automatic CNC knitting machine(2-6MM)
Main Machine
Auxiliary machine
The knitting machine consists of the above two parts as a set. The complete set price and specifications are as follows.
| Weave width |
2000MM |
2500MM |
| Length |
3500MM |
4000MM |
| Width |
2100MM |
2100MM |
| Height |
1500MM |
1500MM |
| Motor power |
2.6+3.8+4+5.5+1.5+4 |
= |
| Speed |
5-20times/min |
= |
| Weight |
3000kg |
3400kg |
| Wire Gauge |
2-6MM |
2-6MM |
| Price |
Usd9600 |
Usd10300 |
Note: One set of molds is included with each machine model. Remaining molds are priced separately. Special voltages require an additional usd500 per set. This price is the factory price only and does not include tax.
Semi-automatic knitting machine(1.8-6.5MM)
Note: Semi-automatic machines use manual threading methods.
Main Machine
Auxiliary machine
The knitting machine consists of the above two parts as a set. The complete set price and specifications are as follows.
| Weave width |
2000MM |
2500MM |
3000MM |
4000MM |
| Length |
3000MM |
3500MM |
4000MM |
5000MM |
| Width |
2100MM |
2100MM |
2100MM |
2100MM |
| Height |
1500MM |
1500MM |
1500MM |
1500MM |
| Motor power |
4+4+1.5+4 |
= |
4+5.5+1.5+4 |
= |
| Speed |
10-25times/min |
= |
= |
= |
| Weight |
3000kg |
3400kg |
3800KG |
4000KG |
| Wire Gauge |
2-6MM |
2-6MM |
= |
= |
| Price |
Usd6200 |
Usd7000 |
Usd7700 |
Usd8500 |
Note: One set of molds is included with each machine model. Remaining molds are priced separately. Special voltages require an additional usd500 per set. This price is the factory price only and does not include tax.
Semi-automatic hydraulic braiding machine(6-12MM)
Note: Semi-automatic machines use manual threading methods.
Main Machine
Auxiliary machine
The knitting machine consists of the above two parts as a set. The complete set price and specifications are as follows.
| Weave width |
2000MM |
2500MM |
3000MM |
4000MM |
| Length |
2700MM |
3200MM |
3700MM |
4700MM |
| Width |
2100MM |
2100MM |
2100MM |
2100MM |
| Height |
1800MM |
1800MM |
1800MM |
1800MM |
| Motor power |
11kw |
= |
= |
= |
| Speed |
10-25times/min |
= |
= |
= |
| Weight |
2600kg |
3000kg |
3300kg |
3600kg |
| Wire Gauge |
6-12MM |
= |
= |
= |
| Price |
Usd8300 |
Usd8600 |
Usd9300 |
Usd10300 |
