Impact Resistant Polyurethane Coated Steel Bar Screen High Elasticity Anti-Pegging Mining Mesh

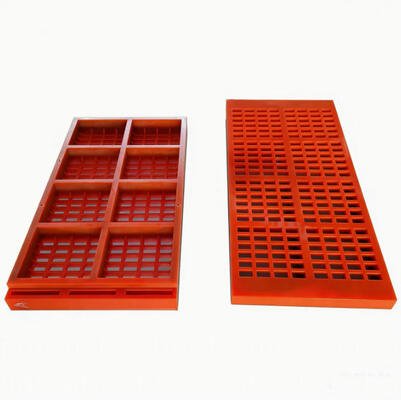

Large Image : Impact Resistant Polyurethane Coated Steel Bar Screen High Elasticity Anti-Pegging Mining Mesh

Product Details:

Place of Origin:	China
Brand Name:	qijie
Certification:	polyurethane screen mesh
Model Number:	polyurethane screen mesh

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Packaging Details:	wood case
Delivery Time:	15-18days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	100pcs

Contact Now

Detailed Product Description

Features:	Even Mesh, Strong Structure	Hole Size:	2.5mm - 130mm
Application:	Mining, Quarrying, Mineral Processing	Surfacetreatment:	Galvanized, Painted, Or Coated
Technic:	Woven Mesh	Free Sample:	Yes
Hook:	Hook With Steel Sheet	Install:	Hooked
Elastic Resilience:	34 Percent	Specification:	1.5M2.0M ； 2M3M ； 3M*2.5M
Surface Treatment:	Galvanized Or Painted.	Installationmethod:	Bolted Or Hooked Onto Screen Frames
Hole Shape:	Rectangle	Surface:	Natural Powder Coating
Productname:	Mining Screen Mesh
Highlight:	Impact resistant mining screen mesh , Polyurethane coated steel bar screen , High elasticity anti-pegging mining mesh

Impact Resistant Polyurethane Coated Steel Bar Screen High Elasticity Anti-Pegging Mining Mesh

Description:

Impact Resistant Polyurethane Coated Steel Bar Screen High Elasticity Anti-Pegging Mining Mesh is designed for extreme-duty screening applications in mining, quarrying, and mineral processing industries. It combines a high-strength steel bar core with a premium polyurethane coating, delivering excellent impact resistance, flexibility, and long operational lifespan under heavy material loads.

The high-elasticity PU layer effectively absorbs vibration and impact energy, reducing structural fatigue and improving overall screen stability. Its anti-pegging and anti-blinding design ensures continuous material flow, preventing blockages caused by wet, sticky, or fine particles. This significantly enhances screening efficiency and reduces downtime during operation.

Engineered for harsh working environments, the polyurethane coating provides superior resistance to abrasion, corrosion, and chemical exposure, making it ideal for handling ores, coal, aggregates, and other abrasive materials. Compared with conventional steel screens, it offers lower noise levels, reduced maintenance requirements, and improved safety performance.

With its robust construction and optimized screening performance, this PU coated steel bar screen is a reliable solution for high-impact mining operations requiring efficiency, durability, and long service life.

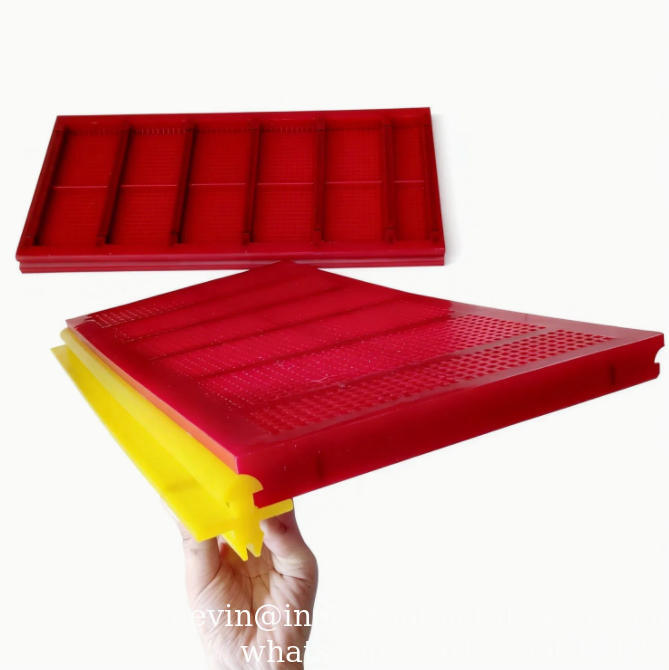

Tensioned polyurethane screen mesh (metallic hooks)

Tensioned polyurethane screen mesh (metallic hooks) is a kind that widely used at present. External force from two side hooks was attached to the beam to form a better elastic screen surface. It has a special designed fastening hooks which can clamp screens into the separator. with the lightweight it is easy to install in screening situations where material specifications are frequently changed.

Tensioned polyurethane screen is ideal for all screening applications where screening efficiency and noise reduction is crucial.

MODEL	DIMENSION(MM) LWH	APERTURE(mm)
DZ01S Tension Screen(with steel wire)	2400150025	44-66
	2400150025	88-1212
	2400150028	1515-3535
	2400150030	4040-6060
	2400150040	6565-9090
	accept customized production
DZ02S Skeleton Screen (with steel skeleton)	2400150025	44-66
	2400150025	88-1212
	2400150028	1515-3535
	2400150030	4040-6060
	2400150040	6565-9090
	accept customized production
DZ03S Dewatering Screen (with steel skeleton)	30530530	0.112-2.512
	30530540
	60060040
	50055040
	600240040
	accept customized production
DZ04S Flip-flow Screen	W330mm*H6-8mm	as the requirements
DZ05S High frequency screen	1220*700	0.063mm
	1220*840	1mm
		2mm
DZ06S Wave screen	accept customized products for all size and aperture


other polyurethane Screen	accept customized products for all size and aperture

Material	Polyurethane elastomer with steel wire reinforcement
Aperture Range	0.1-170mm (customizable)
Max. Operating Temperature	-40°C to +80°C
Vibration Resistance	Up to 50G acceleration
Certifications	ISO-compliant, RoHS, and REACH standards

Key Features & Benefits

√ Unmatched Durability & Load Capacity

Steel-Reinforced Structure: Integrated steel wire skeleton and high-grade PU elastomers ensure high tensile strength and resistance to deformation, supporting heavy loads and harsh operating conditions.

Extended Service Life: Lasts 8-10x longer than metal screens and 3x longer than stainless steel alternatives, reducing replacement frequency and downtime.

√ Anti-Clogging & Self-Cleaning Design

140° Tapered Apertures: Unique hole geometry prevents material buildup, ideal for sticky or damp substances like coal, wet ores, and sludge.

Dynamic Self-Cleaning: Secondary harmonic vibrations during operation dislodge trapped particles, maintaining 95%+ screening efficiency.

√ Noise Reduction & Safety Compliance

Reduces operational noise by 5-20 dB compared to metal screens, ensuring compliance with workplace safety regulations.

Flame-retardant, non-toxic, and resistant to oils, chemicals, and extreme temperatures (-40°C to +80°C).

√ Easy Installation & Low Maintenance

Embedded Bolt-Free Design: Utilizes hook-type or tension-clamped mounting systems (e.g., 90° side clamps) for quick installation and minimal maintenance effort.

Lightweight (density: 1.32 kg/m³) reduces strain on vibrating equipment, lowering energy consumption by up to 30%.

√ Customizable Solutions

Aperture Sizes: Ranging from 0.1mm to 170mm, with options for square, round, or rectangular holes.

Compatible with all vibrating screen models, including flip-flow and linear motion systems.

Applications:

Mining & Mineral Processing – Screening, grading, and dewatering of ores, coal, sand, and aggregates.
Quarry & Construction – Crushed stone sorting, sand washing, and gravel classification.
Industrial Filtration – Chemical, fertilizer, and pharmaceutical powder separation.
Environmental Projects – Tailings dry discharge, sludge dewatering, and recycling operations.
Infrastructure & Landscaping – Synthetic turf for construction fencing, erosion control, and decorative use.

Customization Service:

We support full customization based on your specific requirements, including:

Aperture size, shape, and layout
Material type and thickness
Dimensions and mounting design
Special patterns (e.g., stepped, ribbed, perforated)
Custom orders can be produced according to provided drawings or samples, ensuring perfect fit and performance for your equipment.

polyurethane screen mesh

pu screen mesh
