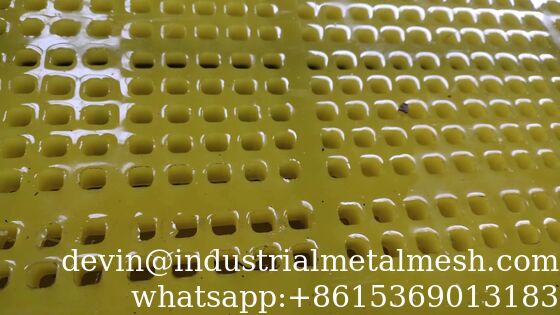

0.053mm Aperture Size of Polyurethane Fine Screen Mesh for Quartz Sand

0.053mm Aperture Size of Polyurethane Fine Screen Mesh for Quartz Sand
0.053mm Aperture Size of Polyurethane Fine Screen Mesh for Quartz Sand 0.053mm Aperture Size of Polyurethane Fine Screen Mesh for Quartz Sand

Large Image :  0.053mm Aperture Size of Polyurethane Fine Screen Mesh for Quartz Sand

Product Details:
Place of Origin: China
Brand Name: qijie
Certification: polyurethane screen mesh
Model Number: polyurethane screen mesh
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Packaging Details: wood case
Delivery Time: 15-18days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100pcs
Contact Now
Detailed Product Description
Features: Even Mesh, Strong Structure Hole Size: 2.5mm - 130mm
Application: Mining, Quarrying, Mineral Processing Surfacetreatment: Galvanized, Painted, Or Coated
Technic: Woven Mesh Free Sample: Yes
Hook: Hook With Steel Sheet Install: Hooked
Elastic Resilience: 34 Percent Specification: 1.5M*2.0M ； 2M*3M ； 3M*2.5M
Surface Treatment: Galvanized Or Painted. Installationmethod: Bolted Or Hooked Onto Screen Frames
Hole Shape: Rectangle Surface: Natural Powder Coating
Productname: Mining Screen Mesh
Highlight:

0.053mm polyurethane fine screen mesh

,

quartz sand mining screen mesh

,

polyurethane screen mesh for quartz sand

0.053mm Aperture Size of Polyurethane Fine Screen Mesh for Quartz Sand​

Description:


Durable PU screens for mining (0.5–10mm) are built to withstand the toughest conditions, from underground coal mines to open-pit iron ore operations. The screens' manganese steel skeleton (10mm thick) provides structural rigidity, while the polyurethane material flexes to absorb impacts—reducing wear. Their 28–45% open area balances efficiency with durability.


In field tests, these screens lasted 3x longer than standard rubber panels, with a service life of 6–12 months. They resist corrosion from mine water, while the anti-blinding design ensures consistent performance with clay-rich ores. Installation is via metal hooks, with a weight of 8kg per panel that's manageable for two workers.


Tensioned polyurethane screen mesh (metallic hooks)

Tensioned polyurethane screen mesh (metallic hooks) is a kind that widely used at present. External force from two side hooks was attached to the beam to form a better elastic screen surface. It has a special designed fastening hooks which can clamp screens into the separator. with the lightweight it is easy to install in screening situations where material specifications are frequently changed.

Tensioned polyurethane screen is ideal for all screening applications where screening efficiency and noise reduction is crucial.

Product Specification

MODEL DIMENSION(MM) L*W*H APERTURE(mm)
DZ01S Tension Screen(with steel wire) 2400*1500*25 4*4-6*6
2400*1500*25 8*8-12*12
2400*1500*28 15*15-35*35
2400*1500*30 40*40-60*60
2400*1500*40 65*65-90*90
accept customized production
DZ02S Skeleton Screen (with steel skeleton) 2400*1500*25 4*4-6*6
2400*1500*25 8*8-12*12
2400*1500*28 15*15-35*35
2400*1500*30 40*40-60*60
2400*1500*40 65*65-90*90
accept customized production
DZ03S Dewatering Screen (with steel skeleton) 305*305*30 0.1*12-2.5*12
305*305*40
600*600*40
500*550*40
600*2400*40
accept customized production
DZ04S Flip-flow Screen W330mm*H6-8mm as the requirements
DZ05S High frequency screen 1220*700 0.063mm
1220*840 1mm
  2mm
DZ06S Wave screen accept customized products for all size and aperture
other polyurethane Screen accept customized products for all size and aperture
polyurethane screen mesh

Material Polyurethane elastomer with steel wire reinforcement
Aperture Range 0.1-170mm (customizable)
Max. Operating Temperature -40°C to +80°C
Vibration Resistance Up to 50G acceleration
Certifications ISO-compliant, RoHS, and REACH standards

Key Features & Benefits

√ Unmatched Durability & Load Capacity

Steel-Reinforced Structure: Integrated steel wire skeleton and high-grade PU elastomers ensure high tensile strength and resistance to deformation, supporting heavy loads and harsh operating conditions.

Extended Service Life: Lasts 8-10x longer than metal screens and 3x longer than stainless steel alternatives, reducing replacement frequency and downtime.

√ Anti-Clogging & Self-Cleaning Design

140° Tapered Apertures: Unique hole geometry prevents material buildup, ideal for sticky or damp substances like coal, wet ores, and sludge.

Dynamic Self-Cleaning: Secondary harmonic vibrations during operation dislodge trapped particles, maintaining 95%+ screening efficiency.

√ Noise Reduction & Safety Compliance

Reduces operational noise by 5-20 dB compared to metal screens, ensuring compliance with workplace safety regulations.

Flame-retardant, non-toxic, and resistant to oils, chemicals, and extreme temperatures (-40°C to +80°C).

√ Easy Installation & Low Maintenance

Embedded Bolt-Free Design: Utilizes hook-type or tension-clamped mounting systems (e.g., 90° side clamps) for quick installation and minimal maintenance effort.

Lightweight (density: 1.32 kg/m³) reduces strain on vibrating equipment, lowering energy consumption by up to 30%.

√ Customizable Solutions

Aperture Sizes: Ranging from 0.1mm to 170mm, with options for square, round, or rectangular holes.

Compatible with all vibrating screen models, including flip-flow and linear motion systems.

Applications:
Mining & Mineral Processing – Screening, grading, and dewatering of ores, coal, sand, and aggregates.
Quarry & Construction – Crushed stone sorting, sand washing, and gravel classification.
Industrial Filtration – Chemical, fertilizer, and pharmaceutical powder separation.
Environmental Projects – Tailings dry discharge, sludge dewatering, and recycling operations.
Infrastructure & Landscaping – Synthetic turf for construction fencing, erosion control, and decorative use.

Customization Service:
We support full customization based on your specific requirements, including:
Aperture size, shape, and layout
Material type and thickness
Dimensions and mounting design
Special patterns (e.g., stepped, ribbed, perforated)
Custom orders can be produced according to provided drawings or samples, ensuring perfect fit and performance for your equipment.

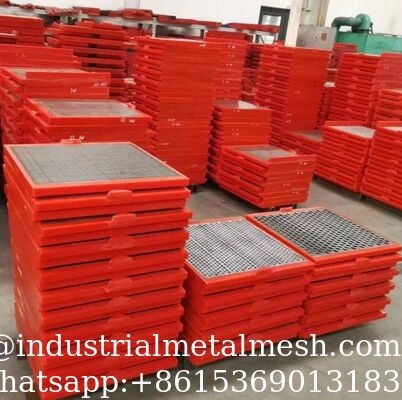

polyurethane screen mesh

polyurethane screen mesh

pu screen mesh
