PU Fine Polyurethane Vibration Screen Mesh for Efficient Screening

PU Fine Polyurethane Vibration Screen Mesh for Efficient Screening
PU Fine Polyurethane Vibration Screen Mesh for Efficient Screening PU Fine Polyurethane Vibration Screen Mesh for Efficient Screening

Large Image :  PU Fine Polyurethane Vibration Screen Mesh for Efficient Screening

Product Details:
Place of Origin: China
Brand Name: qijie
Certification: dewatering screen
Model Number: dewatering screen
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Packaging Details: wood case
Delivery Time: 15-18days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100pcs
Contact Now
Detailed Product Description
Features: Even Mesh, Strong Structure Hole Size: 2.5mm - 130mm
Application: Mining, Quarrying, Mineral Processing Surfacetreatment: Galvanized, Painted, Or Coated
Technic: Woven Mesh Free Sample: Yes
Hook: Hook With Steel Sheet Install: Hooked
Elastic Resilience: 34 Percent Specification: 1.5M*2.0M ； 2M*3M ； 3M*2.5M
Surface Treatment: Galvanized Or Painted. Installationmethod: Bolted Or Hooked Onto Screen Frames
Hole Shape: Rectangle Surface: Natural Powder Coating
Productname: Mining Screen Mesh
Highlight:

PU vibration screen mesh

,

polyurethane mining screen

,

efficient screening mesh

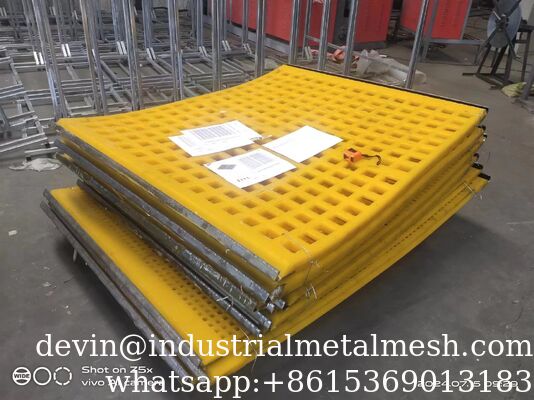

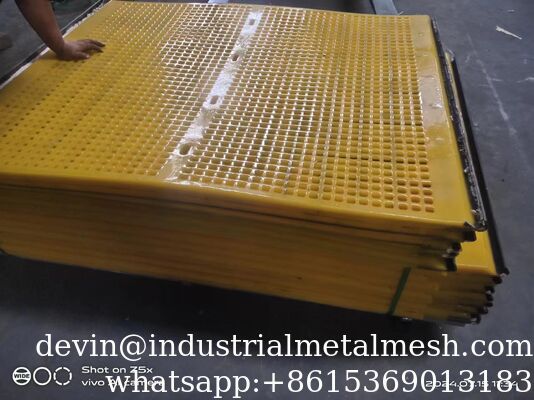

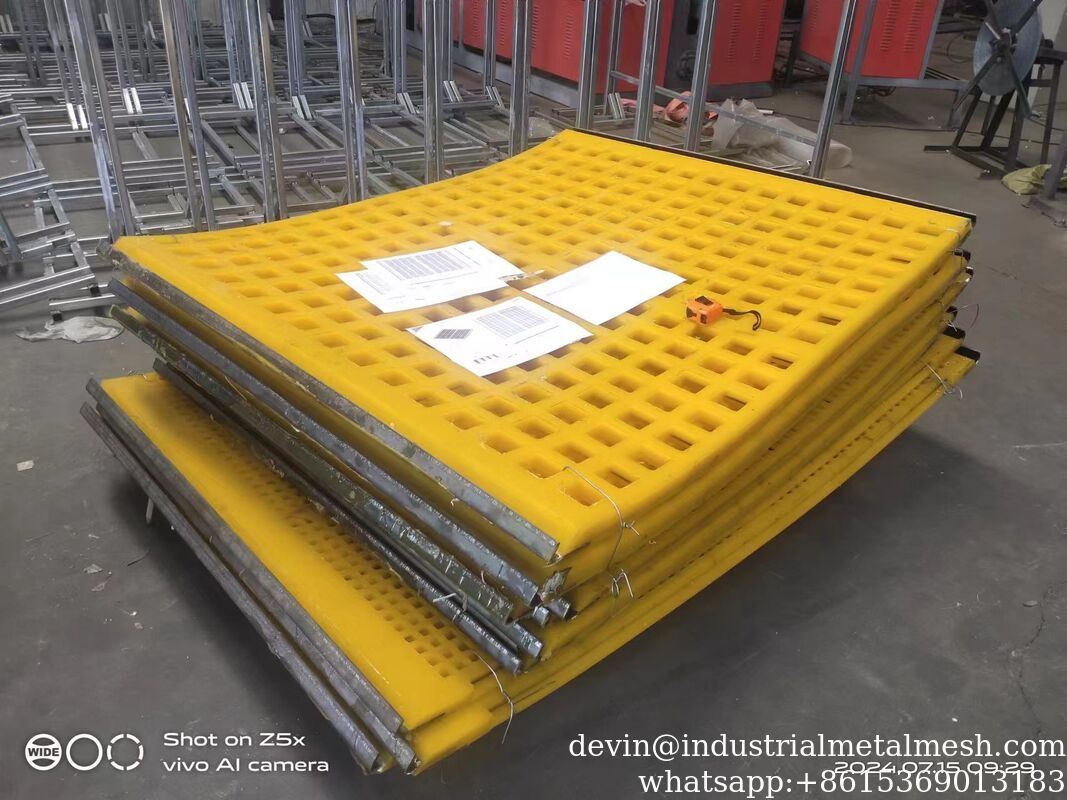

PU Fine Polyurethane Vibration Screen Mesh for Efficient Screening


It is mainly used for stacking high-frequency vibrating fine screens. The width of the screening surface is 0.08, 0.12, 0.15, 0.18, 0.2mm, etc., and the length is 2.56mm. The overall dimensions are 1045x700/1245x700 and so on. Features: long service life, high screening efficiency, no hole blocking, uniform particle size under the screen, oil resistance, water resistance, light weight, easy installation and other features.
Polyurethane fine screen structure:
The screen is formed by a rectangular frame of supporting rib A, and supporting rib B is transversely arranged in the rectangular frame. Supporting rib A and supporting rib B are connected by cross stiffeners. Polyurethane yarn is arranged in the rectangular frame crossed by stiffeners, and the thickness of the polyurethane yarn is 0.1-2mm. There is a gap between every two polyurethane yarns, and the gap is generally 0.1-3mm. Supporting ribs and stiffeners are coated with nylon rope or glass fiber at a time to increase the strength and toughness

Product Parameters



DIMENSION(MM) L*W*H APERTURE(mm)
2400*1500*25 4*4-6*6
2400*1500*25 8*8-12*12
2400*1500*28 15*15-35*35
2400*1500*30 40*40-60*60
2400*1500*40 65*65-90*90
Comparison of polyurethane screen panels and stainless steel screen panels
Compare Projects polyurethane screen panels stainless steel screen panels
Picture Polyurethane Mining Screening Machine Wear-Resistant Fine Vibrating Sieve Mesh Polyurethane Mining Screening Machine Wear-Resistant Fine Vibrating Sieve Mesh
Raw material sources Coal and natural gas are abundant in our country Ni, Cr elements of China's reserves are low
Production method Standardized small parts, high speed production Combing, point-by-point welding
Precision of screen panels High (same high precision mold) general
Screened product quality High (reduced particle fragmentation) general
Corrosion Resistance non-corrosive general
Screening Performance good poor
Hole plugging rate low high
Dehydration and demediating effect good poor
Noise Pollution small big
Inspection and Repair easy general
Wear life long short
Economic low cost high cost
Screen panels opening rate low high
Installation and Maintenance Operating temperature range <90°C Robust for rough handling
Hydrolysis Resistance Able to meet life cycle superior



PU Fine Polyurethane Vibration Screen Mesh for Efficient Screening



PU Fine Polyurethane Vibration Screen Mesh for Efficient Screening
