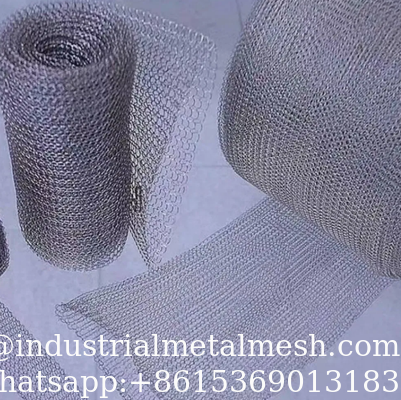

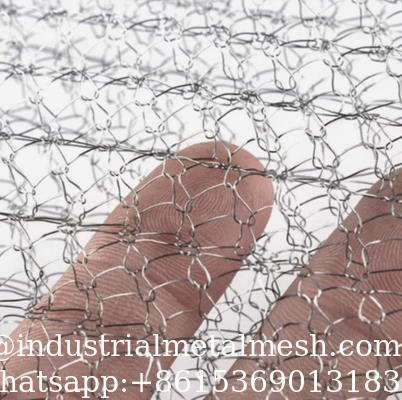

Customizable Stainless Steel Copper Knitted Wire Mesh Screen Filter

Large Image : Customizable Stainless Steel Copper Knitted Wire Mesh Screen Filter

Product Details:

Place of Origin:	CHINA
Brand Name:	QIJIE
Model Number:	filter screen

Payment & Shipping Terms:

Minimum Order Quantity:	200rolls
Price:	USD8/rolls
Packaging Details:	paper carton
Delivery Time:	5-7days
Payment Terms:	TT,LC,
Supply Ability:	1000/pcs

Contact Now

Detailed Product Description

Technique:	Woven	Application:	Filters,Screen,Protecting Mesh
Type:	Weave Wire Mesh,Wire Cloth	Material:	Copper
Wire Diameter:	0.17-0.18mm	Hole Shape:	Omega
Length:	30m	Usage:	Liquid Filter,chmical Industry,oil,filtration,filtering And Sieveing
Packing Dimention:	6.5 X 6.3 X 5 Inches	Weight:	6000g/roll
Email:	Devin@industrialmetalmesh.com	Whatsapp:	+8615369013183
Highlight:	customizable stainless steel wire mesh , copper knitted mesh filter , stainless steel screen filter

Customizable Stainless Steel Copper Knitted Wire Mesh Screen Filter

Knitted Wire Mesh for Gas Liquid Filtration

Knitted wire mesh is a wire mesh woven by special crochet using knitting crochet technology. It is used to produce wire mesh demister, oil-gas separator, air filter, dust filter, gas-liquid automobile seal, shock absorption. Noise reduction, exhaust purification, copper wire, stainless steel wire, nickel alloy wire, polypropylene polyethylene. Wire mesh demisler is a wire mesh block composed of a gas-liquid mixing mesh and a wire mesh gnid. This wire mesh demister can remove liquid foam suspended in the airflow. It is mainly used to separate droplets with a diameter greater than 3mm to 5mm, and is widely used in chemical, petroleum, sulfuric acid, pharmaceutical and environmental protection industries.

Copper Gas Liquid Filter Usages:

(1) Produce of wire mesh demister, mesh mist eliminator, corrosion-resistant filter pad.

(2) Produce of car, tractor air compressor filter

(3) Produce of a variety of gas-liquid separation, gas-water separator, in addition to dust or water

Specifications and feature

1) Knitted wire mesh range: 0.10mm 0.55mm (common wire through is: 0.20mm - 0.25mm) .
2) Hole size: (2 × 3mm) to (4 × 5mm) to the (12 × 6mm) also according to customer requirements on the hole size fine-tuning.
3) The surface condition of the Knitted wire mesh: flat type network surface and pressed into a corrugated bellows-type network
the surface (the width of the corrugations and the depth of different specifications)
4) The width of the range of Knitted wire mesh: 40mm, 80mm, 100mm, 150mm, 200mm, 300mm, 400,500 mm, 600mm, etc.

The standard provides for three types of Knitted wire mesh that standard, efficient and high-penetration

Material	304 316 nickel monel 400 copper wire ,etc
Manufacturer method	Machine knitting
Wire diameter	Round wire: 0.08 mm - 0.5 mm. Flat wire: 0.1 mm x 0.3 mm, 0.1 mm x 0.4 mm, 0.2 mm x4 mm, 0.2 mm x 0.5 mm. Mesh opening: 2 mm x 3 mm, 4 mm x 6 mm to 12 mm x6 mm.
Feature	* High filtration efficiency. * High strength. * Corrosion and rust resistance. * Acid and alkali resistance. * Wide range of application.
Application	Knitted wire mesh is widely used as demister pads for gas and liquid separators. l Knitted wire mesh can be used for cleaning machines, kitchens and other components and parts. l Compressed knitted wire mesh can be installed in the engines to decrease noise and reduce shocks. l Knitted wire mesh can be used as shielding mesh for EMI/RFI shielding.

Stainless Steel Knitted Wire Mesh

Copper Knitted Wire Mesh

304 316 Stainless Steel Knitted Wire Mesh For Gas Liquid Filter Mesh Demister
Mainly used for oil-gas separation filters of various machinery and equipment.
Sealing, damping( shocking proof), silencers and exhaust gas purification components of auto parts.
Electronics and electrical products EMI shielding devices.

Tinned Copper wire mesh Knitted Copper Wire Mesh for Industrial, Bare Knitted Copper Mesh For Electrical Shielding
Round wire compressed knitted mesh.
Flat wire compressed knitted mesh

Typical applications of Demister pad:
●In air pollution control, to eliminate toxic mist from off gases, e.g. Sulphuric acid plants.
●To reduce solvent losses in absorbers, scrubbers, distillation equipment e.g. Amine Treating Systems.
●To minimize product losses in Kettles, Reboilers, Vacum Pans, Crystallizers and Evaporators. e.g. Sugar Crystallization
●To eliminate entrainment in knock-out Drum and Receivers.
●To eliminate entrainment that might damage compressors.
●To supplement equipment like Carbon absorbers and Electrostatic precipitators.
●In Refinery towers to prevent Carbon and Metal Entrainment to Downstream Catalytic Cracker and Reformer units.
●In Liquid-Liquid systems such as Coalescers.
●In Automobile Industry, as protective insert in upholstery, vibration and shock damping, noise and sound reduction.
●In flame and spark extinction, as cross country gas/inflammable product pipelines, furnaces, ovens, vent tanks containing flammable liquids and flare gas systems.
●Sealing - Gaskets made of knitted wire mesh having different degree of re-silences - e.g. in cable industry, radiation, shielding, automobile and computer industry.

Wire Mesh Foam Remover Materials(wire mesh demister )
