Product Details:
Payment & Shipping Terms:
|
| Diameter: | 500mm | Material: | Stainless Steel Rod |
|---|---|---|---|
| Slot (mm): | 0.010, 0.015, 0.02, 0.05 | Length (mm): | 50~6000 |
| High Light: | 321 stainless steel wedge wire screen,sgs stainless steel wedge wire screen,500mm dia stainless steel wedge wire |
||

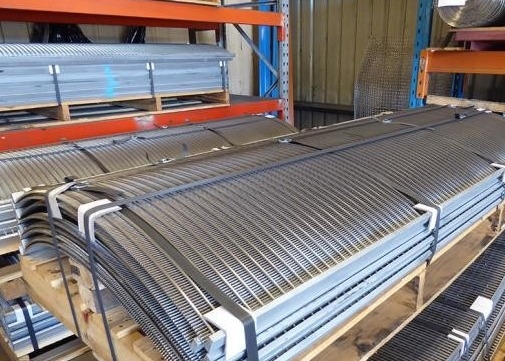

Wedge Wire Screen Johnson Welding Screen Panel
Wedge wire screen Johnson welding screen panel is a mechanical self-cleaning device that was developed to meet the growing need and demand for an efficient and economical method of removing suspended solids from mixed liquid streams. The continuous and self-cleaning effect of the rotating screens makes it possible to use higher flow capacities than those of any other type of screen thus resulting in substantial savings with respect to both investment and maintenance.

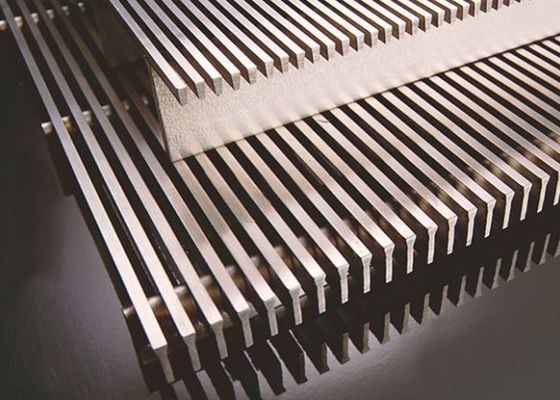

Wedge wire is known as profile wire screen, V- wire screen, and wedge wire screen. And it is created by wrapping a profile wire cylindrical around longitudinal placed support rods. All wires and rods are resistance welded at each point of contact. The numerous combinations of profile wires and support rods, and the wide range of apertures between the wires and rods allows us to design a screen according your technical or cosmetic specification. It is custom made for the application.
We manufacture all kind shapes of wedge wires
Welded Wedge Wire Screen, Flat Wedge Screen Panel, Water Well Screen, Wire screen, Vibrating Sieve Screen, V- wire Screen, Sieve Bend Screen, Screen Support Grids, Wedge Wire for Mine. Its products sell well in over 30 countries and regions of Europe, America, Asia and Africa. We have excellent equipments, perfect crafts line, scientific inspection skill. Every product is strictly inspected according to its international standard.

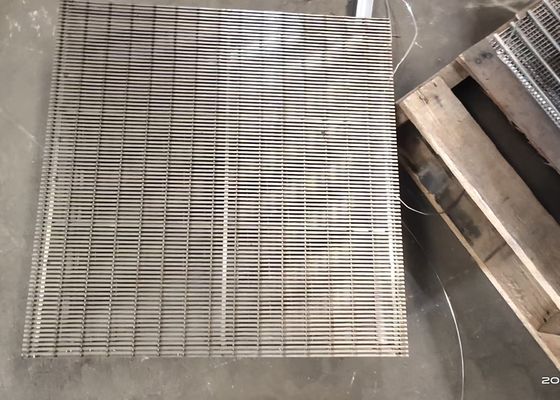

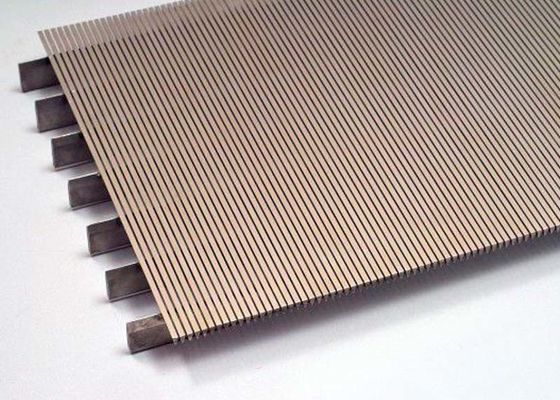

Each intersection of the wedge wire and support rod is welded. Various wedge wire & support rod combinations are available to produce the best design for your application.
Characteristic of Wedge wire screen Johnson welding screen panel
1.) Wedge wire screen style isn't easy to be locked
2.) Due to the different pressure between inside from outside, it could be very easy to clean the plugging material.
3.) We are eager for long-terms cooperative parters, our factory promise the best quality to have a high filtering accuracy, high strength, and durability
4.) We have the most advanced equipment and the most professional workers, so totally could be as per customer's drawing to produce new styles.
Application of Wedge wire screen Johnson welding screen panel
The wedge wire screen Johnson welding screen panels are used in the chemical industry, sieving of petroleum, pharmaceutics, metallurgy, and coal, food and beverage, also can be used in filtration of water treatment. Flat welded screens are the most popular mining screen due to their strength.
Specifications of Wedge wire screen Johnson welding screen panel:
| Material | SS304, SS304L, SS316, SS316L, SS321, Duplex, Hastelloy, etc | ||||||
| Length Range | Up to 6000mm | ||||||
| Width Range | Up to 6000mm | ||||||
| Slot Range | 20 micron to 3000 microns (Tolerance:+-5 micron) | ||||||
| Other Shapes | Could cut to any shape according to requirements, such as round, semicircle, sector, and so on. | ||||||
| Wedge Wire | 0.5x1.5 | 0.75x1.5 | 1x2 | 1.5x2 | 2x3 | 2x4 | 3x5 |
| Support Rod | 1.5x2.52x3 | 1.5x2.52x3 | 1.5x2.52x3 | 1.8x2.52x3 | 2x32x43x53x63x104x7 | 2x43x53x63x104x75x6 | 3x53x63x104x75x65x8 |
| End Finishing | With the frame, without any frame, according to request. | ||||||
| Note |
Customized According To Requirement |
||||||
