Product Details:
Payment & Shipping Terms:
|
| Material: | Polyurethane | Use: | Anti-clogging |
|---|---|---|---|
| Brand: | Qijie | Modle: | Declogging Rod |
| High Light: | Polyurethane Declogging Rods,Declogging Rods Anti Clogging,Corrosion Resistant Declogging Rods |
||

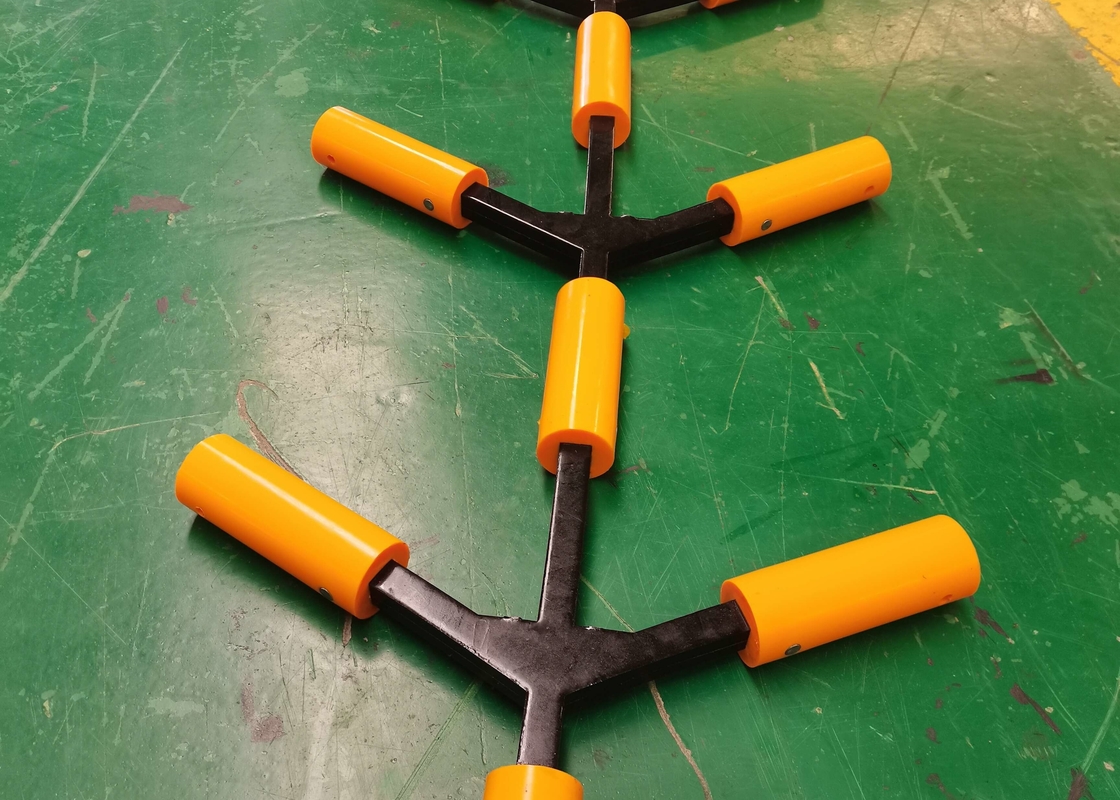

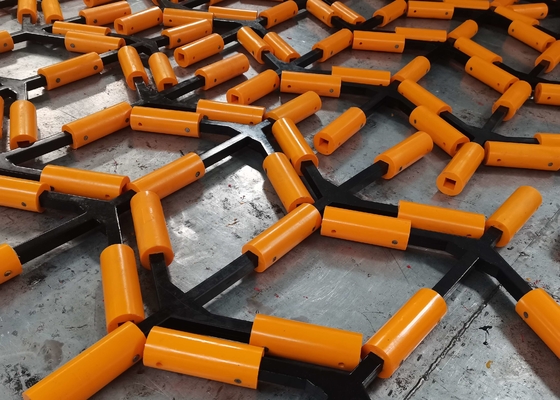

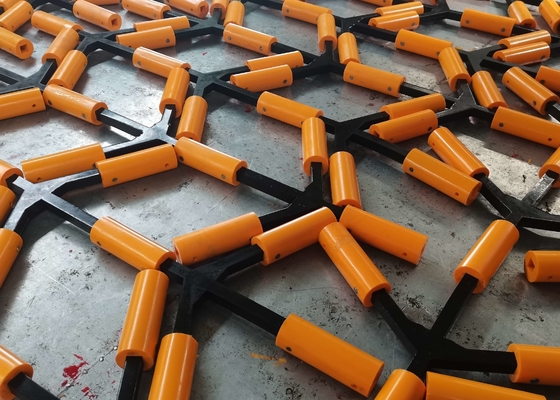

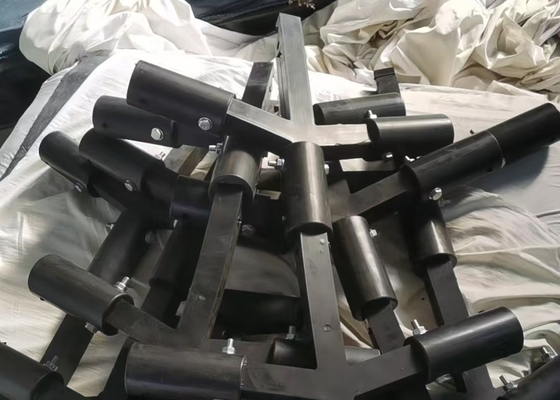

Declogging Rods | Polyurethane Declogging Rods
Anti-Blinding Rods are elastic polyurethane rods that are fixed to the screen and have been developed to further improve the self-cleaning properties of anti-clogging screens. Anti-Blinding Rods use the machine’s vibration to move and bounce on the surface of the mesh that helps to shake off stubborn sticky material from the panels; therefore avoiding particles wedging and blinding the screen. They can be connected in multiple parts to completely cover the screen area. They trail over the top of your mesh and bounce up and down with the vibration of the screen, as a result knocking off the material that is causing the issues.
PU declogging rods are elastic polyurethane rods that are fixed to the screen. They use the machine’s vibration to move and bounce on the surface of the mesh, therefore avoiding particles wedging and blinding the screen. The self-assembly three pronged rods are fixed together with pins and also configured to cover all, or part of your screenbox depending on where the blinding worse. They trail over the top of your mesh and bounce up and down with the vibration of the screen, as a result knocking off the material that is causing the issues.
BENEFITS:
These components fix together with pins and configured to cover part or all of your screenbox. They sit atop individual screens, or alternatively cover the entire area. In addition, different separators widths are available, fixing places vary, as a result this product highly customisable. The table below is designed as a guide only, contact us for more information, our sales staff will be happy to advise you further.
| Screen length | Components |
|---|---|
| Up to 1500 | 1 fixed rod and 2 mobile rods |
| Up to 2000 | 1 fixed rod and 3 mobile rods |
| Up to 2500 | 1 fixed rod and 4 mobile rods |
| Up to 3000 | 1 fixed rod and 5 mobile rods |
| Up to 3500 | 1 fixed rod and 6 mobile rods |
| Up to 4000 | 1 fixed rod and 7 mobile rods |
| Up to 4500 | 1 fixed rod and 8 mobile rods |
| Screen width | Components |
|---|---|
| Up to 1000 | 1 declogging rod |
| 1000 ÷ 1500 | 2 declogging rod |
| 1500 ÷ 2000 | 3 declogging rod |
NOTE – To avoid tangling of separate declogging rods, they are joined using separators according to the number of mobile rods. In addition, we don’t recommend use when screening with metallic meshes with wire diameters smaller than 2.5mm.
polyurethane declogging rods
polyurethane declogging rods
