| Material: | Manganese Steel | Wire Diameter: | 6.0 Mm |
|---|---|---|---|
| Hole Shape: | Rectangle | Weaving Type: | Plain Weave |
| Technic: | Woven Mesh | Tensile Strength: | 800 - 1000 MPa |
| High Light: | 304 Stainless Steel Vibrating Screen Mesh,Crimped Steel Vibrating Screen Mesh,65Mn Steel Vibrating Screen Mesh |
||

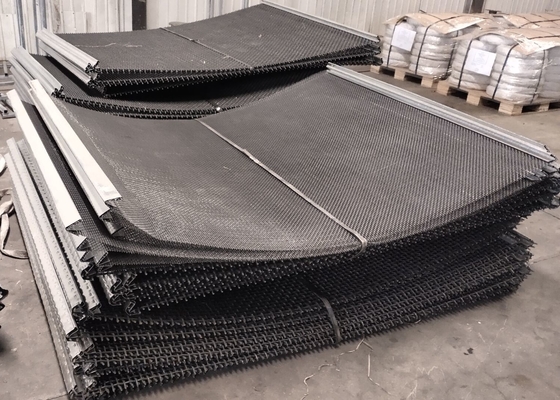

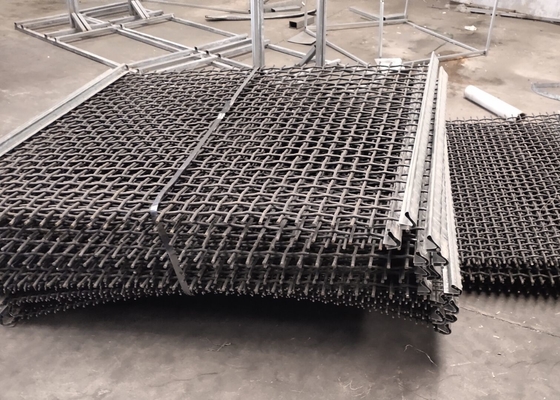

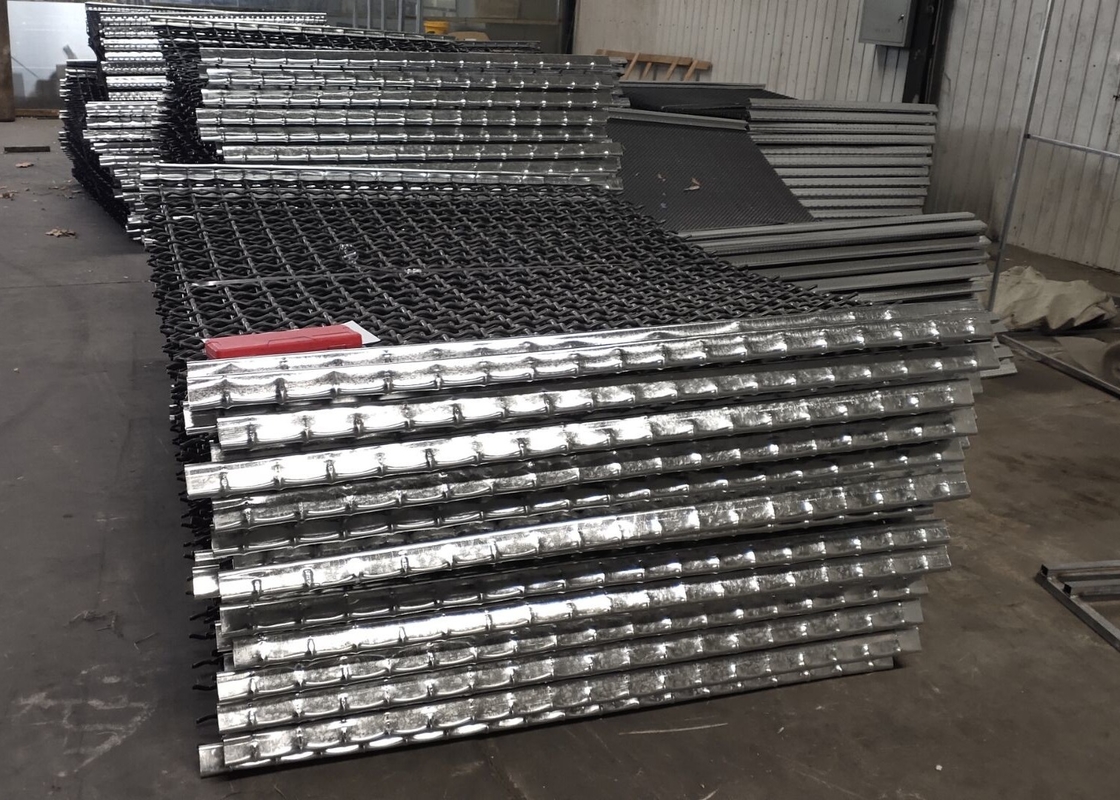

65Mn Steel 304 Stainless Steel Crimped Steel Vibrating Screen Mesh
we are engaged in manufacturing and exporting a premium range of Steel Vibrating Screen Mesh. All these products are manufactured using topmost quality raw material which is sourced from the trusted vendors. The offered range of screen is mostly used in cement, sugar, paper, coal and mining industries. These Vibratory Screen Mesh are very light in weight and easy to handle. Our patrons can avail these products at moderate prices from the market.
Crimped trommel screen mesh is made of high tensile carbon steel wire, spring steel wire and stainless steel wire. They have various wire diameters and hole sizes. Different hole type and edges can fit for almost all the trommel screen machines. Also, the crimped trommel screen mesh is the most popular and widely used type.
Specification
| Chemical sheet of the main material | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Steel Grade | Chemical Composition (%) | ||||||||
| China (GB - YG) | USA (AISI) | C | Mn | Si | S | P | Cr | Cu | Ni |
| # 45 | 1045 | 0.42 - 0.50 | 0.50 - 0.80 | 0.17 - 0.37 | ≤ 0.035 | ≤ 0.035 | ≤ 0.25 | ≤ 0.25 | ≤ 0.30 |
| # 50 | 1050 | 0.47 - 0.55 | 0.50 - 0.80 | 0.17 - 0.37 | ≤ 0.035 | ≤ 0.035 | ≤ 0.25 | ≤ 0.25 | ≤ 0.30 |
| # 55 | 1055 | 0.52 - 0.60 | 0.50 - 0.80 | 0.17 - 0.37 | ≤ 0.035 | ≤ 0.035 | ≤ 0.25 | ≤ 0.25 | ≤ 0.30 |
| # 60 | 1060 | 0.57 - 0.65 | 0.50 - 0.80 | 0.17 - 0.37 | ≤ 0.035 | ≤ 0.035 | ≤ 0.25 | ≤ 0.25 | ≤ 0.30 |
| # 70 | 1070 | 0.67 - 0.75 | 0.50 - 0.80 | 0.17 - 0.37 | ≤ 0.035 | ≤ 0.035 | ≤ 0.25 | ≤ 0.25 | ≤ 0.30 |
| 65 Mn | 1566 | 0.62 - 0.70 | 0.50 - 0.80 | 0.17 - 0.37 | ≤ 0.035 | ≤ 0.035 | ≤ 0.25 | ≤ 0.25 | ≤ 0.30 |
Features:
» The screens are designed to bear heavy loads
» Highly resistant to vibrations and shocks
» These are highly damage resistant
» Coated for long term protection against corrosion
» Durable in quality, these screens have excellent dimensional tolerance
» Stringently tested for their finishing and strength
» Acclaimed among clients for their excellent abrasion resistance
Applications
Woven vibrating screen mesh can be used as screen deck in quarry screen and crusher screen to separate and sort stone, sand, gravel, coal, rock and other materials. It is widely used in the large scale stone processing, asphalt mixing plants, coal, metallurgy, chemical and other industries.
