Factory Price Galvanized Steel Welded Bending Fence 3D Curved Metal Welded Wire Mesh
Product descriptions

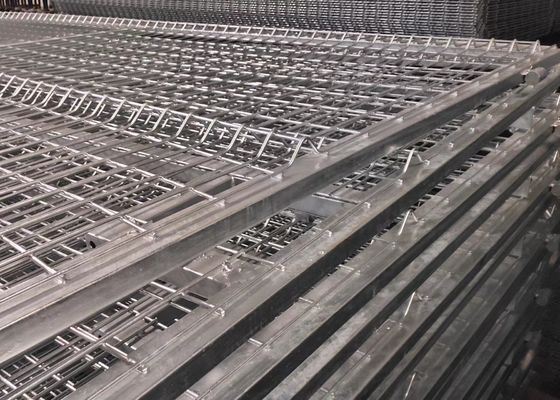

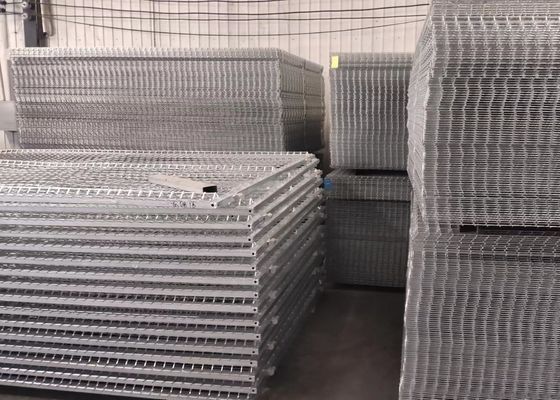

Curvy welded fences a kind of specially designed welded wire mesh with V-shaped bending curves in its longitudinal direction.
It is made of high quality carbon steel wires where wires in the horizontal and vertical direction are welded at their junctions to provide a rigid wire mesh fence.
3D guardrail has the characteristics of high strength, good rigidity, beautiful appearance, wide field of vision, convenient installation, and good anti-theft effect, which ensures the safety of the fence.
It is well suitable for a wide range of application, for example for enclosing commercial grounds,lawn and road.It is also a good choice for airports,secure units and prisons.
High Anti-Corrosion:
Using high quality iron rod as raw material, the welded panel, after galvanization, powders primer, and powders top coating, it can resist the corrosive and ultraviolet radiation very strongly.
| Surface Treatment | Min. | Max. |
| Electric Gal. | 20/m2 | 60g/m2 |
| Hot dipped Gal. | 35g/m2 | 700g/m2 |
| Powders Sprayed coating | 100 microns | 120 microns |
| PVC/PE dipped coating | 400 microns | 600 microns |
Popular Specification:
| Height | 630,830,1030,1230,1430,1530,1630,1730,1830,1930,2030,2230,2430mm | ||||
| Width | 2000mm,2500mm,2900mm | ||||
| Wire diameter | 3.0mm,3.5mm,4.0mm,4.5mm,5.0mm | ||||
| Mesh opening | 50×100mm,50×150mm,50×200mm,75×100mm etc | ||||
| Clamp | metal rain cap / anti-UV PP plastic clamp/no clamp | ||||
| Post | round post(48OD×1.5/2.0mm,60OD×1.5/2.0mm) square post(50×50×1.5/2.0mm,60×60×1.5/2.0mm,80×80×1.5/2.0mm) rectangular post(40 × 60 × 1.5/2.0 mm, 40 × 80 × 1.5/2.0 mm, 60 × 80 × 1.5/2.0 mm, 80 × 100 × 1.5/2.0 mm) |
||||
| Post clamp | metal rain cap / anti-UV plastic cap | ||||
All colors are available in Ral;
Other materials and specifications are available upon request.
The main components and connection methods of our curvy welded fence are as shown below.
|
|
|
|
|
|
Features of 3D security fence
Range of application:
Enclosing:
Road and transit(highway, railway, road, city transit)
Science & Industry Zone(factory, industry zone, sightseeing zone, new pattern farm)
Private grounds(courtyard, villadom)
Public grounds(park, zoo, train or bus station, lawn)
Commercial grounds(corporation, hotel, supermarket)
Packing
1.Fence Panel Packing:
Metal pallet with plastic frim packing strips
1>There is a piece of plastic film(with small bubbles)The first panel can be prevented from damaging the metal pallet2>Metal plate is fixed at each corner of the panelswhich can keep the panels stay together and immovable3> The wood plate on the panels can prevent the last panel from being damaged by top pallet

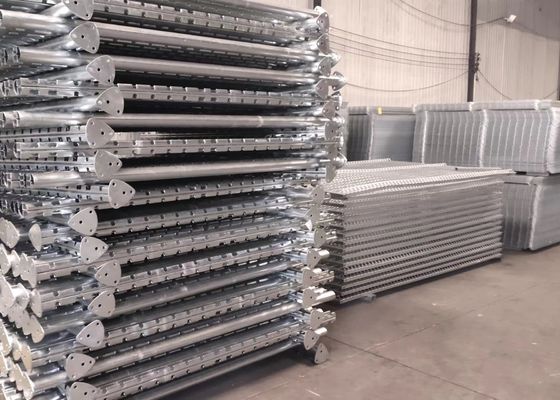

2.Posts Packing:
the pole with a cap is covered by plastic film,then packaged by metal paliet
3.Accessories Packing:Box
Application:
|
|
|
|
|
|
Barbe Arm for Fencing
Barbe Arm for Fencing
Perimeter Coated Welded Wire Fence Steel-P0005
Perimeter Coated Welded Wire Fence Steel-P0006
