Product Details:
Payment & Shipping Terms:
|
| Design Style: | Contemporary | Frame Material: | Metal |
|---|---|---|---|
| Metal Type:: | Iron | Frame Finishing: | Pvc Coated |
| Feature: | Easily Assembled | Usage: | Garden Fence, Highway Fence, Sport Fence, Farm Fence |
| Type: | Security Fence, Fence Gates | Service: | Instruction Book, Video Of Installation, Product Marketing |
| Product Name: | Steel Fence | Size: | 1.5*2m |
| Wire Diameter: | 4mm | Mesh Size: | 60*60mm |
| High Light: | 4mm curved iron fence,50x200mm curved iron fence,square post curved metal fence |
||

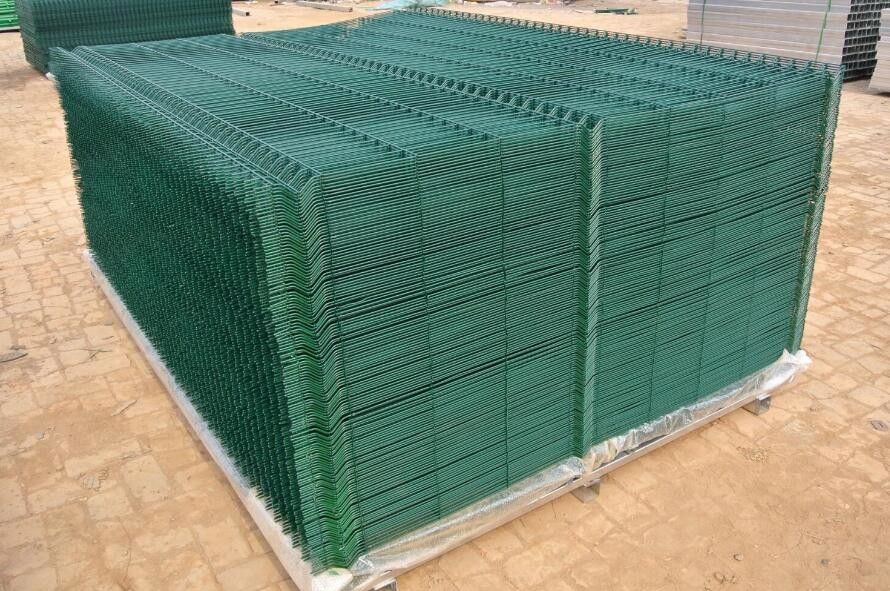

3D Curved Wire Mesh Fence Panel is a kind of welded steel wire mesh. It is made of high quality low carbon steel wire, galvanized steel wire and metal column connected. 3D guardrail has the characteristics of high strength, good rigidity, beautiful appearance, wide field of vision, convenient installation, and good anti-theft effect, which ensures the safety of the fence.
| Specification of Triangle Bend Fence | |||||||
| Mesh Opening | Wire Thickness | Panel Width | Panel Height | Number of Folds | Post Type | ||
| 50x100mm 50x150mm 50x200mm 55x200mm 75x150mm etc. |
3.0mm or 3.5mm or 4.0mm or 4.50mm or 5.00mm |
2.0m or 2.50m or 2.9m |
630mm | 2 | Round Post 48x1.5/2.0mm 60x1.5/2.0mm |
Square Post(SHS) 50X50x1.5/2.0mm 60x60x1.5/2.0mm 80x80x1.5/2.0mm |
Rectangular Post(RHS) 40x60x1.5/2.0mm 40x80x1.5/2.0mm 60x80x1.5/2.0mm 80x100x1.5/2.0mm |
| 830mm | 2 | ||||||
| 1030mm | 2 | ||||||
| 1230mm | 2 | ||||||
| 1430mm | 2 | ||||||
| 1530mm | 3 | ||||||
| 1630mm | 3 | ||||||
| 1730mm | 3 | ||||||
| 1830mm | 3 | ||||||
| 1930mm | 3 | ||||||
| 2030mm | 4 | ||||||
| 2230mm | 4 | ||||||
| 2430mm | 4 | ||||||
| Height (m) | Width (m) | Curves | Clamps |
| 1.0 | 2.5 | 2 | 2 |
| 1.5 | 2.5 | 3 | 3 |
| 2 | 2.5 | 4 | 4 |
| 2.5 | 2.5 | 5 | 5 |
| 3 | 2.5 | 6 | 6 |
Accessories:
Application:
Triangle bend fence is a type of welded wire mesh which has V-shaped strengthen bending curves. Triangle bend fence is made of high quality low carbon steel wire, galvanized wire. Then will be hot dipped galvanized,powder coated or pvc coated.Triangle bend fence looks modern and attractive.
Mainly used for security protection in construction site, residential building, sports field, arehouse, highway or airport service area, railway station, etc.
